P0403

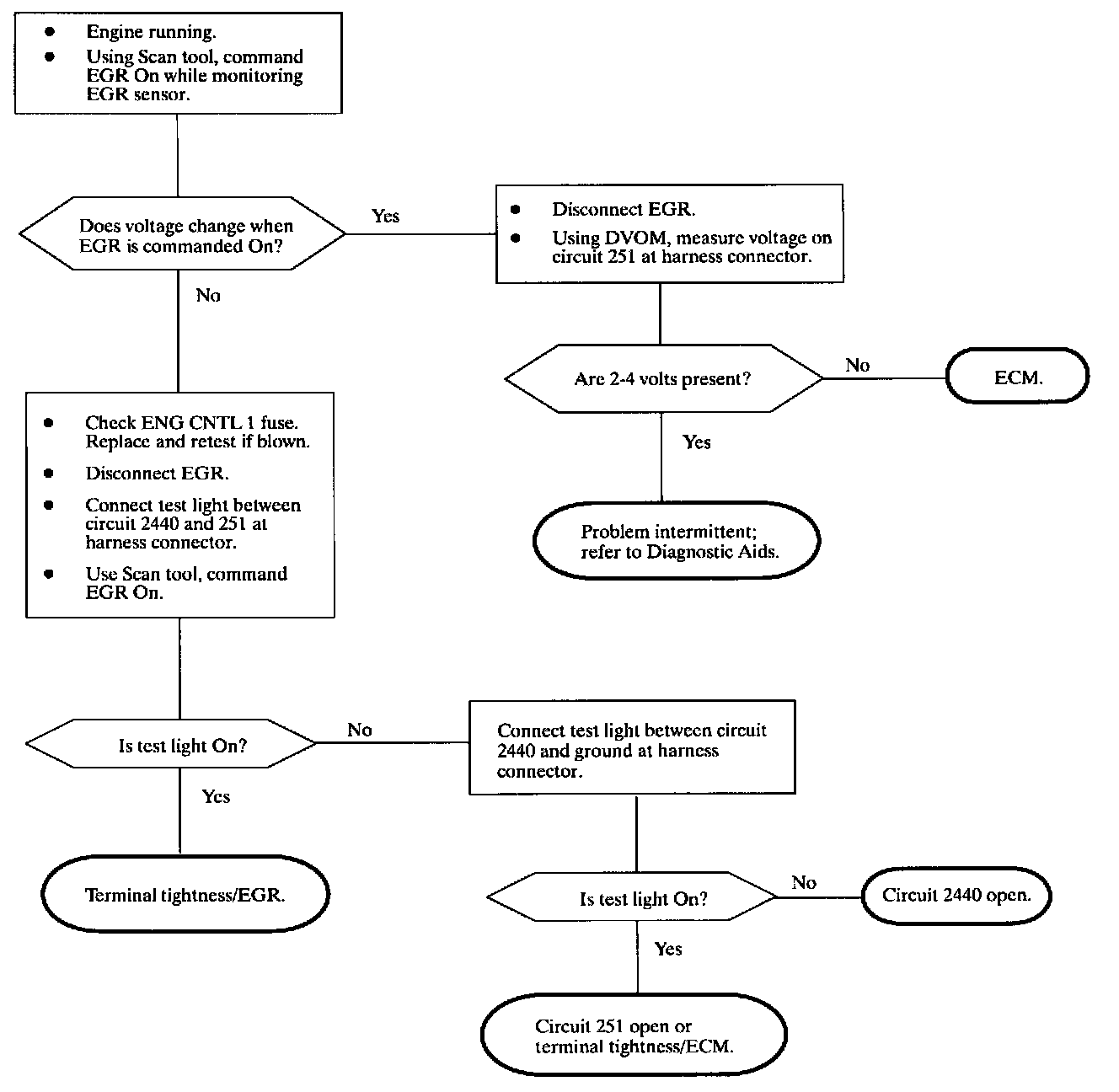

Diagnostic Chart:

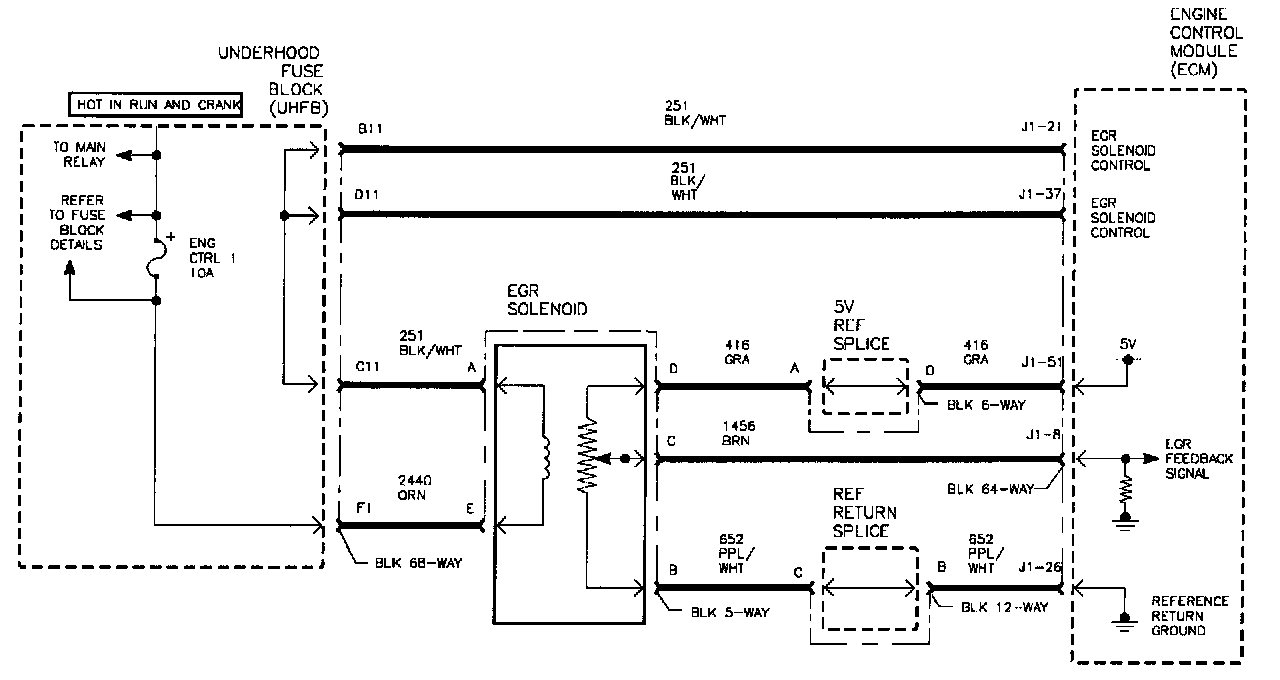

Schematics:

The Exhaust Gas Recirculation (EGR) solenoid and pintle valve assembly serve to reduce the temperature of combustion by introducing non-volatile exhaust gas into the combustion chambers. The voltage on the EGR solenoid signal wire should be between 0 and 5 volts. The voltage is monitored continuously. If the ECM determines that no signal is being received, this code will set.

DTC PARAMETERS
DTC P0403 will set when:
^ Engine Speed less than 40 rpm
^ Battery Voltage between 7.5 and 15 volts
^ Condition exists for 500 milliseconds

IMPORTANT: The EGR valve may operate at any engine coolant temperature regardless of loop status.

DTC P0403 is a (type B) DTC.

DIAGNOSTIC AIDS
To locate an intermittent problem, use the Scan tool to monitor the actual EGR position.

Wiggling wires while monitoring the actual EGR position may locate the area where an open exists.
^ Check for backed out or damaged electrical terminals.
^ Check the tightness of the female terminal grip with a spare male terminal.
