P0222

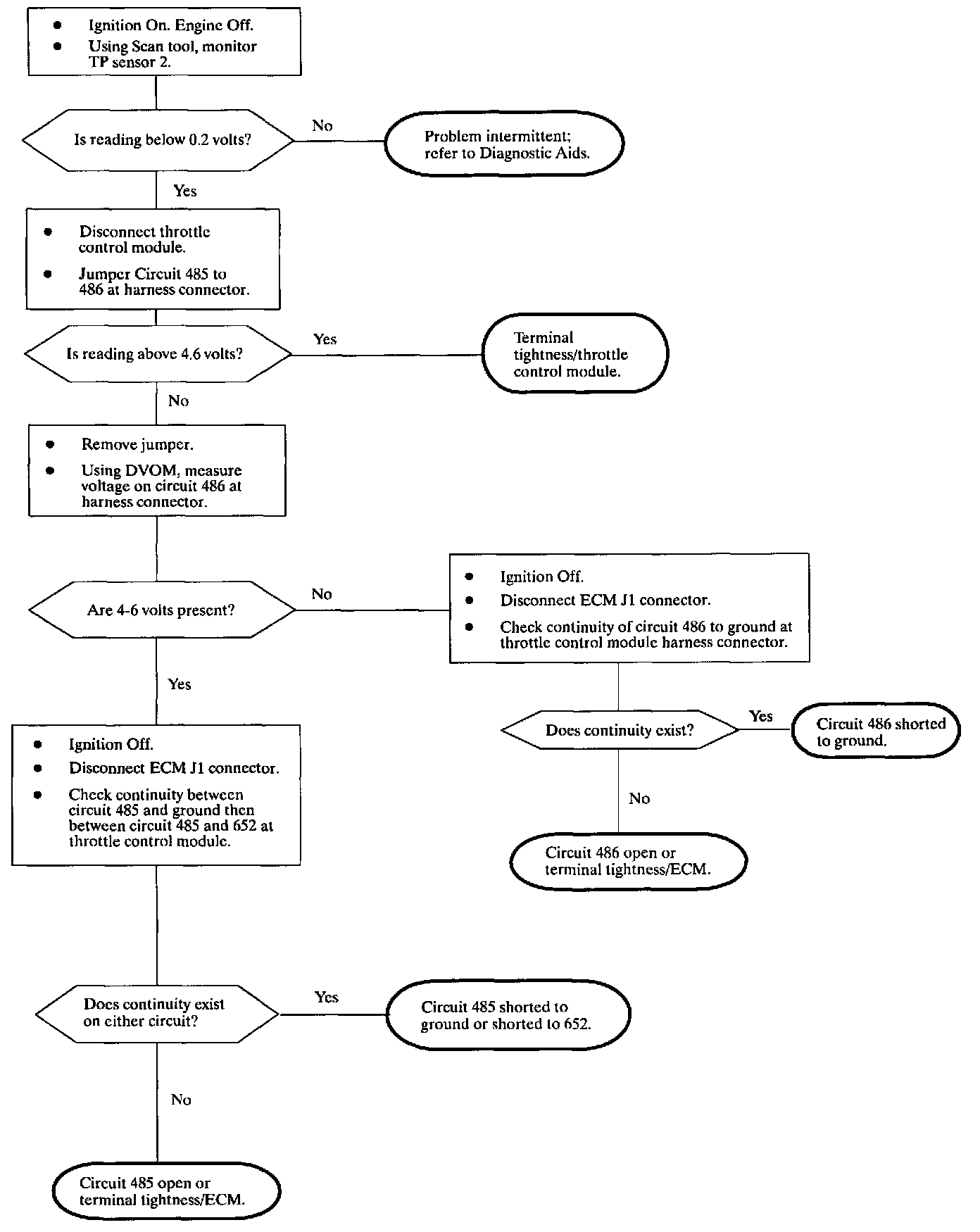

Diagnostic Chart:

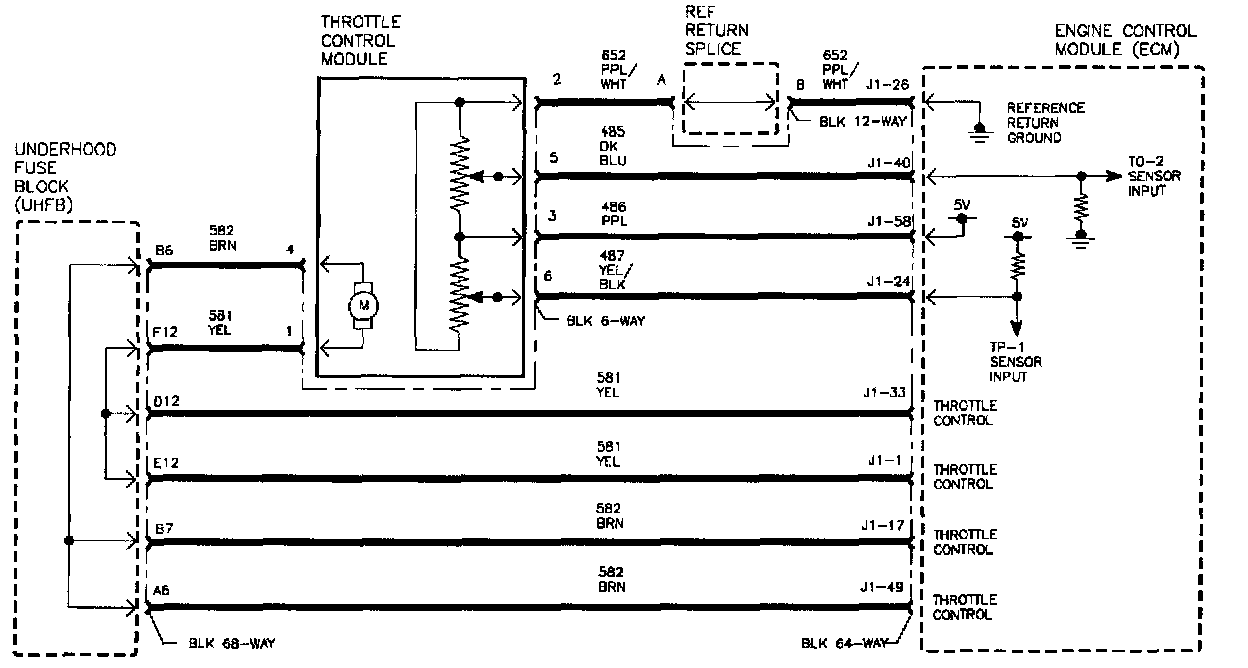

Schematic:

The Throttle Position (TP) sensor is mounted on the throttle body assembly. The sensor is comprised of two potentiometers with common supply and ground circuits, and independent signal circuits. As the throttle opens, the signal wire on sensor 1 reads a higher voltage, and the voltage on signal wire for sensor 2 decreases. The ECM sets this DTC when the signal being received is lower than expected.

DTC PARAMETERS
This DTC will set when:
^ TPS 2 voltage is less than 0.2 volts
^ Above condition met for longer than 1400 ms

DTC P0222 is a (type A) DTC

DIAGNOSTIC AIDS
To locate an intermittent problem use Scan tool to monitor TPS 2 voltage with engine running.

Wiggling wires while monitoring TPS 2 voltage may locate area where short to ground may exist.

Possible causes:
^ Poor connections.
Check for adequate terminal tension.
^ Corrosion
^ Rubbed through wire insulation.
^ Water intrusion into connectors.
