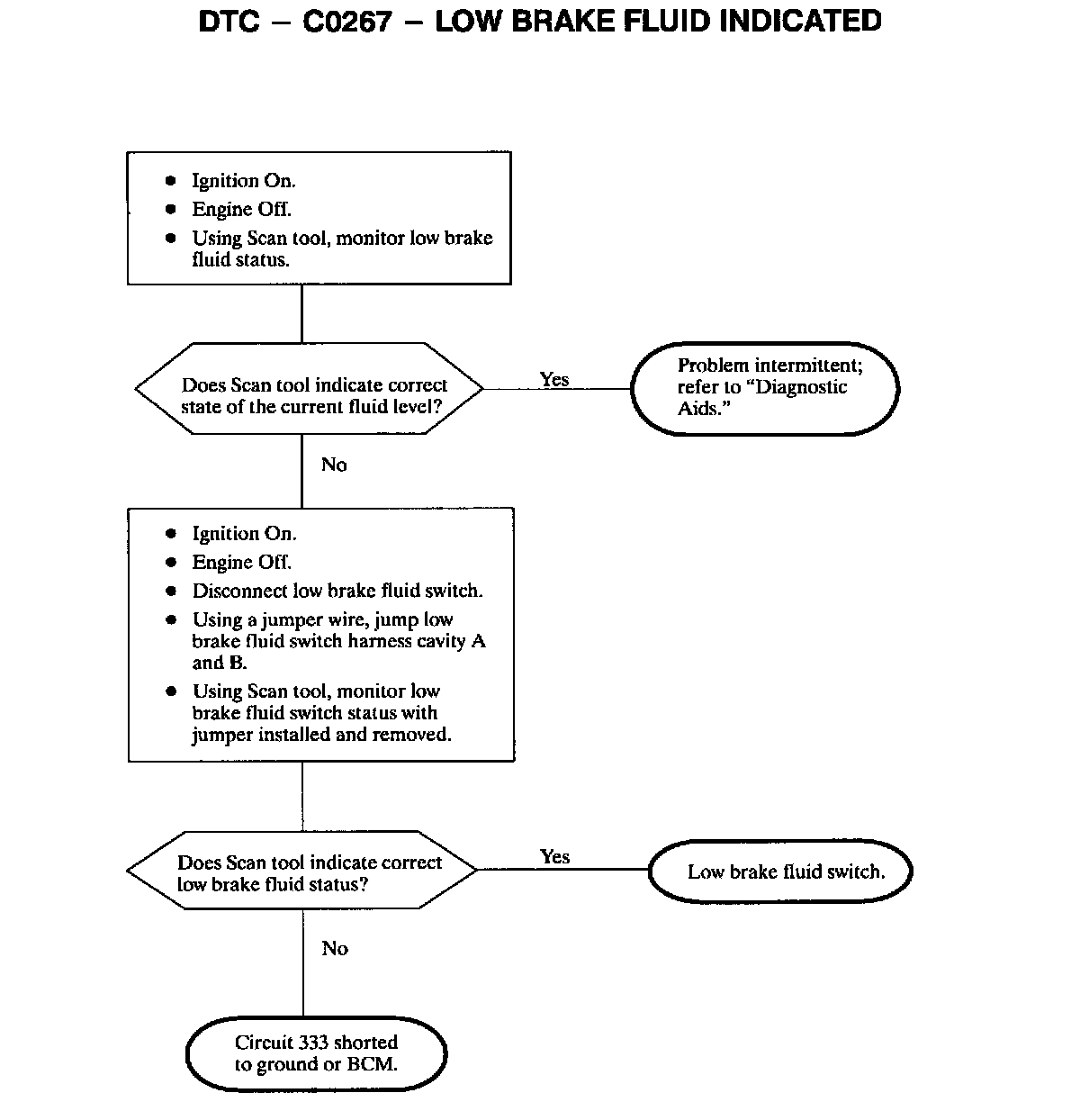

C0267

CIRCUIT DESCRIPTION

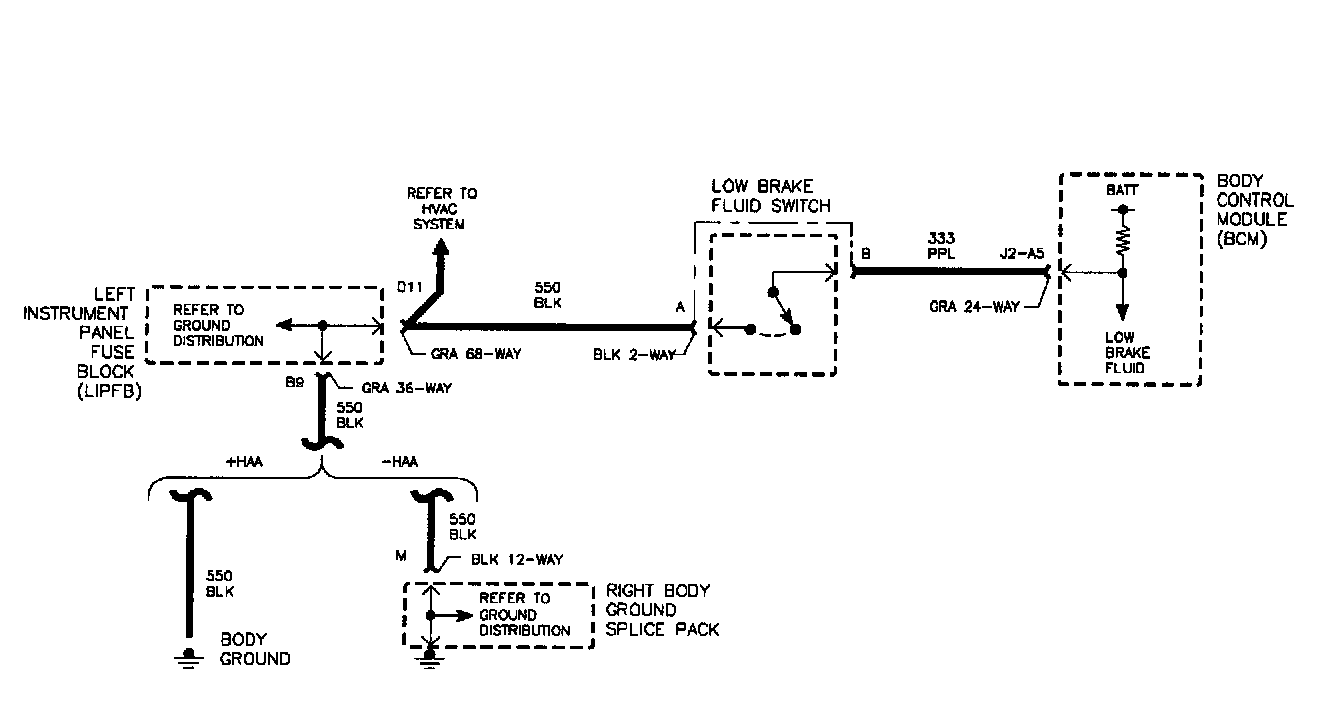

Under low brake fluid conditions, the brake fluid switch closes. When closed, the brake fluid switch grounds (circuit 333, BCM cavity J2-A5). The body control module (13CM) responds by sending a serial data message to the instrument panel cluster (IPC) to turn On the brake telltale lamp.

DTC SET CONDITIONS
^ Ignition switch in RUN position
^ Circuit 333, BCM cavity J2-A5 grounded

DIAGNOSTIC AIDS
^ Inspect wiring harness for damage. Check for broken or chaffed insulation.
^ If fault is suspected to be intermittent, wiggling harness wiring may help in locating fault.
