B3031

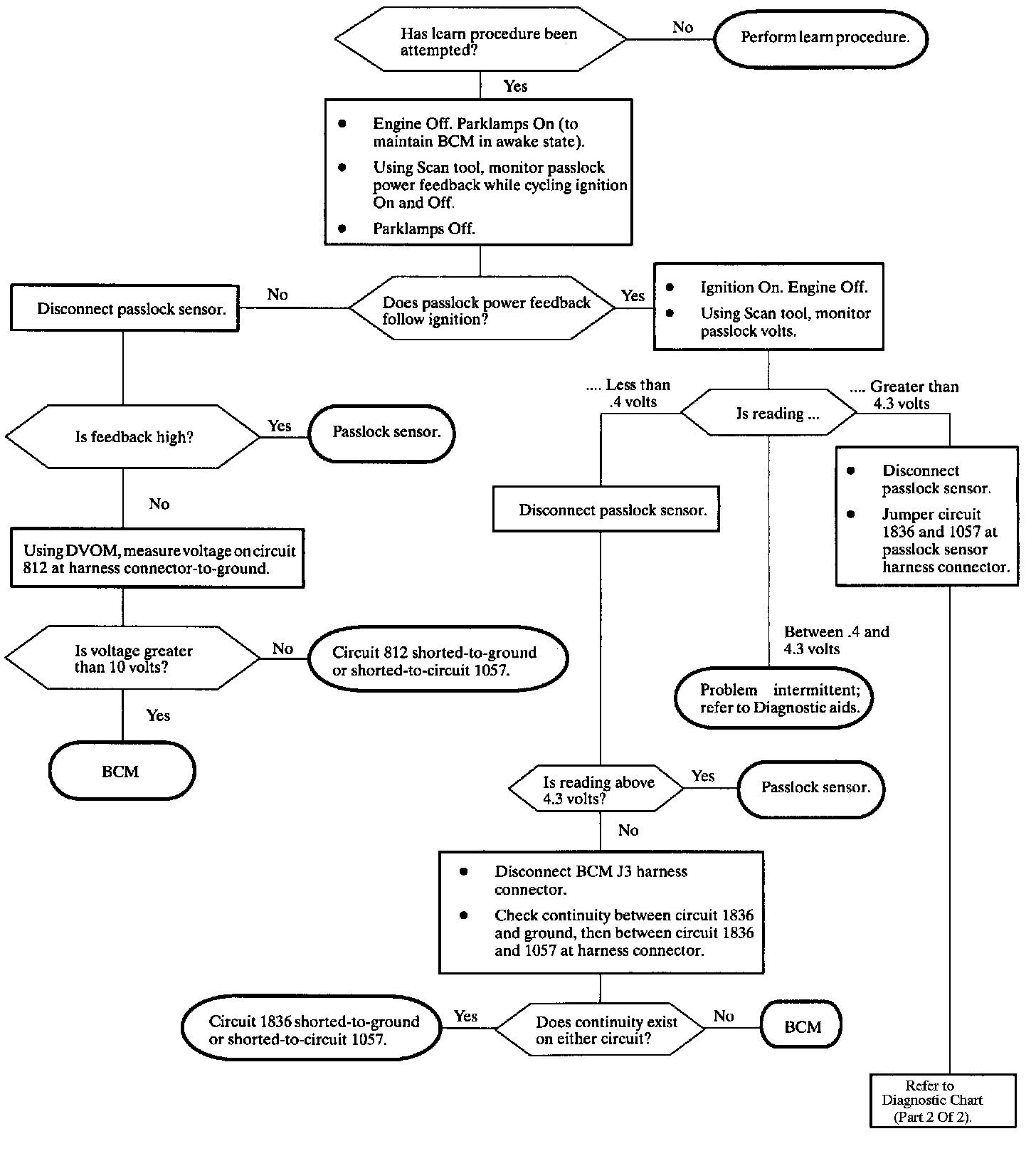

Diagnostic Chart (Part 1 Of 2):

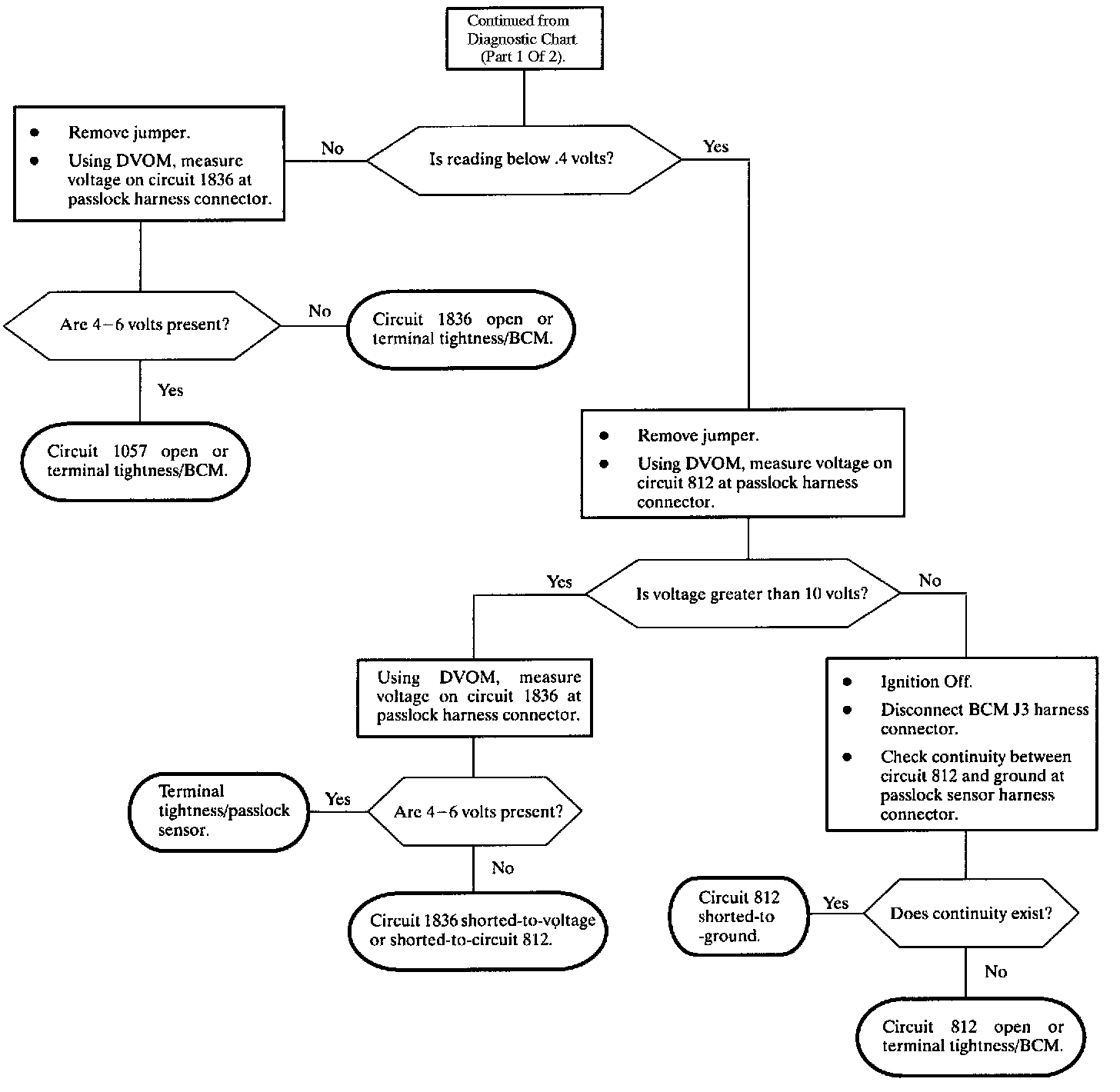

Diagnostic Chart (Part 2 Of 2):

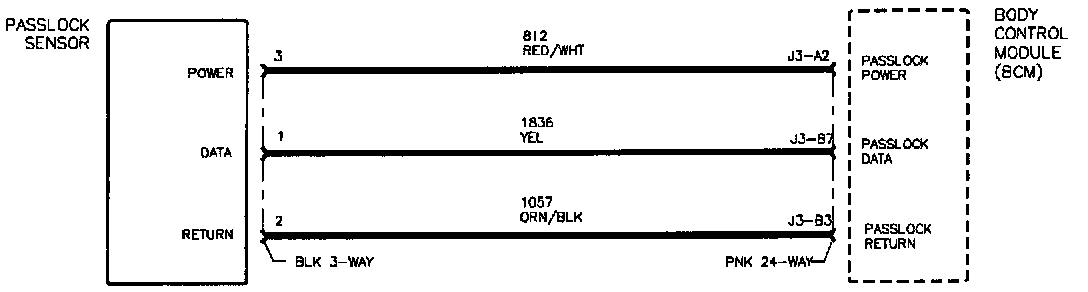

Schematic:

Passlock sensor data is supplied to the body control module (BCM) by circuit 1836.

The passlock sensor data supplied to the BCM is in the form of V-codes or voltage codes. When the proper ignition key is turned in the ignition switch, the correct V-code is supplied to the BCM. The BCM responds by sending a serial data password to the engine controller allowing the engine to run.

If the BCM has not learned a V-code, DTC B3031 will be set. The vehicle will not start.

DTC Parameters
^ Ignition is in RUN, START or ACC
^ The BCM has not learned a valid V-code
