B0828

TRACTION CONTROL SYSTEM OFF INDICATOR CIRCUIT HIGH
When the traction control system is in the "ON" state, the traction control LED (Light Emitting Diode) request from the EBTCM (Electronic Brake Traction Control Module) to the BCM (Body Control Module) circuit 832 is at battery voltage. In response, the BCM grounds circuit 1660. This action turns "ON" the traction LED indicating to the driver the traction control system is able to control wheel slip.
When the traction control system is in the "OFF" state, the traction control LED request from the EBTCM to the BCM circuit 832 is switched to ground. In response, the BCM switches "OFF" the traction control LED indicating to the driver the traction control system has been disabled.

CODE PARAMETERS
^ Ignition in "RUN" position
^ Traction control system is commanded "OFF"
^ Circuit 1660 is shorted to ground

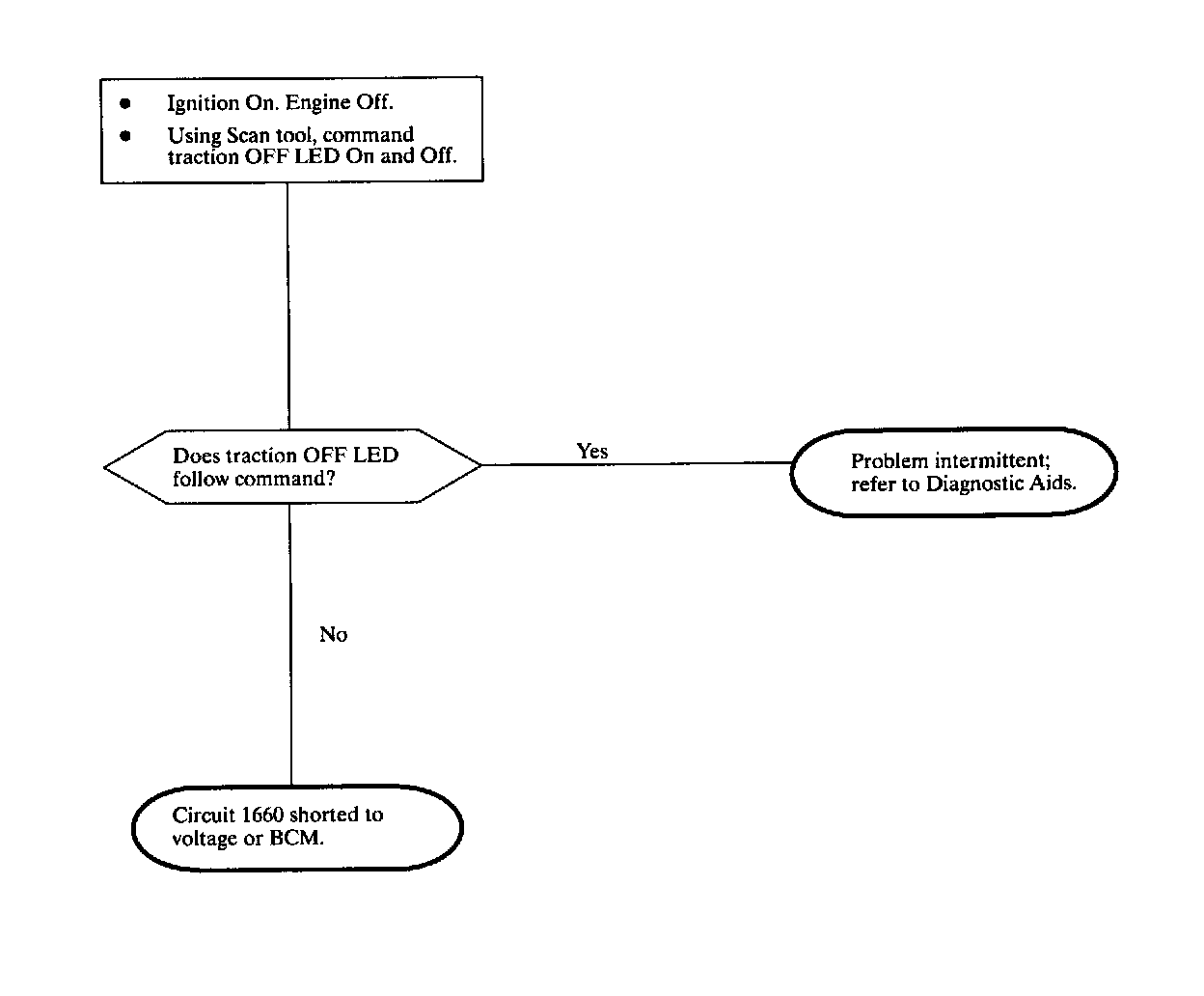

DIAGNOSTIC AIDS
^ Inspect wiring harness for damage. Check for broken or chaffed insulation.
^ If fault is suspected to be intermittent, wiggling harness wiring may help in locating fault.
