Manual Transaxle Diagnostic Chart - MP2/MP3 Manual Transaxle

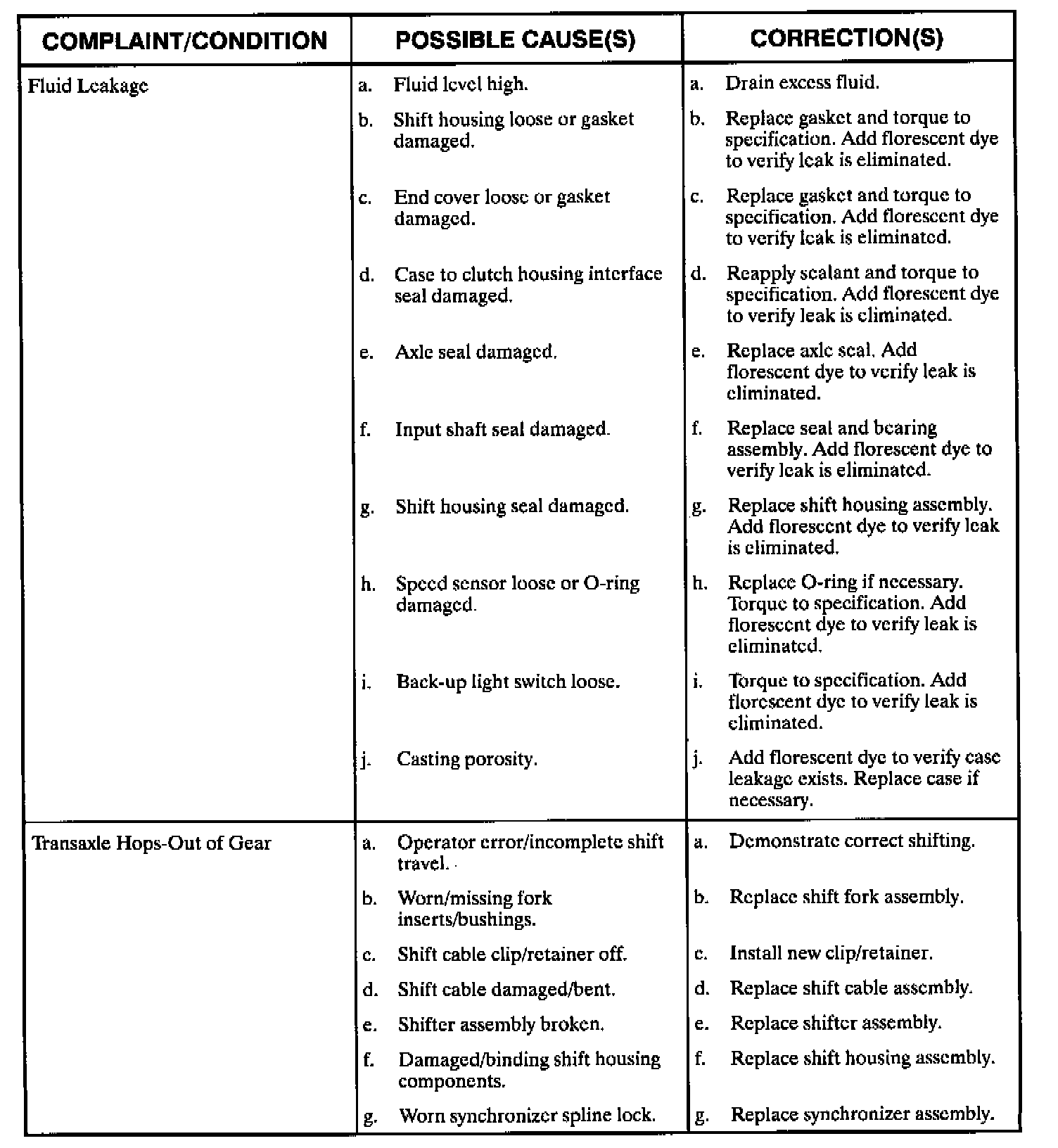

Part 1 Of 4:

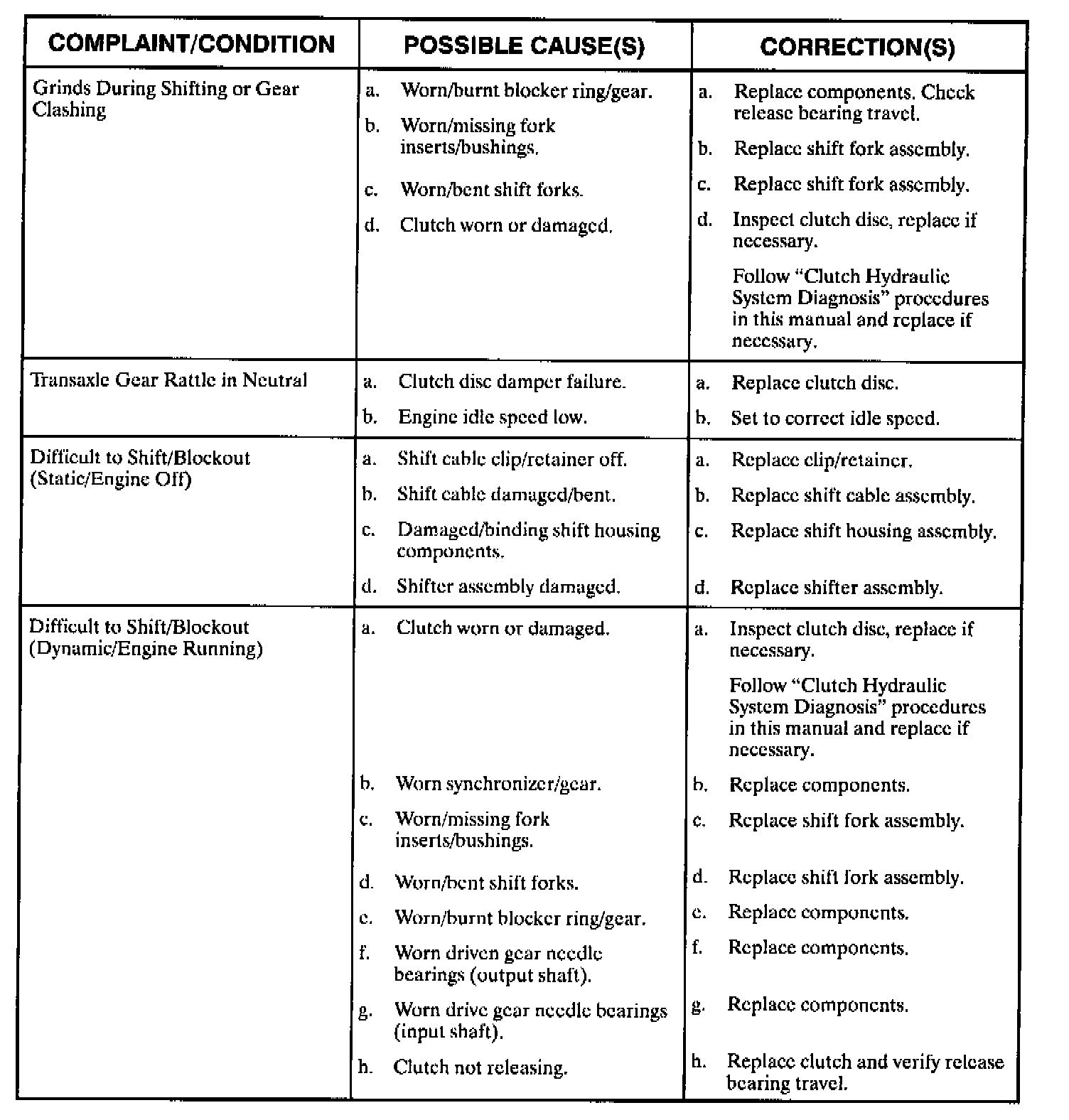

Part 2 Of 4:

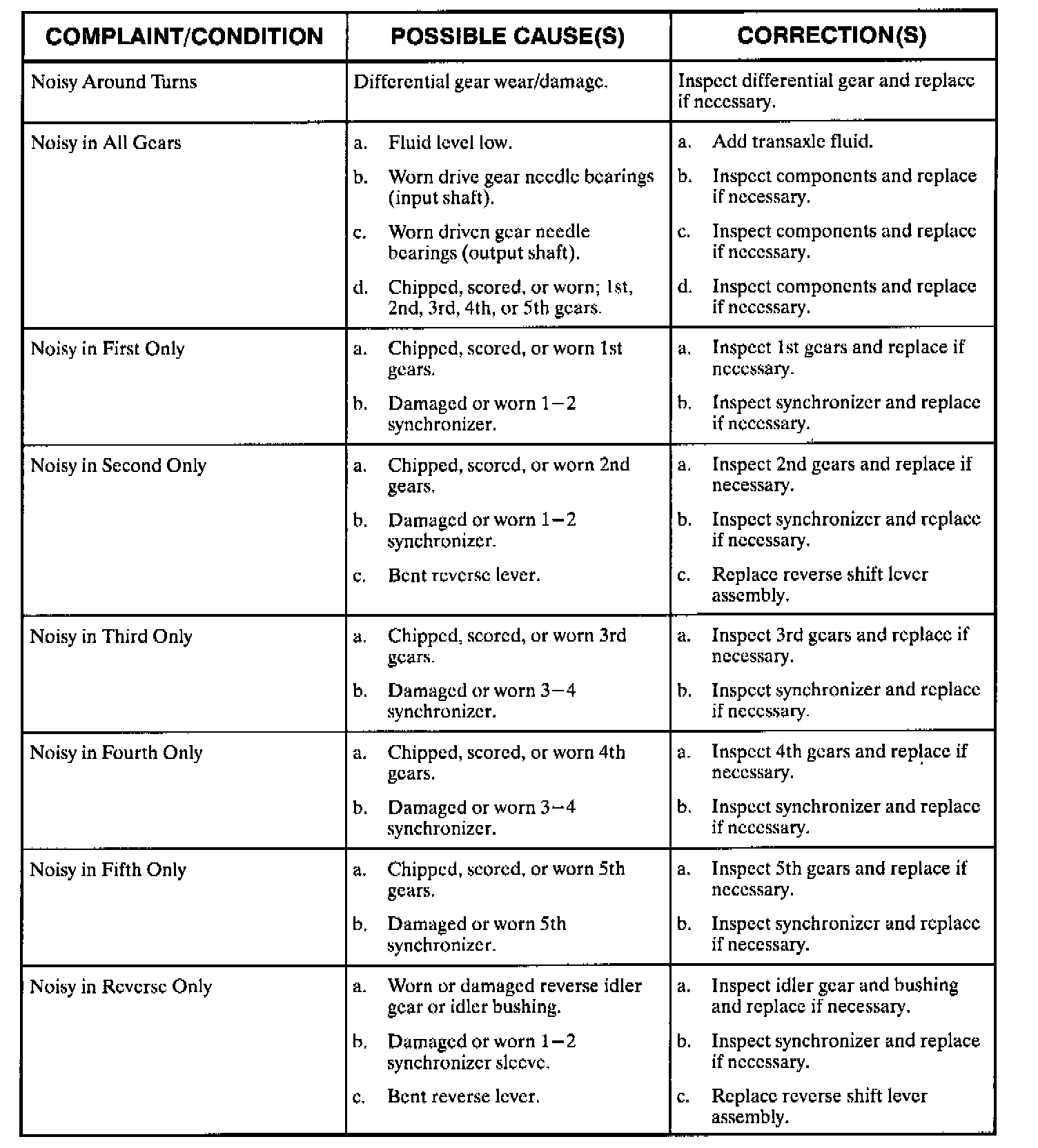

Part 3 Of 4:



Part 4 Of 4:
