Input Shaft Roller (Quill) Bearing Removal

NOTICE: The clutch housing must be supported from underneath when pressing out the input shaft roller bearing. If the clutch housing is not supported, the housing may collapse.





1. Install support fixture SA9129T with manual transaxle adapter pad 216916 to clutch housing. After bolting to housing, tighten the large center screw until the adapter pad is snug against the housing.

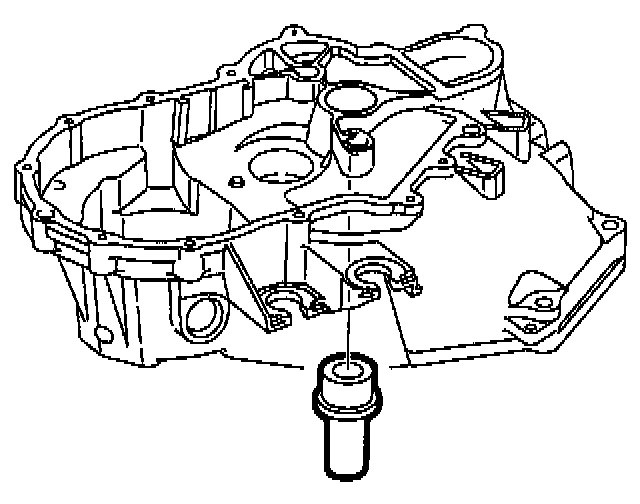

2. Place clutch housing on a press and install SA9128T bearing remover into bearing and press out bearing.
