Home >> Saturn >> 1999 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> In-Vehicle Service >> Vehicle Speed Sensor >> Removal

Removal





1. Position vehicle on lift and raise vehicle.

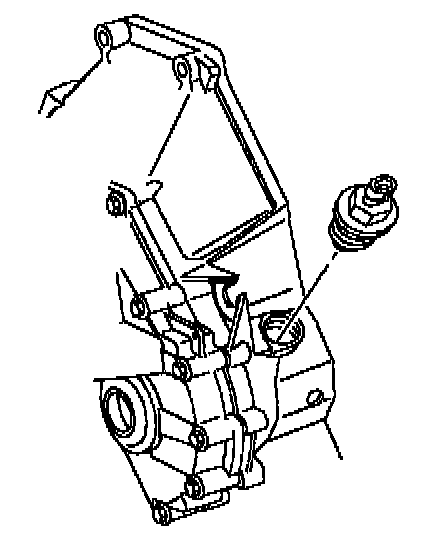

2. Disconnect electrical connector from speed sensor and remove sensor.
