Back Up Light Switch
>>
Removal
Removal
1.

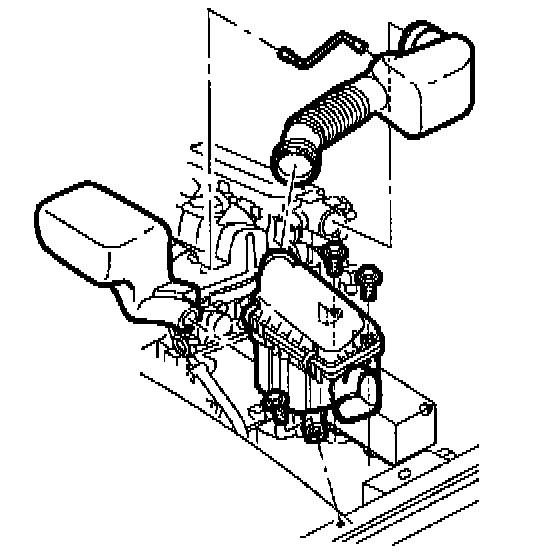

Remove air induction system. [Double Overhead Cam
(DOHC)
shown, Single Overhead Camshaft
(SOHC)
similar.]
2.
Disconnect electrical connector.
3.

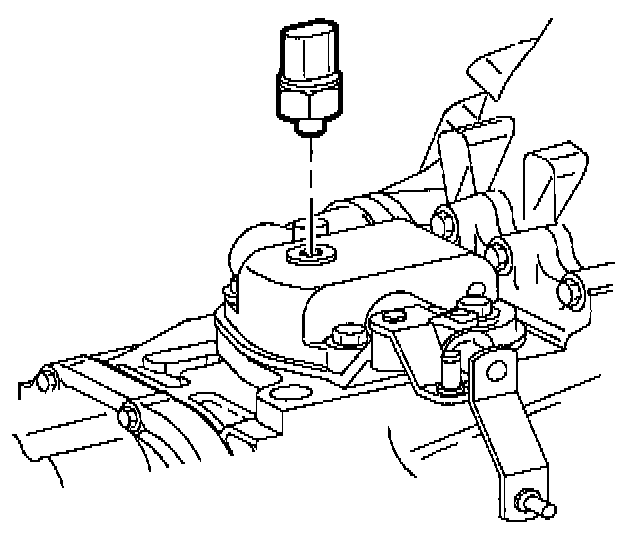

Remove switch.
