Pressure Ports-Air Check

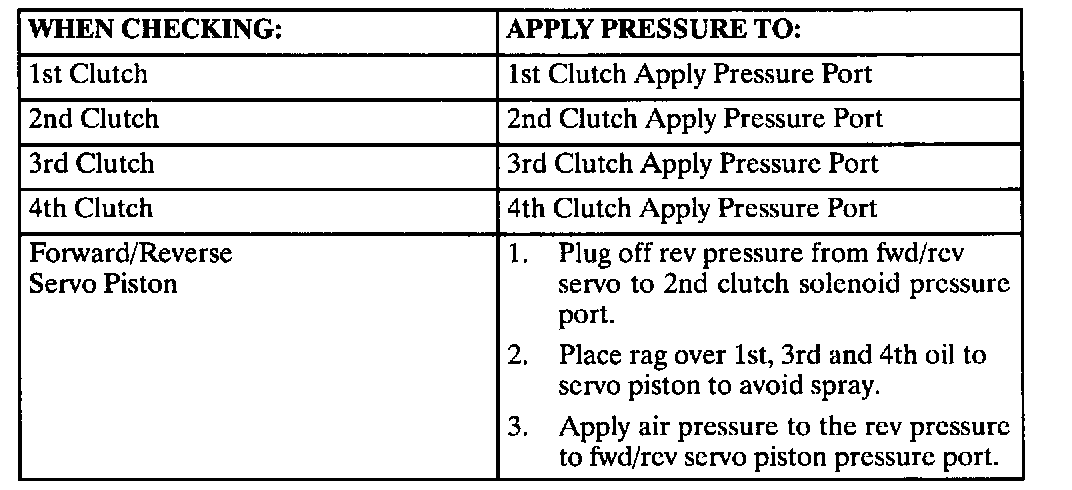

To air check a clutch, apply compressed air to the corresponding pressure port with a rubber nozzle air gun.
