Saturn
>>
1999
>>
SC2 L4-1.9L DOHC VIN 7
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Service and Repair
>>
Stop Lamp Switch
>>
Removal
Removal
1.
Disconnect negative battery cable.
2.

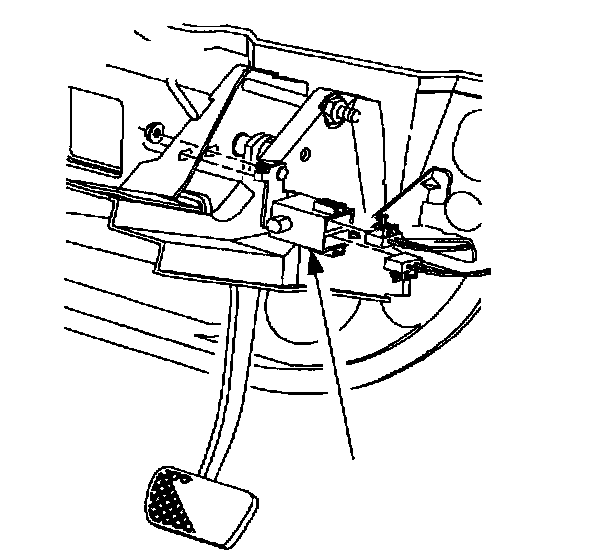

Disconnect electrical connector to brake switch. (Arrow denotes brake switch.)
3.
Remove bolt from brake switch and remove brake switch.
