Input Shaft Speed Sensor
>>
Removal
Removal
1.
Position vehicle on lift and raise vehicle.
2.

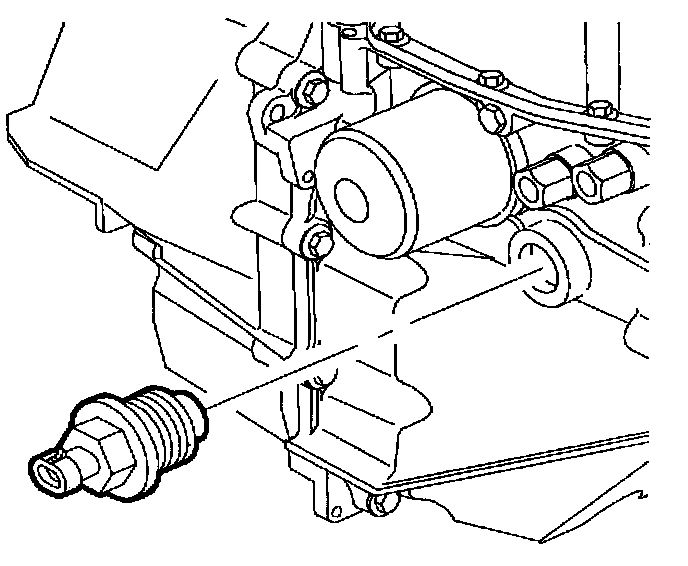

Disconnect electrical connector from Input Shaft Speed
(ISS)
sensor and remove sensor.
IMPORTANT:
Inspect O-ring for damage and replace if necessary.
