4. Transaxle Pump Disassembly

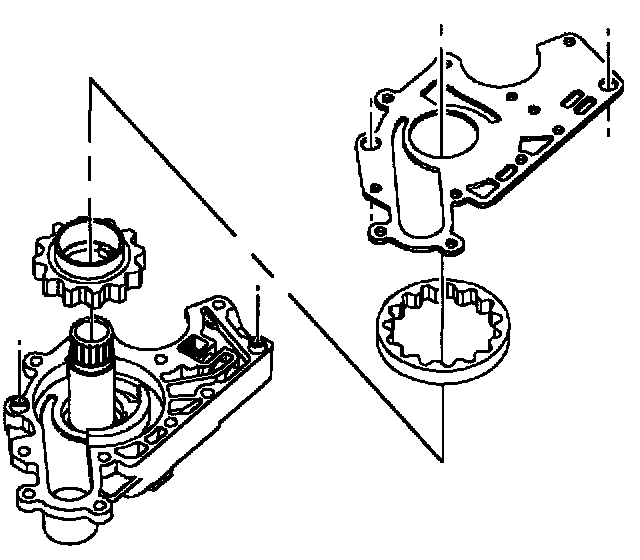

1. Remove pump wear plate. If cracks or excessive scoring is evident, replace component.

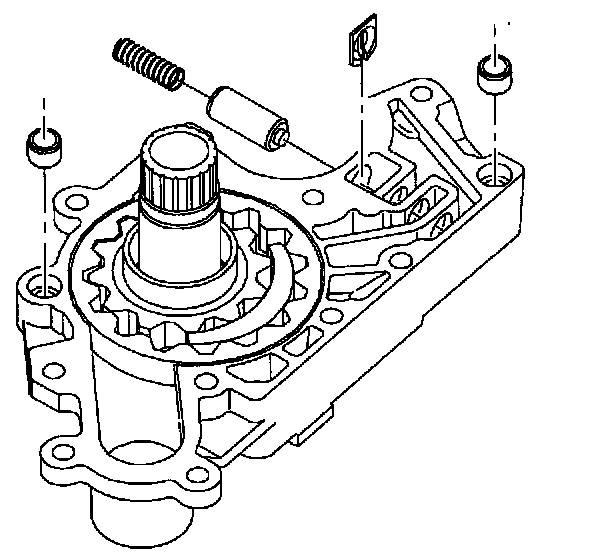

2. Remove spring retainer, spring, and lube relief valve. If spring is broken or lube relief valve is scored, replace component(s).





3. Remove pump driven gear.
4. Remove pump drive gear.
