Enabling the SIR System

1. Turn ignition switch to LOCK position and remove key.





2. Connect yellow two-way SIR connector at the base of steering column and install connector position assurance (CPA) device to connector.

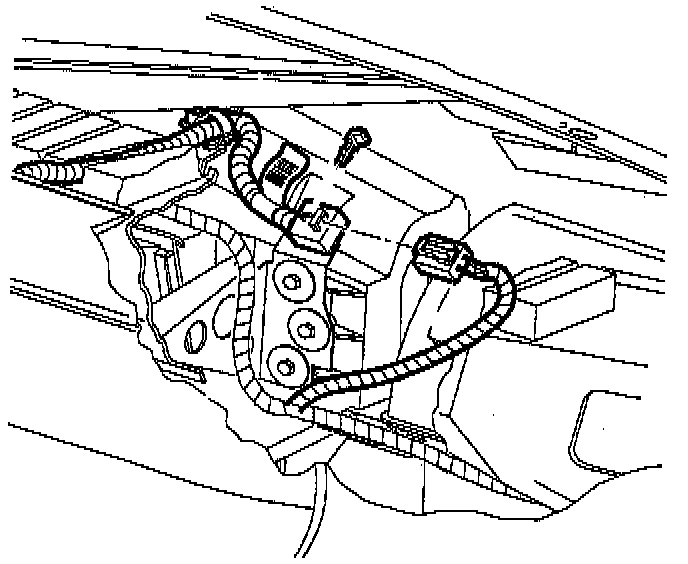

3. Connect yellow two-way passenger inflator module pigtail and install CPA device to connector.

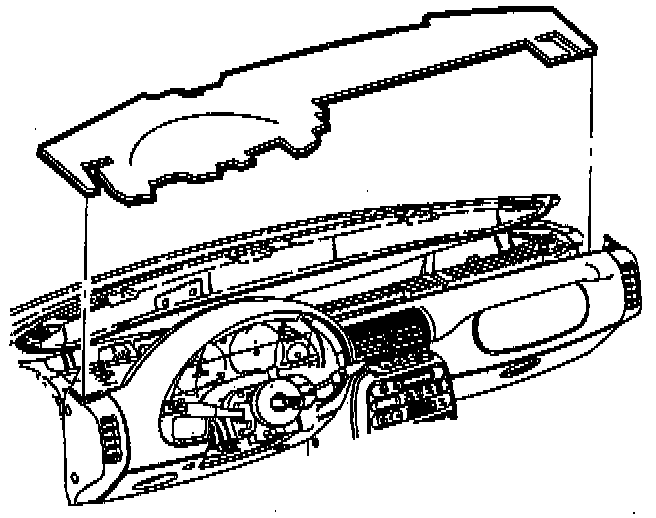

4. Install upper trim panel insulator.

IMPORTANT: Make sure to tuck in all flaps.

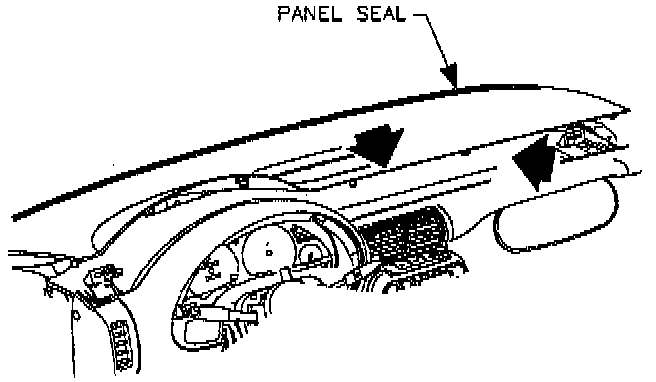

IMPORTANT: Be sure upper trim panel seal is correctly seated on forward edge before installing upper trim panel.

IMPORTANT: Be careful not to damage VIN plate when replacing upper trim panel.

5. Lower panel, making sure upper trim panel alignment tabs interlock with windshield garnish slots.
6. Push down at clip locations to secure.
7. Press down firmly at forward corners to fully engage retainers.

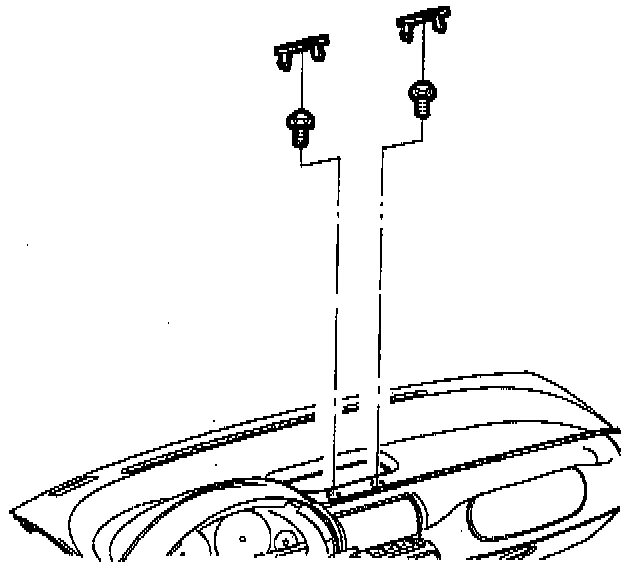

8. Install and tighten screws.
9. Install screw caps.

Torque: 2.3 Nm (20 inch lbs.)

10. Install AIR BAG fuse to I/P junction block.
11. Turn ignition switch to the RUN position and verify that the AIR BAG warning lamp flashes seven times and then turns Off. If it does not operate as described, perform the SIR DIAGNOSTIC SYSTEM CHECK under Air Bags (Supplemental Restraint Systems) testing procedures. Testing and Inspection
