Home >> Saturn >> 1999 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Ground Locations >> System Component Locator >> Ground Distribution Locations >> PCM Ground

PCM Ground

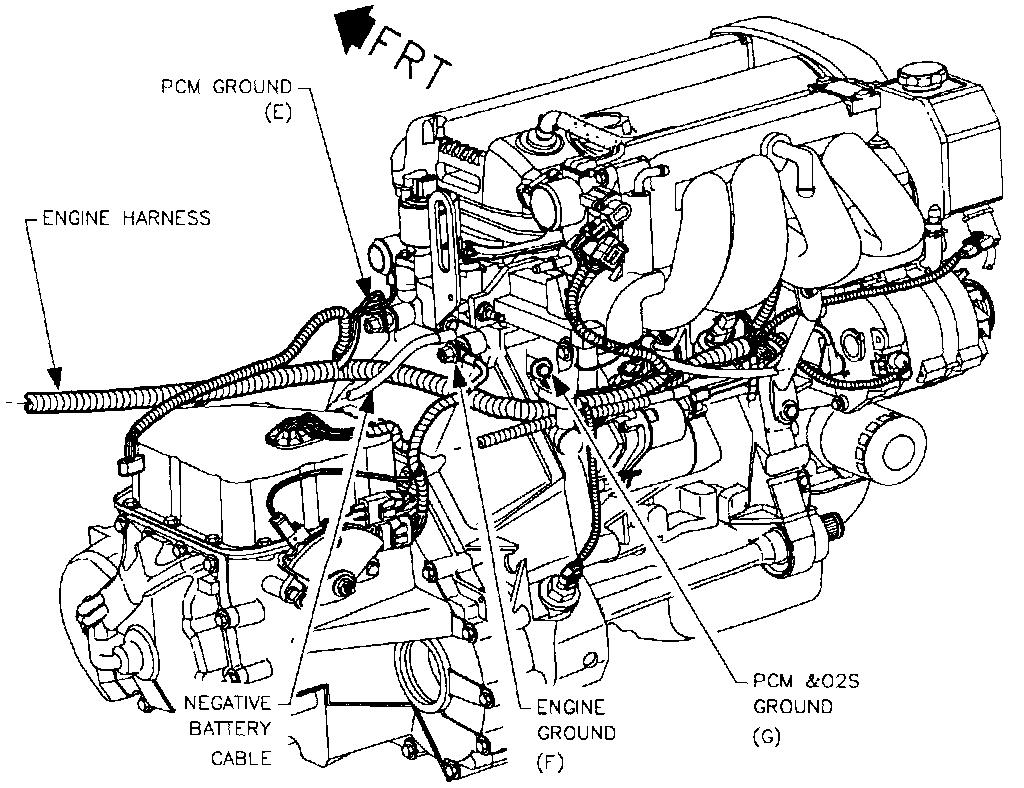

PCM Ground, Engine Ground, PCM & O2S Ground:
