Underhood Junction Block
>>
I/P
>>
I/P-12146036
>>
Harness Connector
Harness Connector

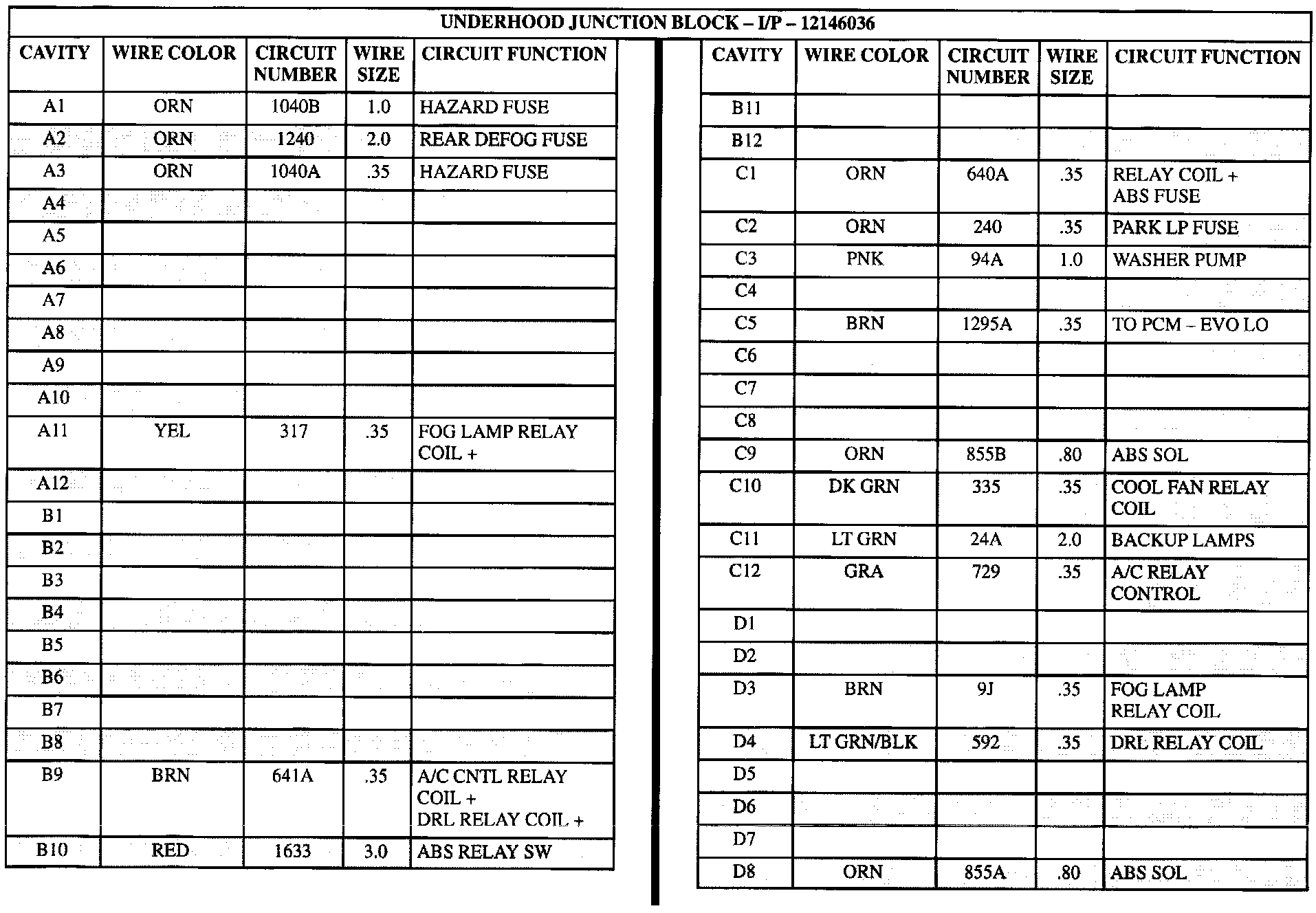

Underhood Junction Block - I/P (Part 1 Of 2):

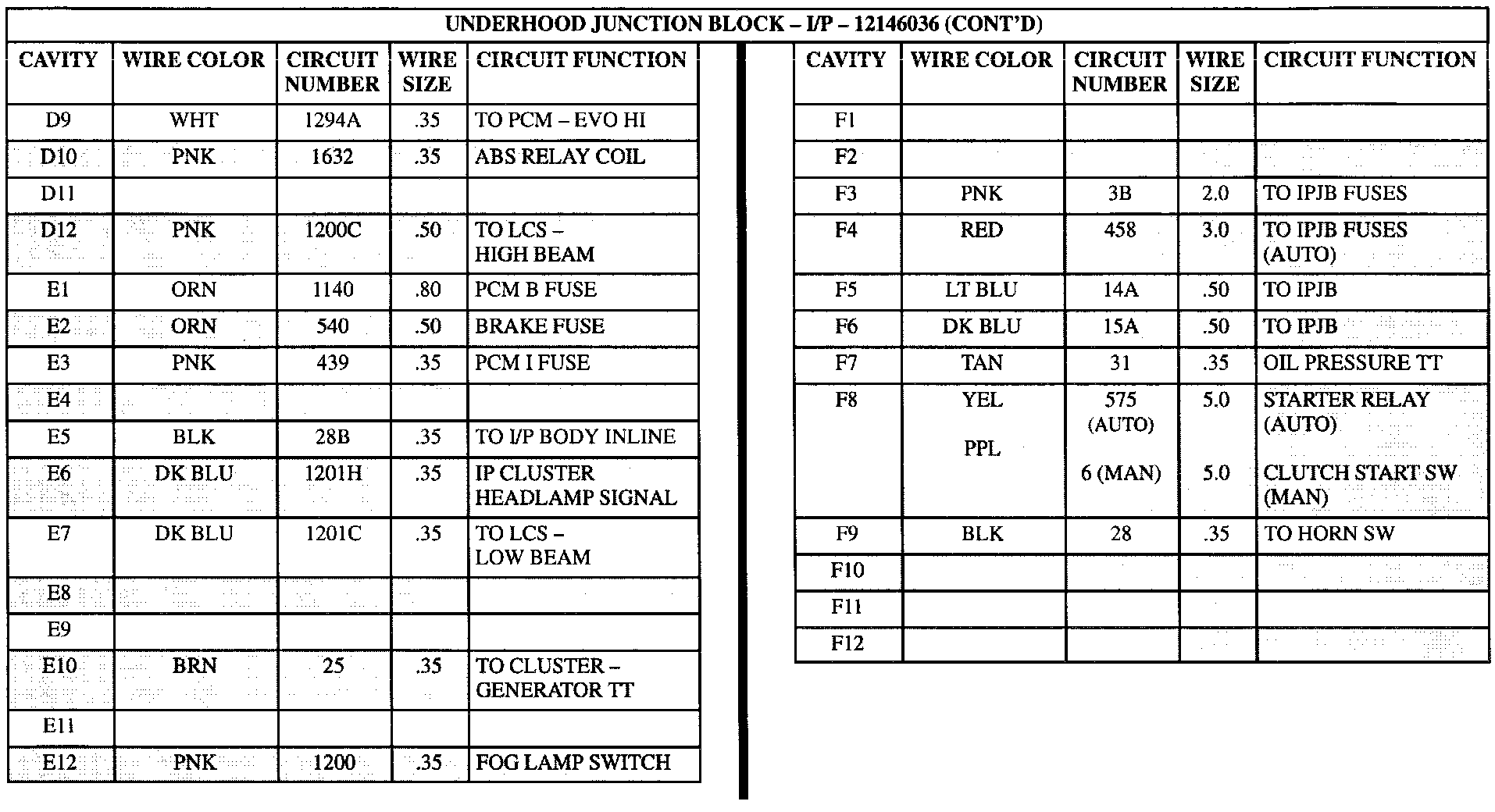

Underhood Junction Block - I/P (Part 2 Of 2):
