Harness Connector

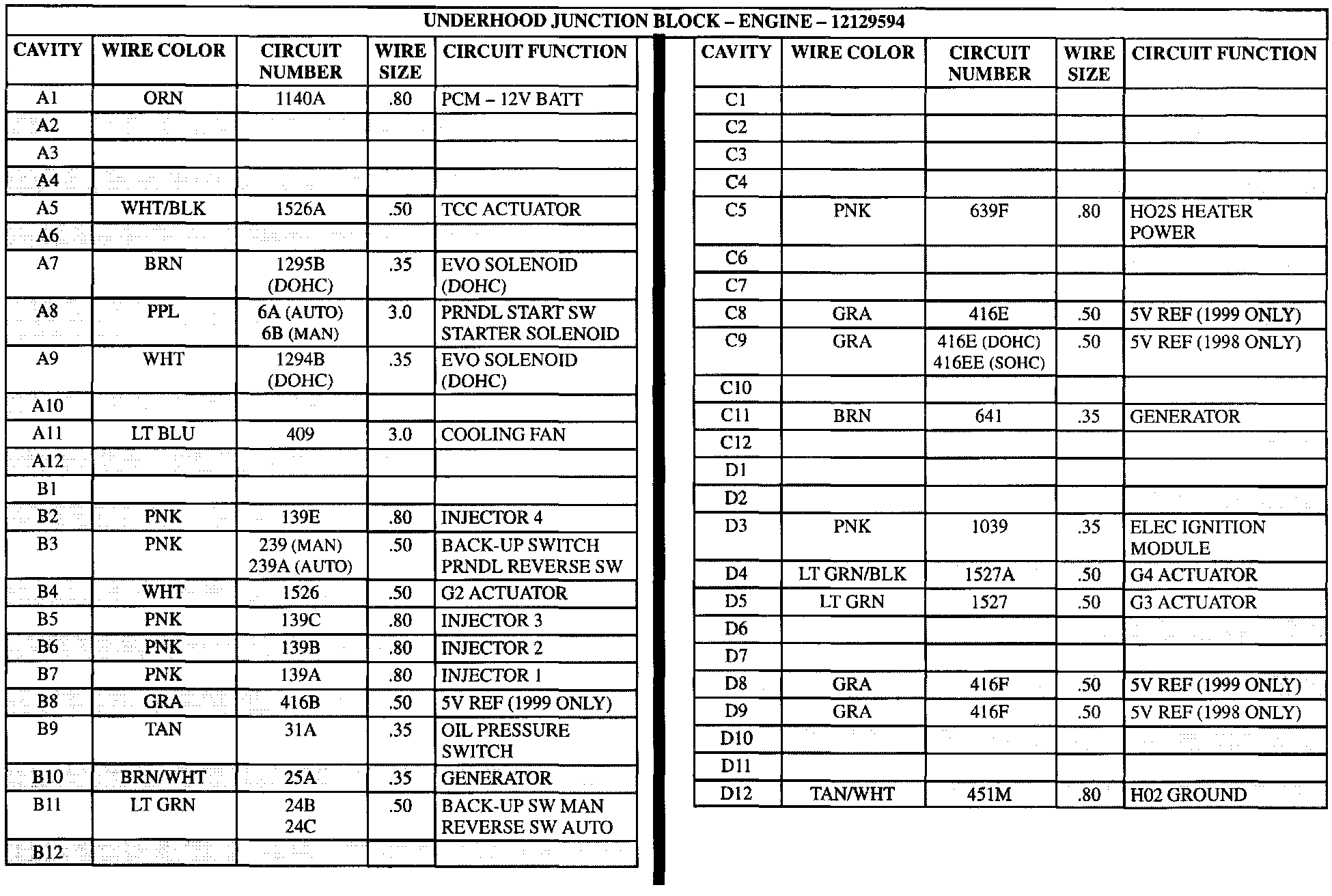

Underhood Junction Block - Engine (Part 1 Of 2):

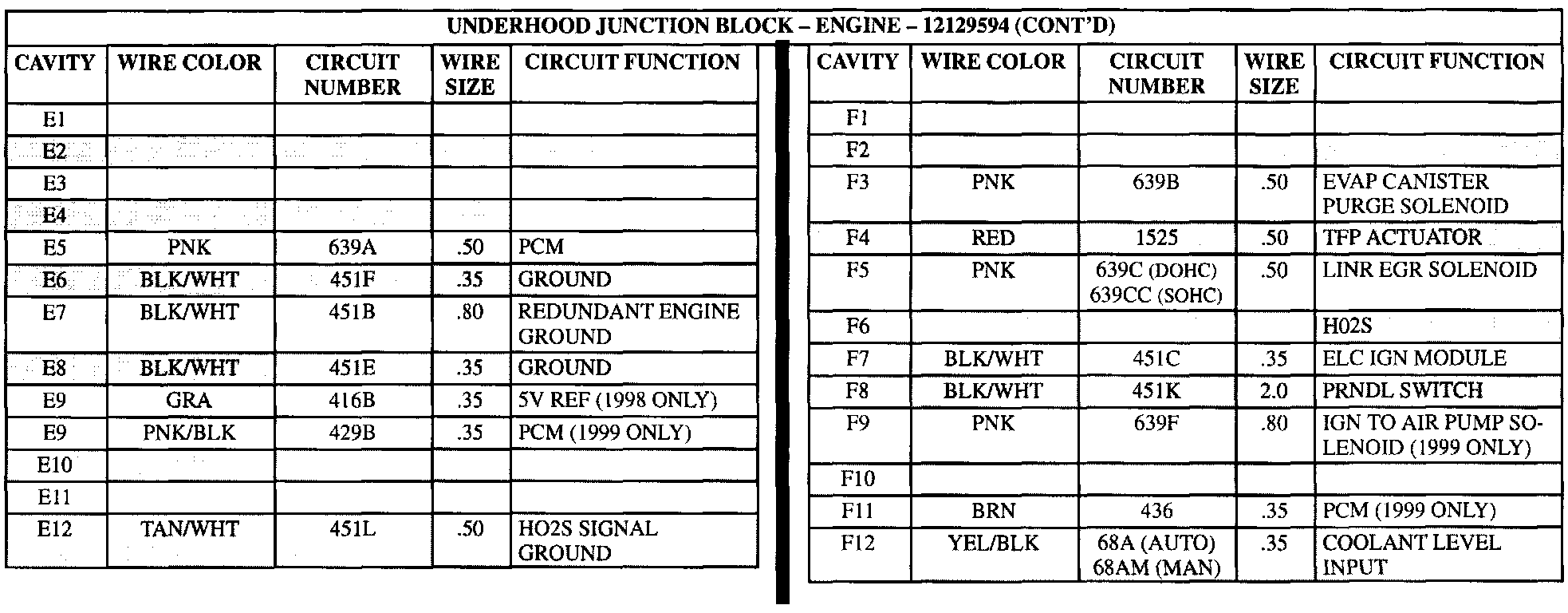

Underhood Junction Block - Engine (Part 2 Of 2):
