Ride/Trim Height Specifications

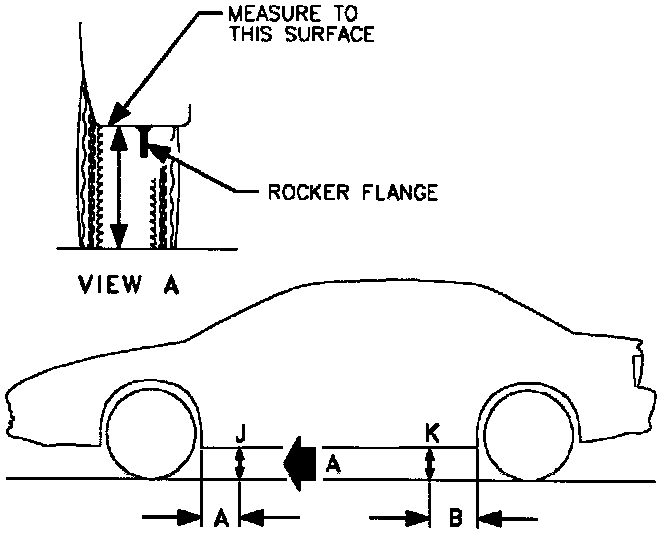

(Figure 1). Curb Height Measurement Points:
Coupe
A: 150 mm (5.9 inch)
B: 138 mm (5.4 inch)
J Front Rocker Height Range: 200 - 232 mm (7.8 - 9.1 inch)
K Rear Rocker Height Range: 201 - 233 mm (7.9 - 9.4 inch)
Coupe
A: 150 mm (5.9 inch)
B: 138 mm (5.4 inch)
J Front Rocker Height Range: 200 - 232 mm (7.8 - 9.1 inch)
K Rear Rocker Height Range: 201 - 233 mm (7.9 - 9.4 inch)
