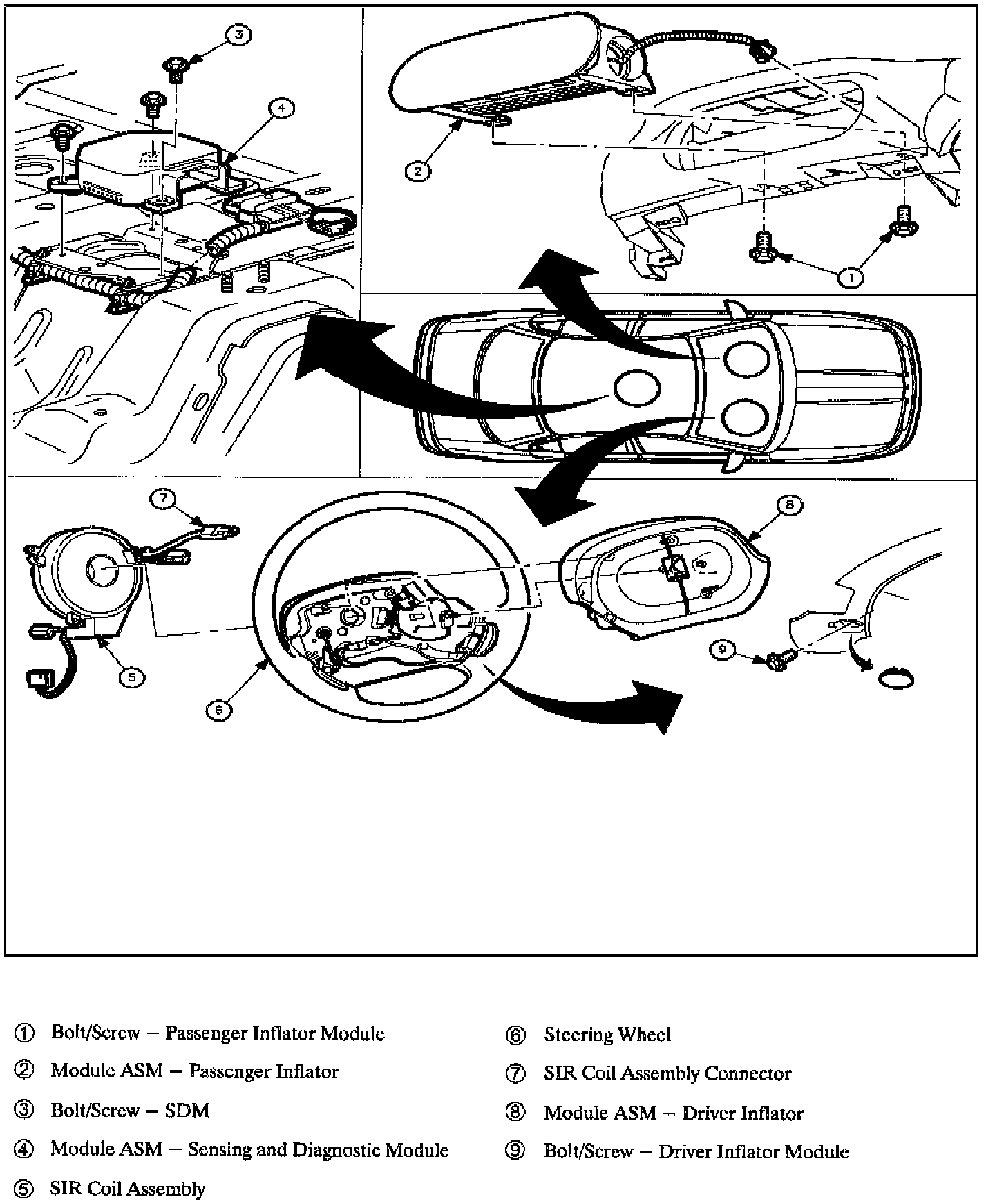

Home >> Saturn >> 1999 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Restraints and Safety Systems >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations >> Component Locations >> Inflatable Restraint Sensing and Diagnostic Module (SDM) >> RHD

RHD
