Home >> Saturn >> 1999 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Wiring Schematics >> Brake Transaxle Shift Interlock (BTSI) System ('99 Only)

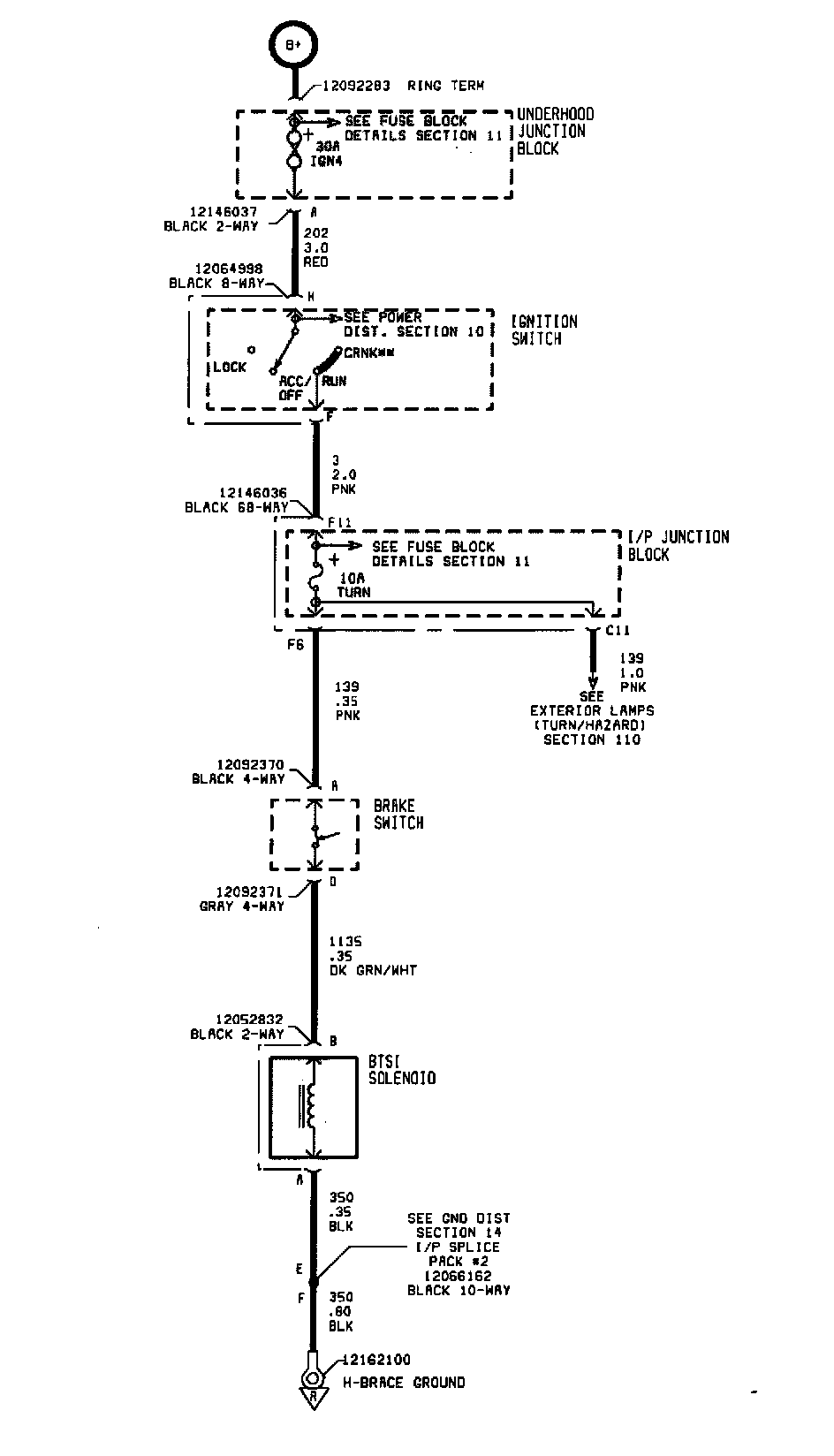

Brake Transaxle Shift Interlock (BTSI) System ('99 Only)
