Left Hand Drive

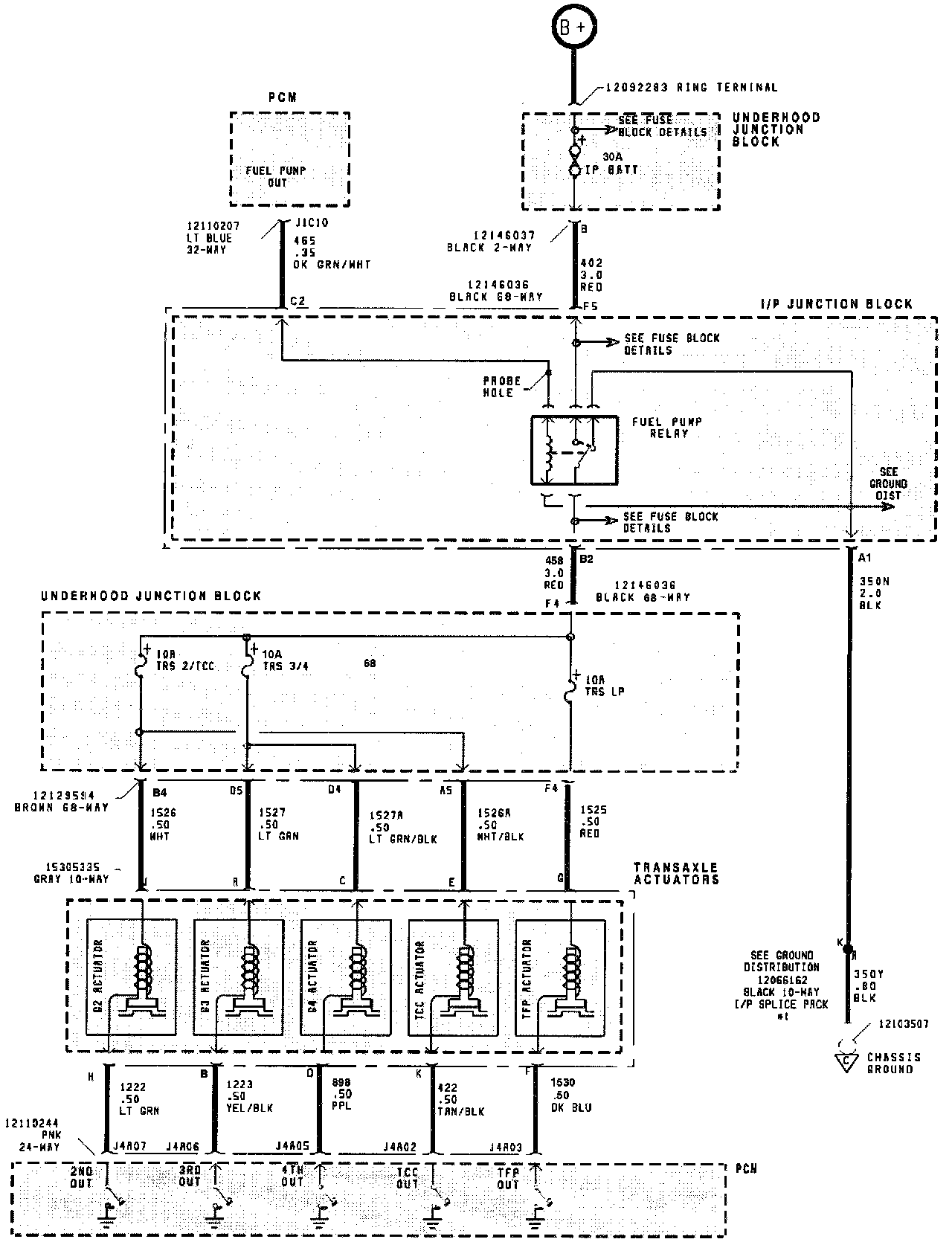

Fuel Injection: Automatic Transaxle Controls (Part 1 Of 2):

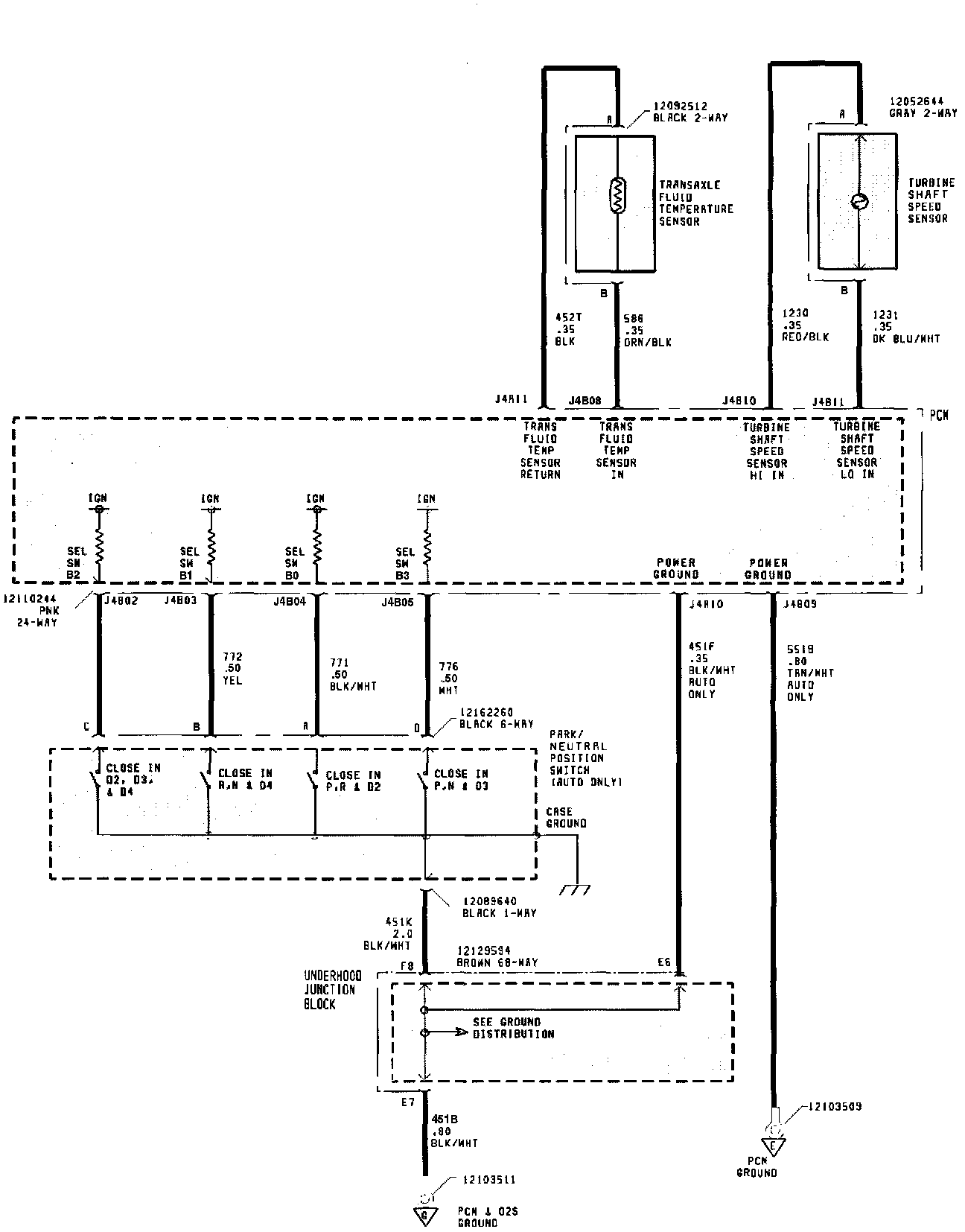

Fuel Injection: Automatic Transaxle Controls (Part 2 Of 2):

This diagram is one part of the complete set of powertrain wiring diagram located under Powertrain Management/Diagrams/Electrical. Refer to this area if you need the accompanying diagram. Diagrams
