Home >> Saturn >> 1999 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Ground Locations >> System Component Locator >> Ground Distribution Locations >> Left Body Ground and Splice Pack

Left Body Ground and Splice Pack

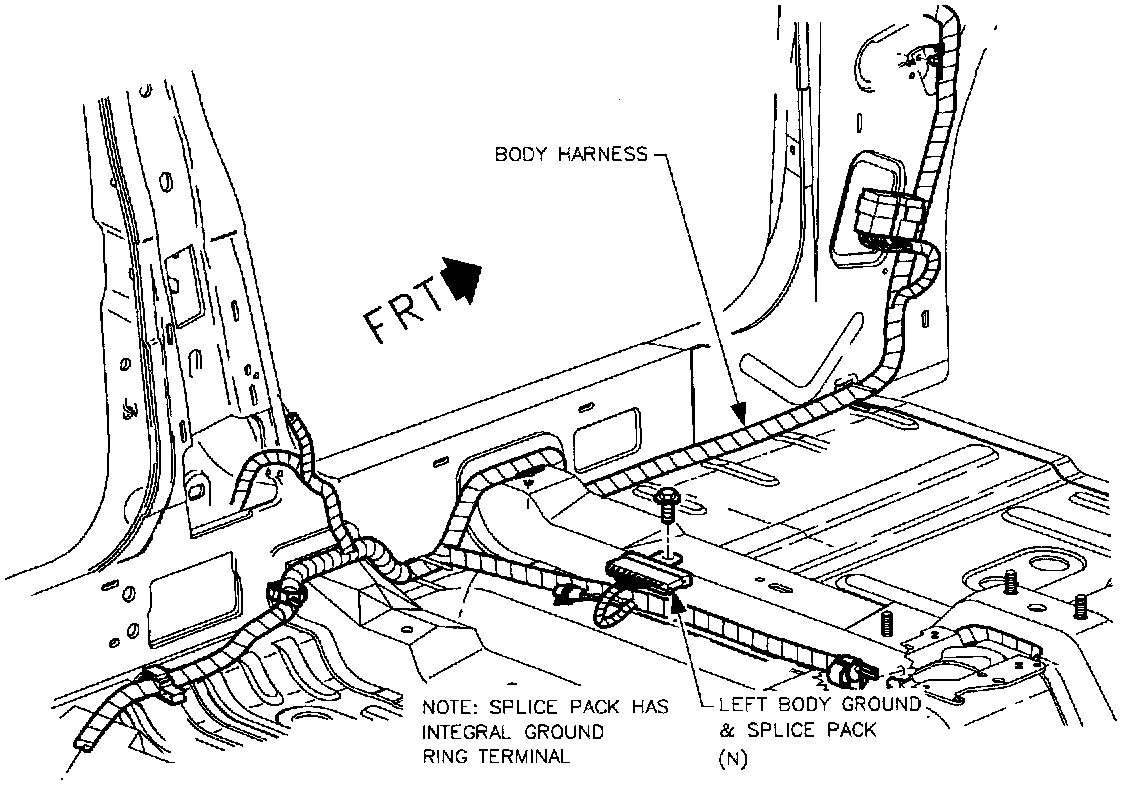

Left Body Ground And Splice Pack (SL/SW Shown, SC Similar):
