Thrust Angle Description

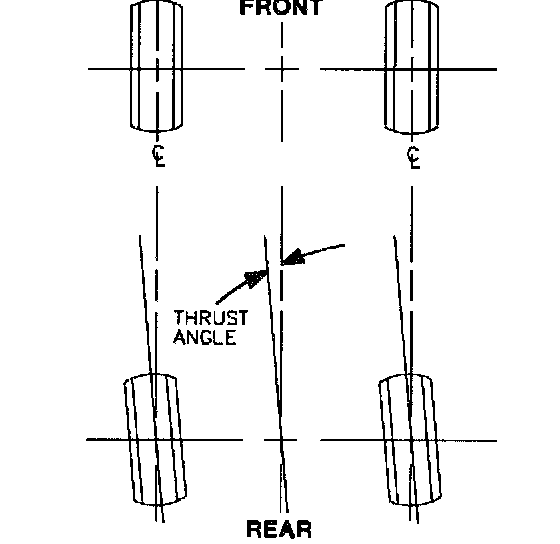

Thrust angle is the angle between the geometric centerline of the vehicle and the direction that the rear wheels track. Ideally, the thrust angle is equal to zero.
(LR Toe° - RR Toe°) divided by 2 = Thrust Angle°
