Horn Switch Connector

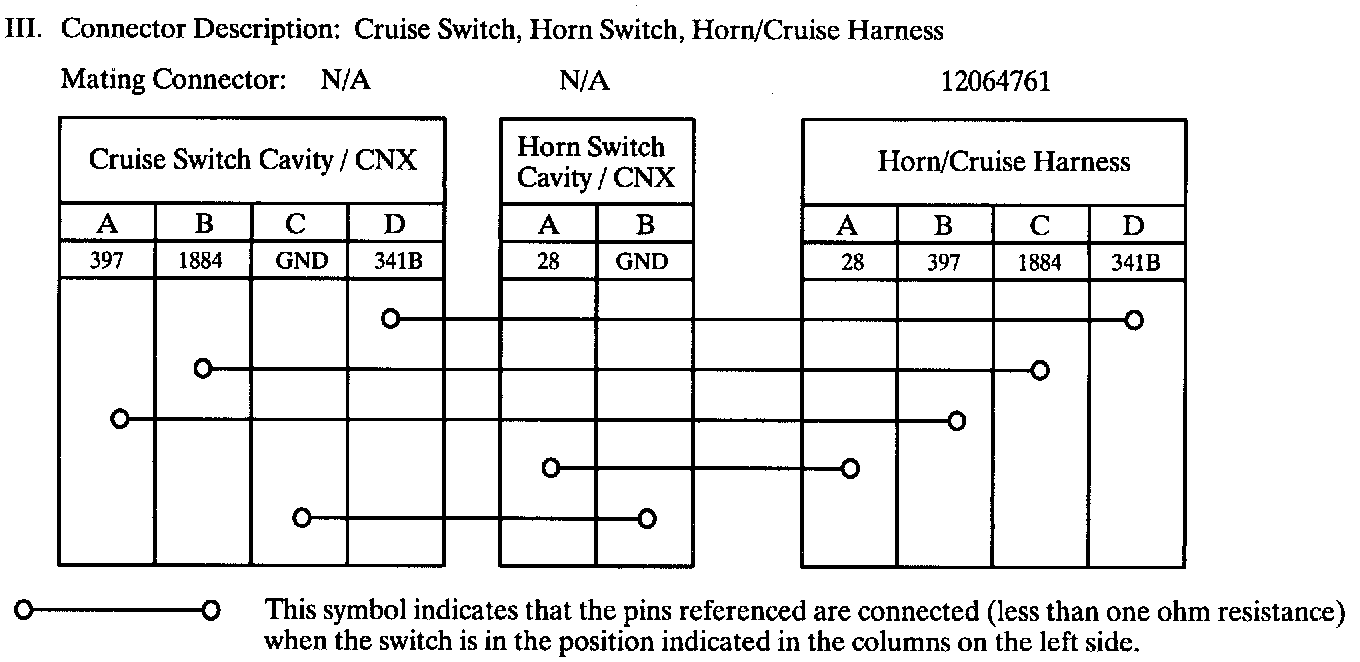

Horn Switch Connector:



Multifunction Switch Logic: Cruise Switch, Horn Switch Connector Description:
