Installation

Instrument Panel Cluster Assembly: Removal:

1. Install instrument panel cluster assembly.

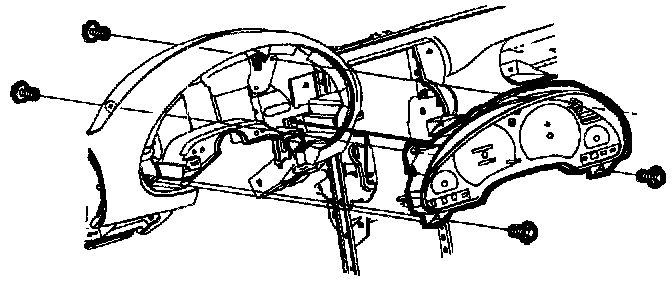

2. Install and tighten instrument panel cluster assembly screws.

Instrument Panel Cluster Assembly: Installation:

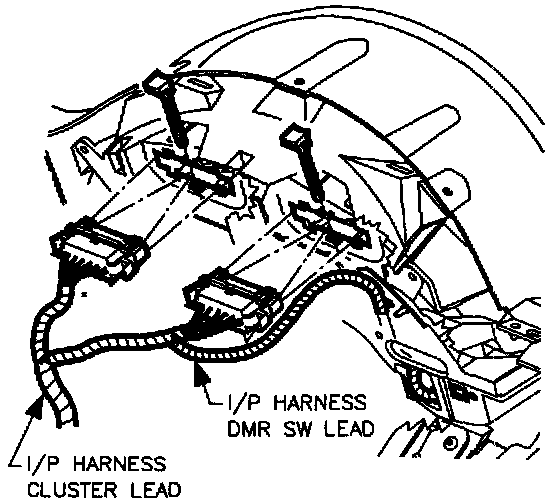

3. Connect electrical connectors to instrument panel cluster assembly.
4. Install CPA devices.

Instrument Panel Cluster Assembly: Installation:

5. Connect electrical connector to instrument panel dimmer switch.

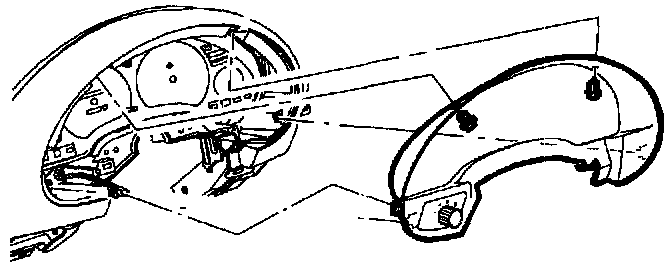

6. Install instrument cluster trim bezel. Push in at clip locations.
7. Install push pin fasteners.

Instrument Panel Cluster Assembly: Installation:

8. Raise steering column into position.

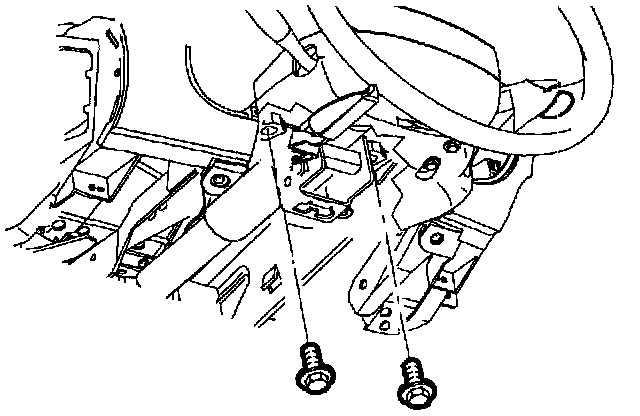

9. Install and torque bolts.
Torque: 35 N^m (26 ft-lbs)
10. Connect ignition switch electrical connector at right steering column bolt.

Instrument Panel Cluster Assembly: Installation:

11. Install hood release cable to lever.

Instrument Panel Cluster Assembly: Installation:

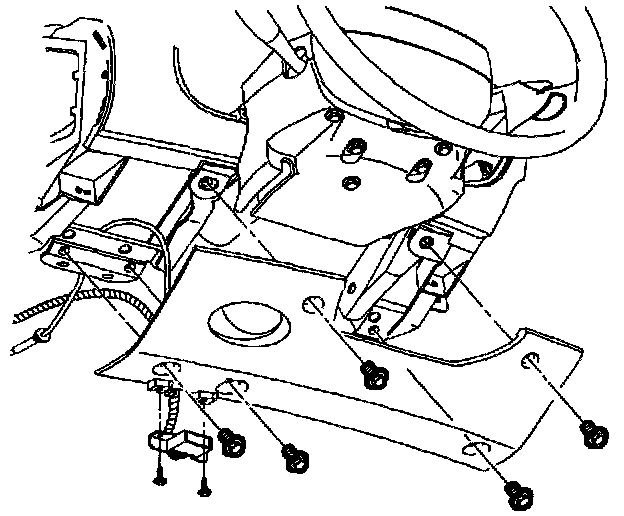

12. Install steering column filler panel and DLC connector.
13. Install and tighten screws.
14. Enable the SIR System. (Refer to Enabling the SIR System at Diagnostic Aids/General Troubleshooting Procedures/The SIR System/Enabling the SIR System.) Diagnostic Aids
