Removal

Odometer Mileage Programming Procedure:

NOTE: Failure to use the anti-static mat SA 9502Z properly will result in damage or latent damage to the cluster electronics.

IMPORTANT:
^ If the lens/mask gets dirty it can be cleaned by following the procedures. If a dial face gets dirty it can be cleaned by using glass cleaner and a lint free rag.
^ Do not touch or bump the pointers of the gages. If the pointers are moved from their positions the calibration of the gage will be affected, and the gage will no longer be accurate and must be replaced.
1. Remove instrument panel cluster assembly. (Refer to Instrument Panel Cluster Assembly removal procedure..)
2. Thoroughly clean hands with soap and water to remove any oil or other substances which could damage the cluster. If unable to clean hands, an alternative is to wear surgical gloves during all procedures.

IMPORTANT: It is strongly recommended that rubber gloves (i.e., like surgical gloves) be worn while performing removal and installation procedures to prevent grease, smudges, scratches and fingerprints.
3. Place anti-static mat SA 9502Z down on the work area. In order to ground the mat connect the alligator clip to a large metal object (i.e. work bench) making sure that the attaching point is a bare metal surface and not painted or coated. Also put the wrist strap around one of your wrists.
4. Place a clean, dry, soft material such as a cloth baby diaper on top of the anti-static mat.
5. Place instrument panel cluster assembly face down on the cloth and the anti-static mat.

Lens/Mask Assembly: Removal:

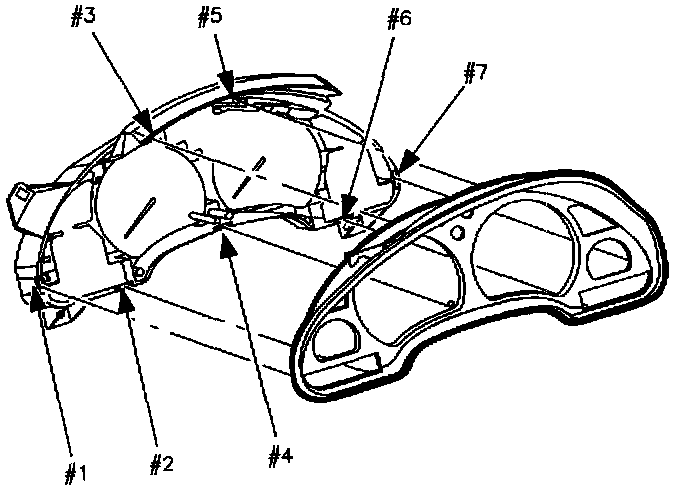

6. With end of housing (white portion of cluster) in one hand and lens/mask assembly (black portion of cluster) in other hand, disengage clip #1 with one hand while separating lens/mask assembly from housing with other hand.
7. Repeat for clips #2 through #7.
8. Place lens/mask assembly in clean area.

IMPORTANT: Do not touch inside of lens.
