Installation

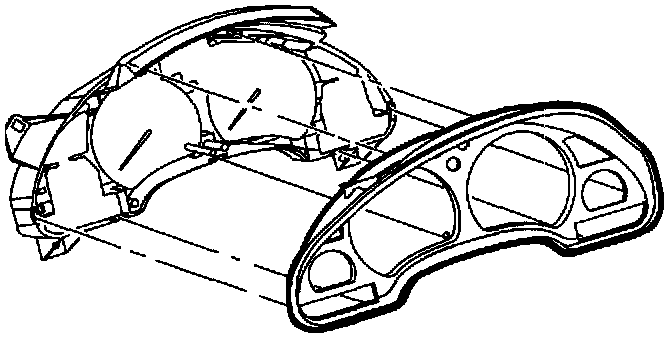

Lens/Mask Assembly: Installation:

1. Holding lens/mask assembly by the ends and face up align reset knob with hole in lens.
2. Start lens/mask tabs into slots in housing and at the top of cluster seat two housing tabs into lens/mask slots.
3. Press down on top of lens/mask around edge to fully seat all clips.
4. Inspect that all gages and clips are seated correctly and that there is no debris or markings on the lens or dial faces.
5. Install instrument panel cluster assembly. (Refer to Instrument Panel Cluster Assembly installation procedure.)
