Home >> Saturn >> 1999 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Chart 8 - No Inside Air Circulation - Blower Motor Functions

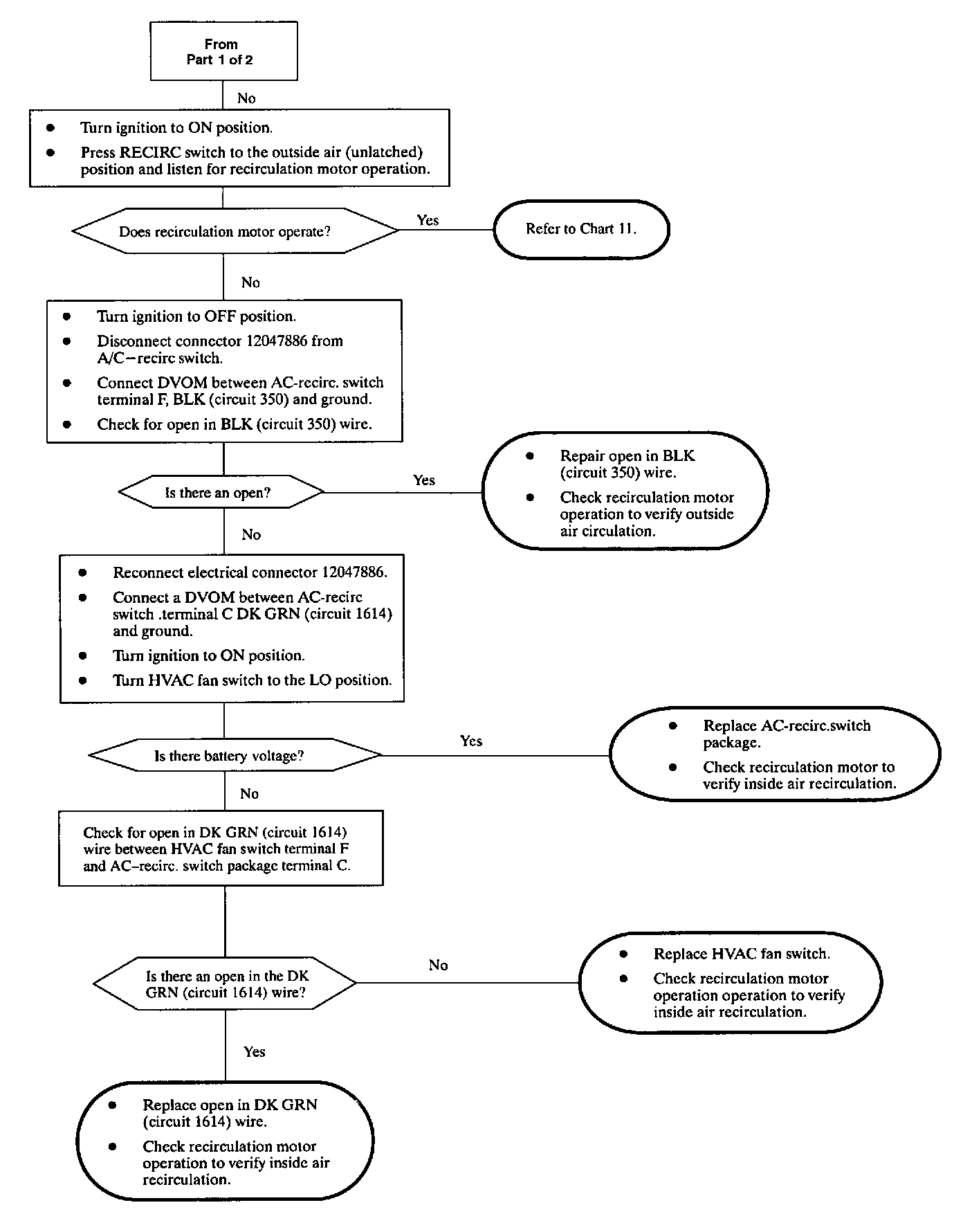

Chart 8 - No Inside Air Circulation - Blower Motor Functions
