HVAC Control Head Mode Lever And Fan Switch Dim Illum
HVAC Control Head Mode Lever And Fan Switch Dim Illum

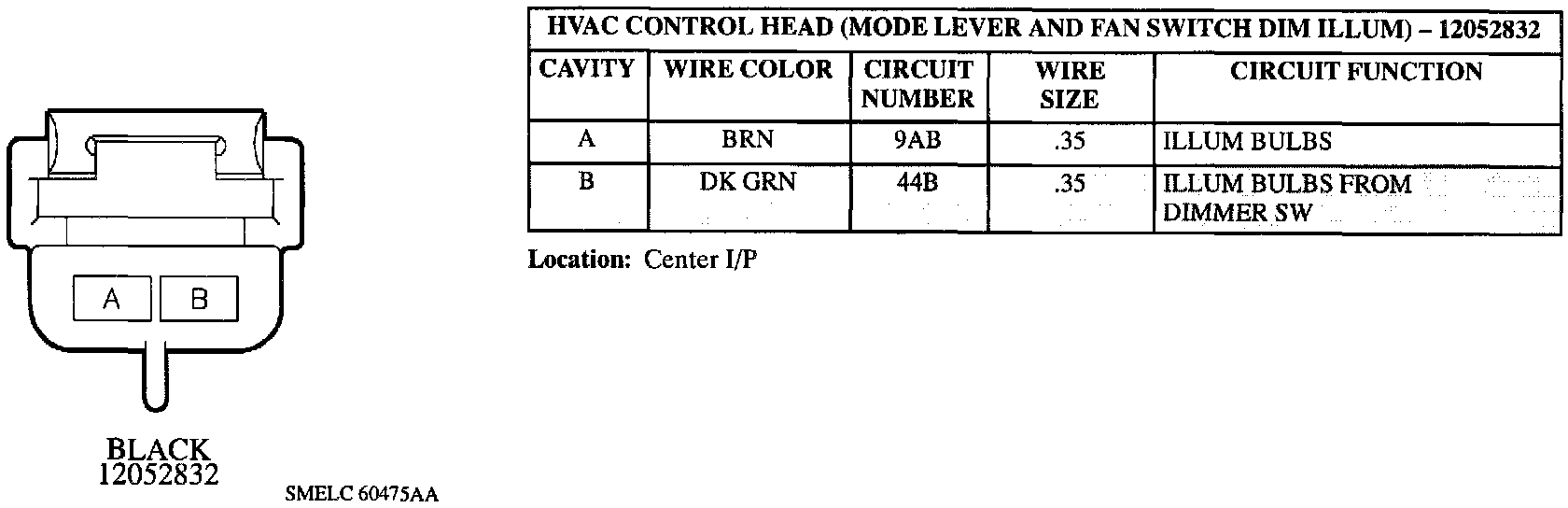

HVAC Control Head (Mode Lever And Fan Switch Dim Illum):
