Seal Leaks

Check for:
- High fluid level or high oil pressure.

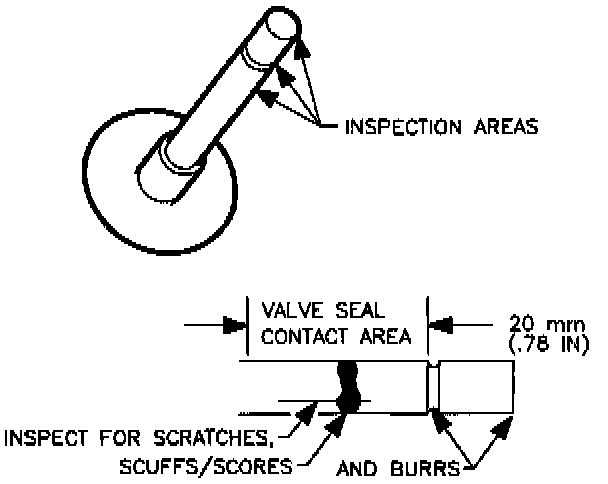

- Damaged seal bore (scratched, burred or nicked).
- Damaged or worn seal.
- Improper installation.
- Cracks in component.
- Shaft surface scratched, nicked or damaged.





- Loose or worn bearing causing excess seal wear.
