Fuel Injectors

Fuel Injection: Fuel System (Part 1 Of 2):




Fuel Injection: Fuel System (Part 2 Of 2):

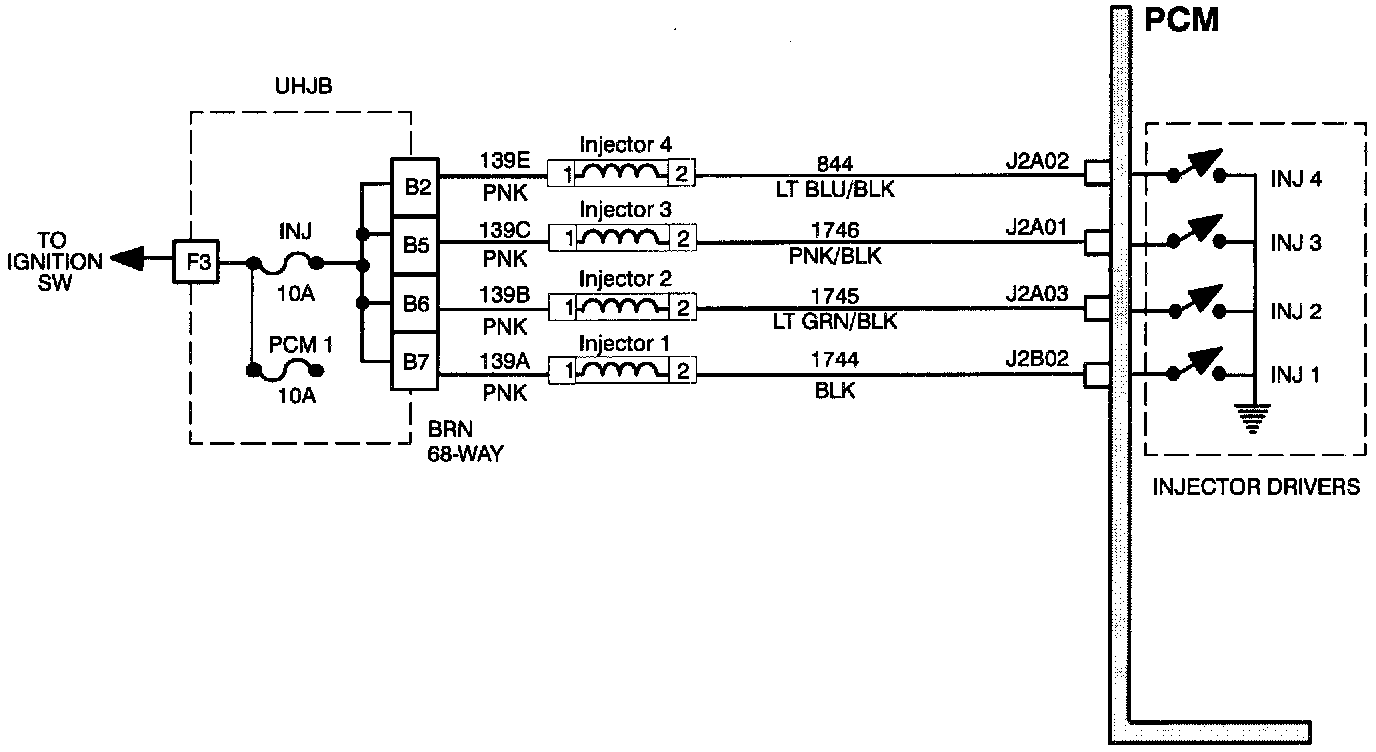

Wiring Diagram:





This diagram is one part of the complete set of powertrain wiring diagrams.
