Fuel Injection:
Fuel Injection:

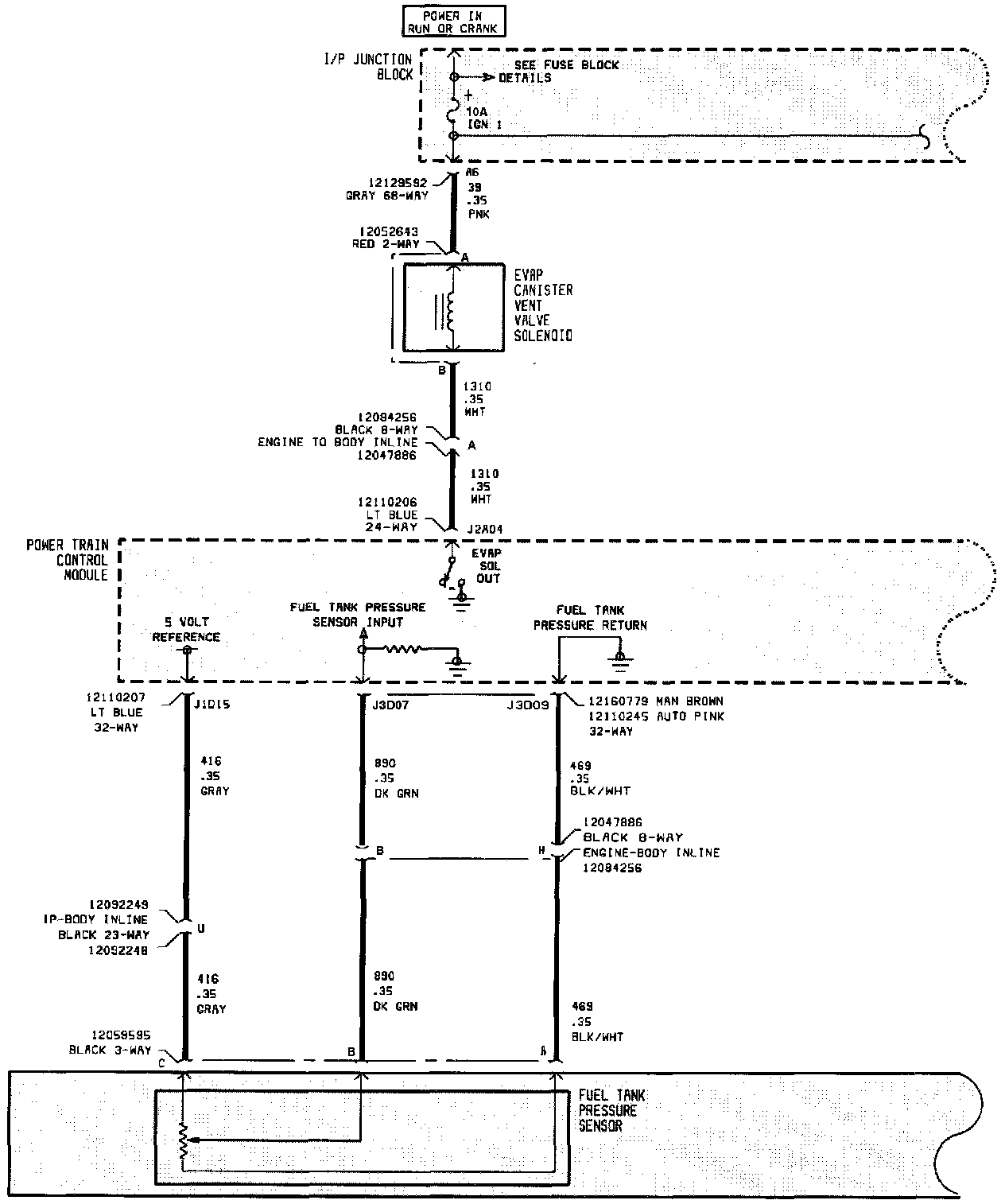

Fuel Injection: Fuel System (Part 1 Of 2):

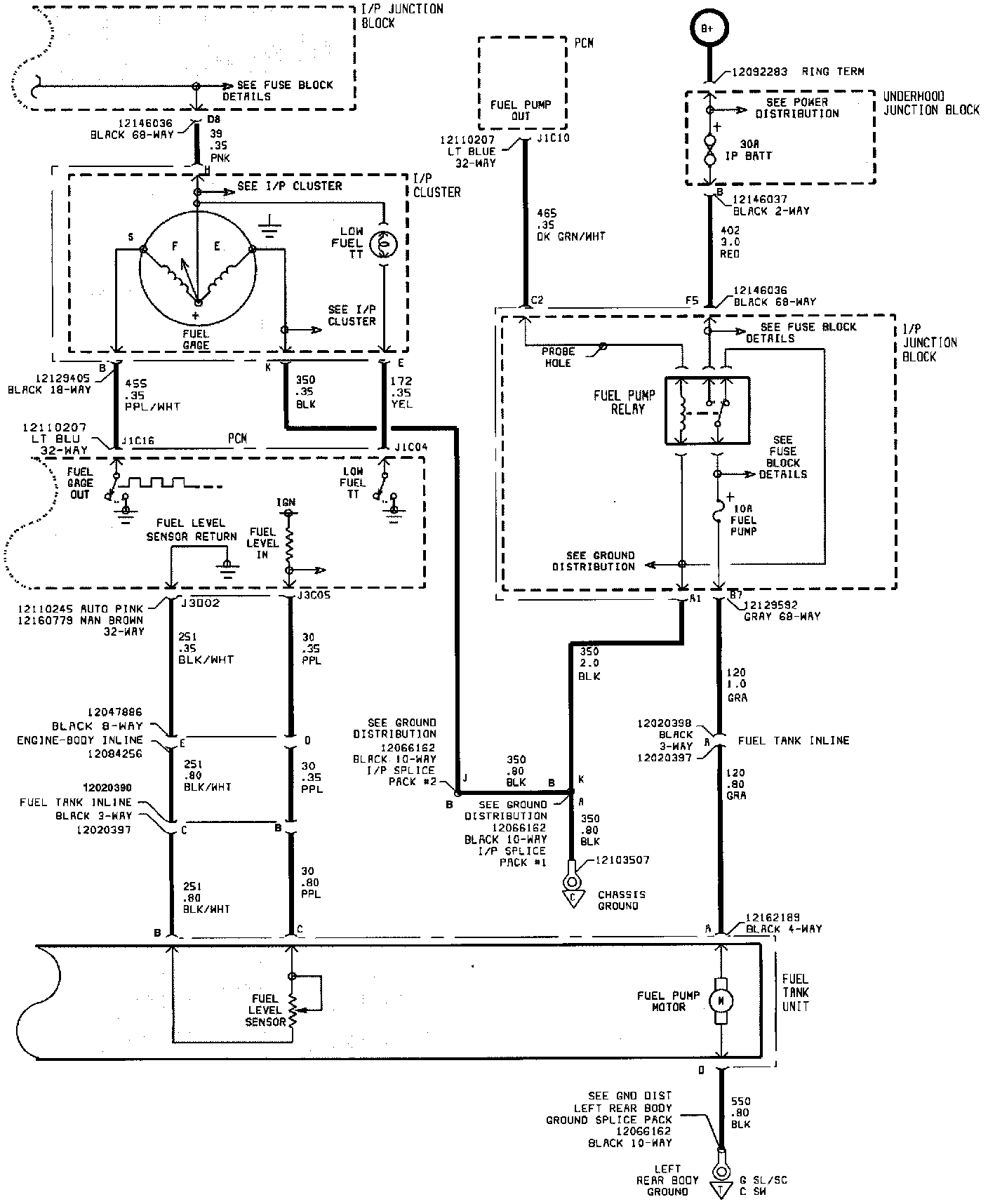

Fuel Injection: Fuel System (Part 2 Of 2):
