Turn/Hazard/Stop Lamps

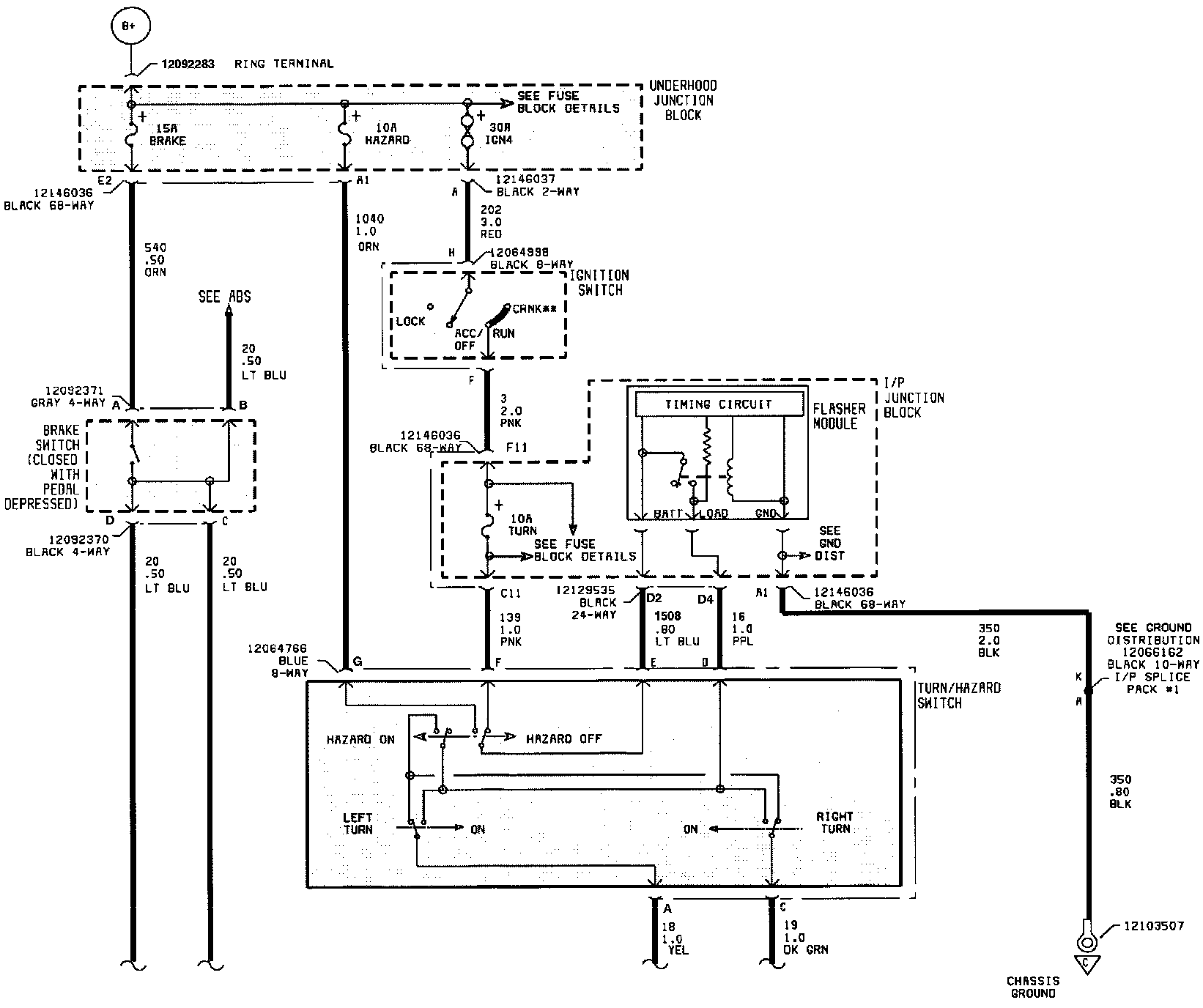

Exterior Lamps: Turn/Hazard/Stop Lamps:

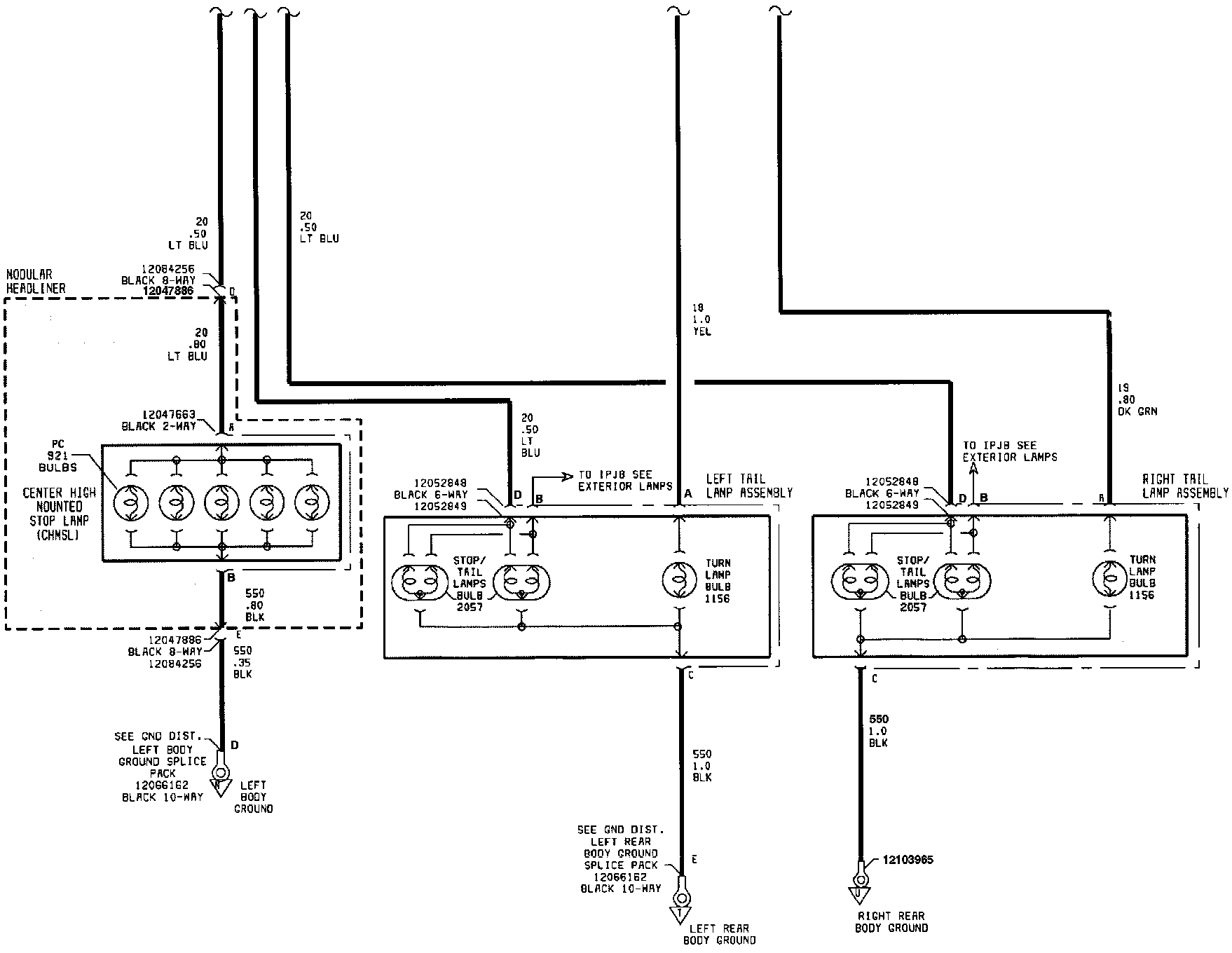

Exterior Lamps: Turn/Hazard/Stop Lamps:

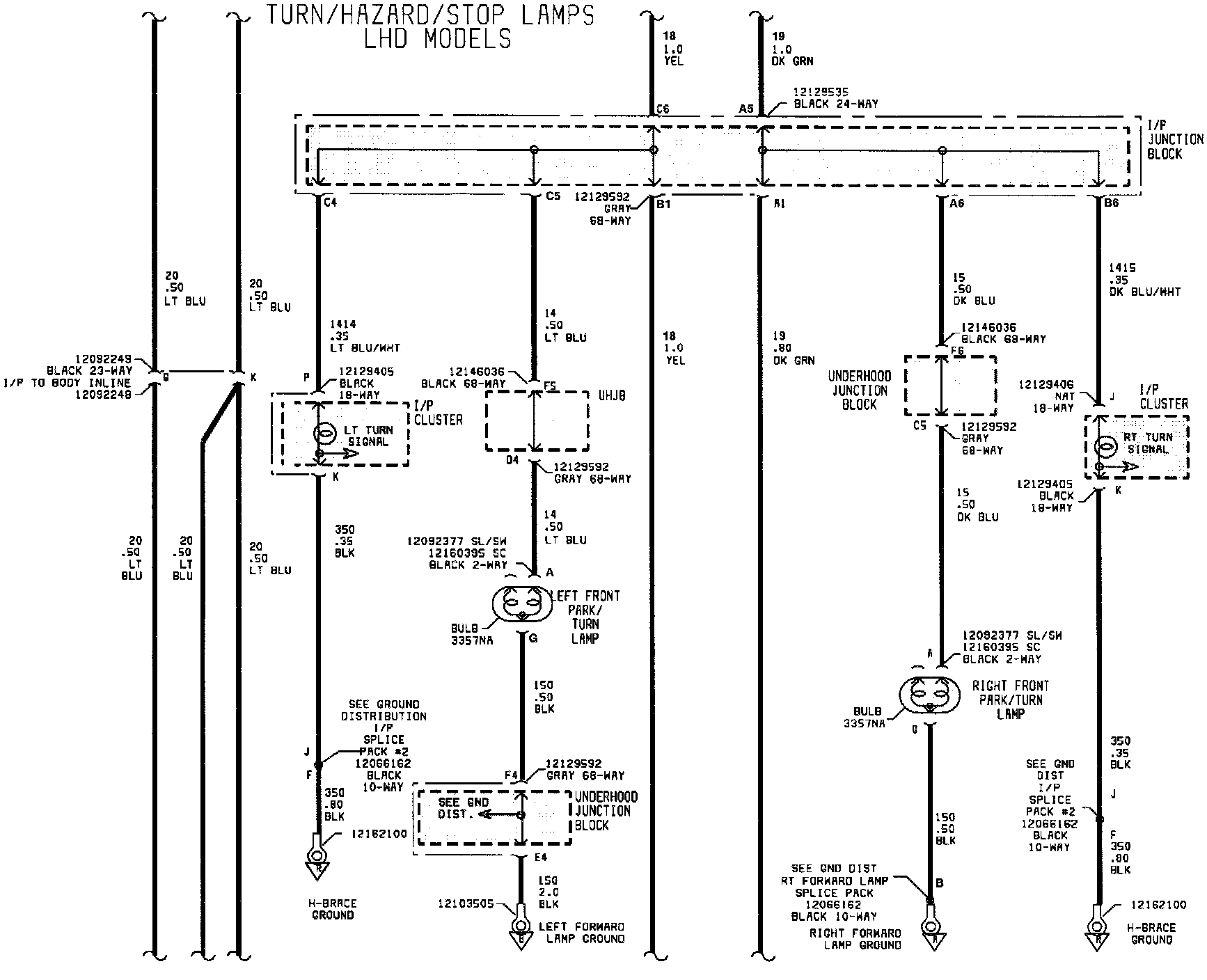

Exterior Lamps: Turn/Hazard/Stop Lamps:
