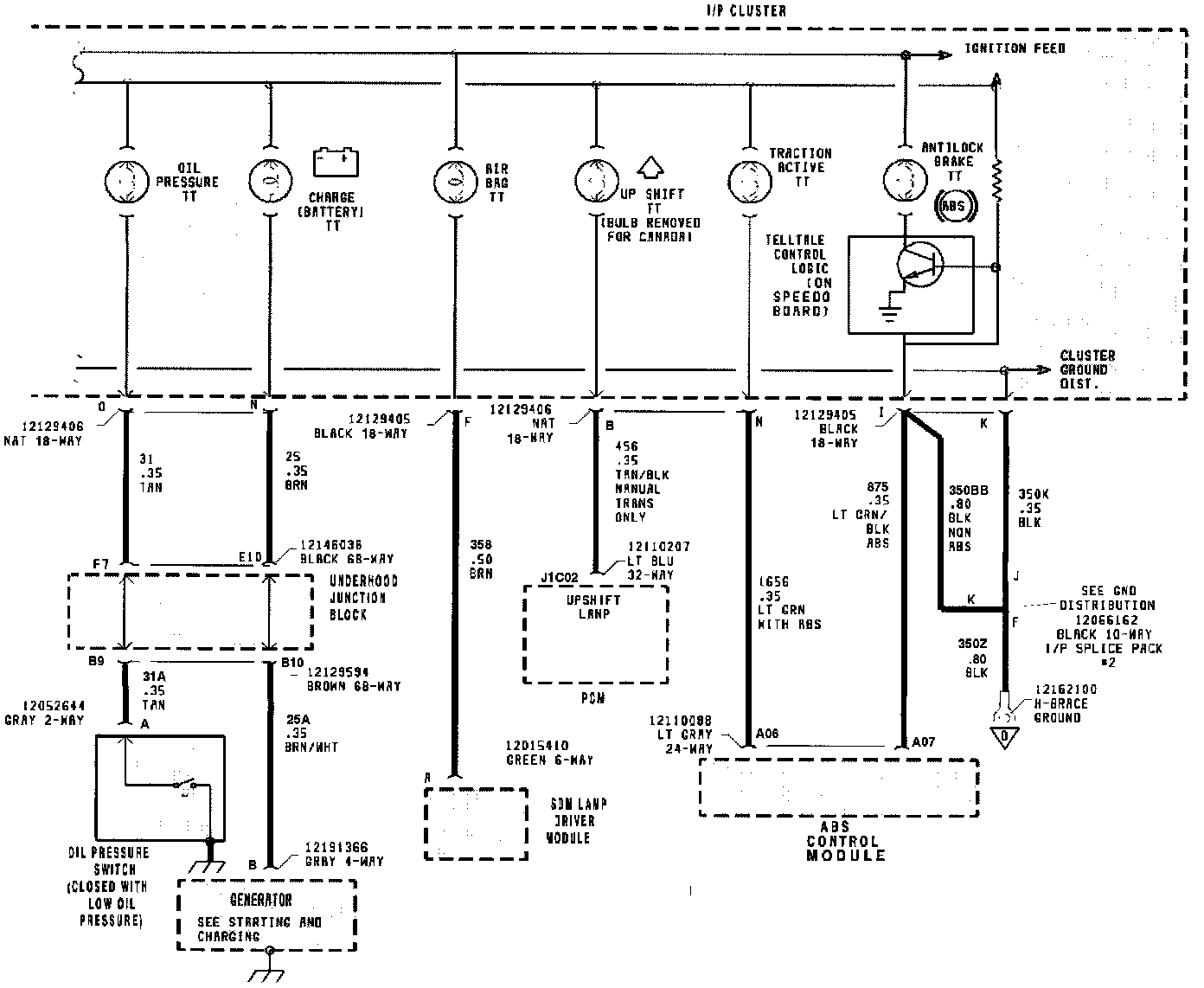

Instrument Panel Cluster Telltales

Instrument Panel Cluster Telltales:



Instrument Panel Cluster Telltales:



Instrument Panel Cluster Telltales:



Instrument Panel Cluster Telltales:
