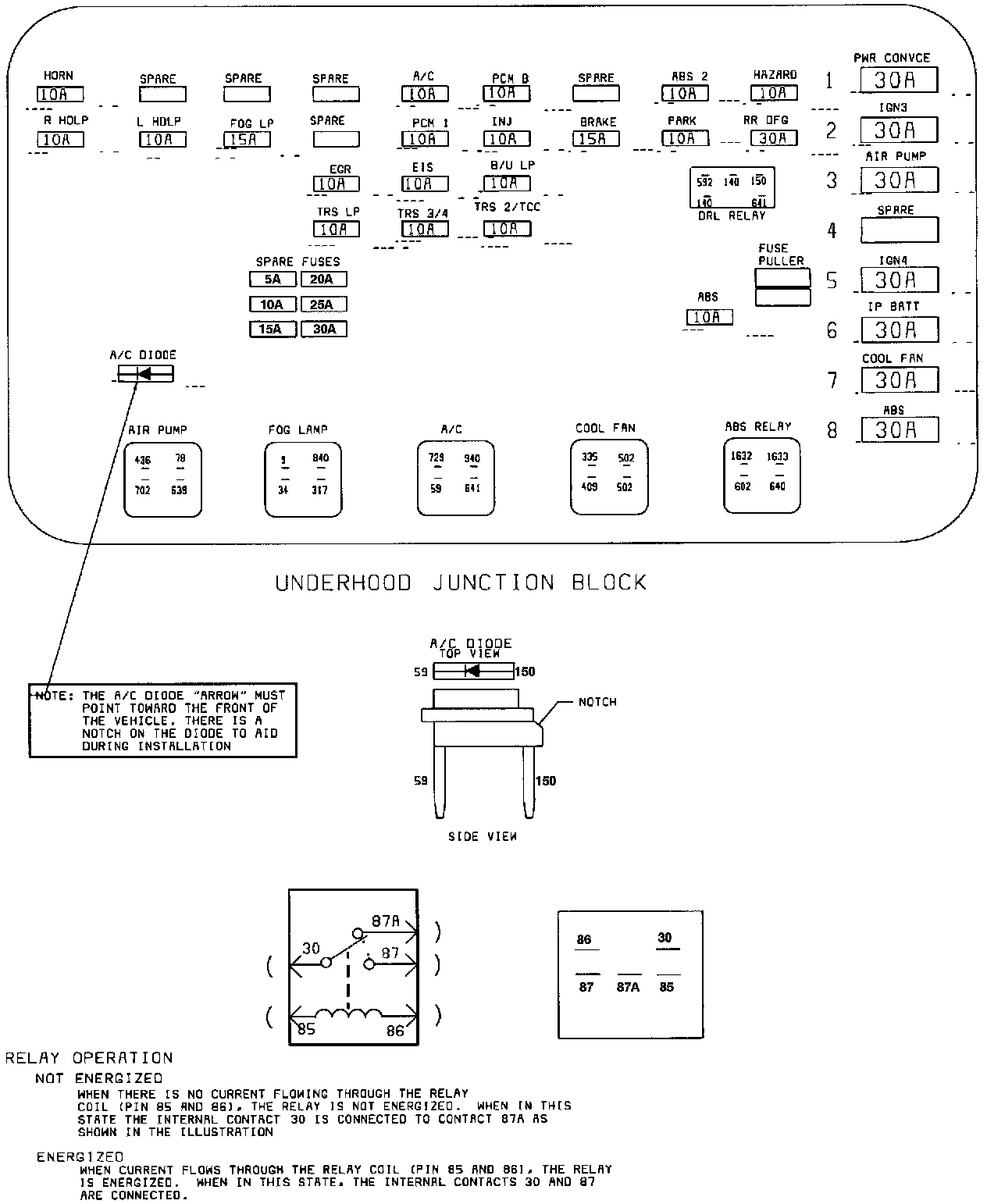

Underhood Junction Block (UHJB)
Underhood Junction Block (UHJB)
Fuse Block Details: Underhood Junction Block (UHJB):
