SC2 L4-1.9L DOHC VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compact Disc Player (CD)
>>
System Diagram
>>
CD Jumper Inline (M)
>>
I/P Harness
I/P Harness

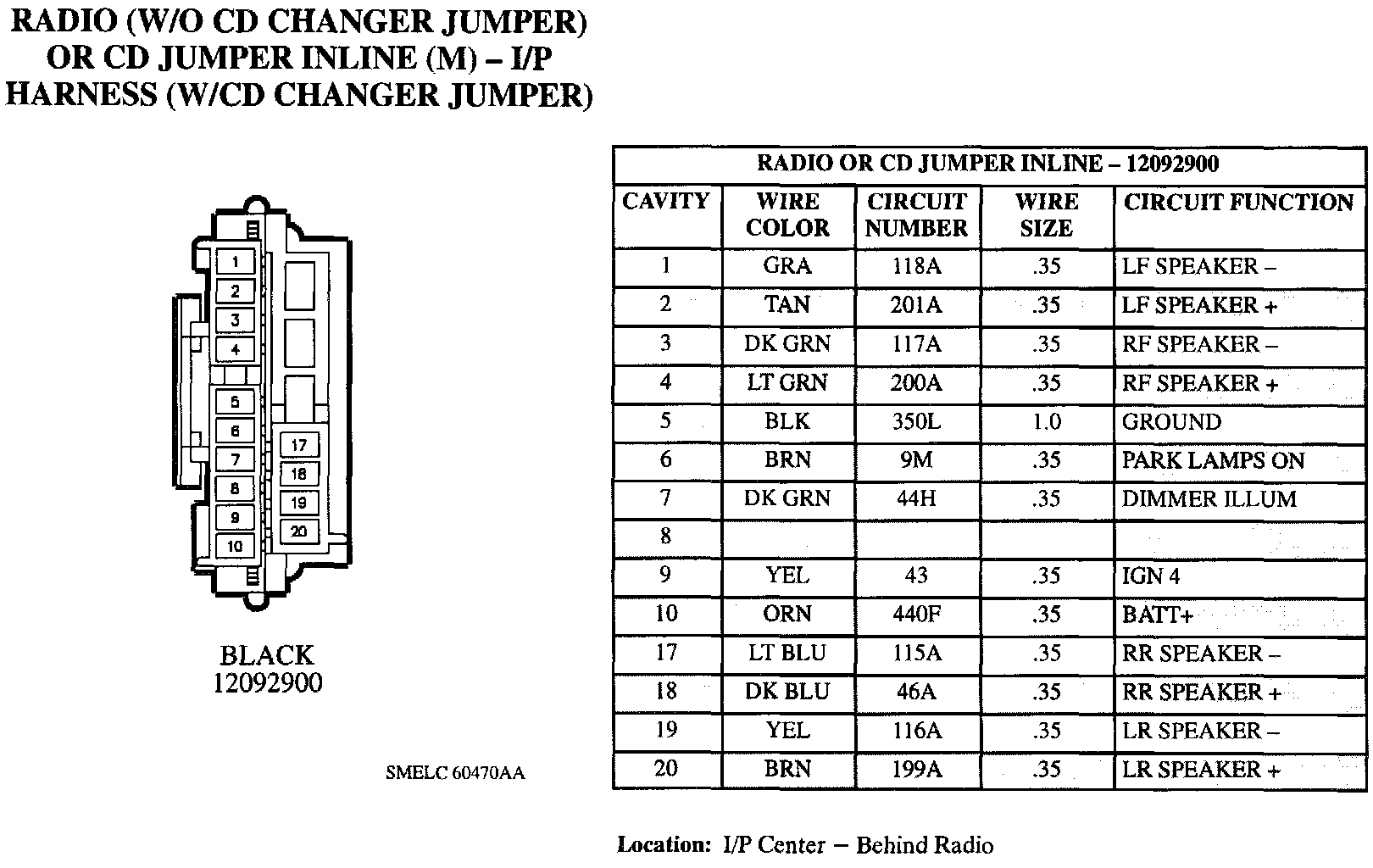

Radio (W/O CD Changer Jumper) Or CD Jumper Inline (M) - I/P Harness:
