Saturn
>>
1999
>>
SC2 L4-1.9L DOHC VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body and Frame
>>
System Diagram
>>
Body To Engine Inline
Body To Engine Inline

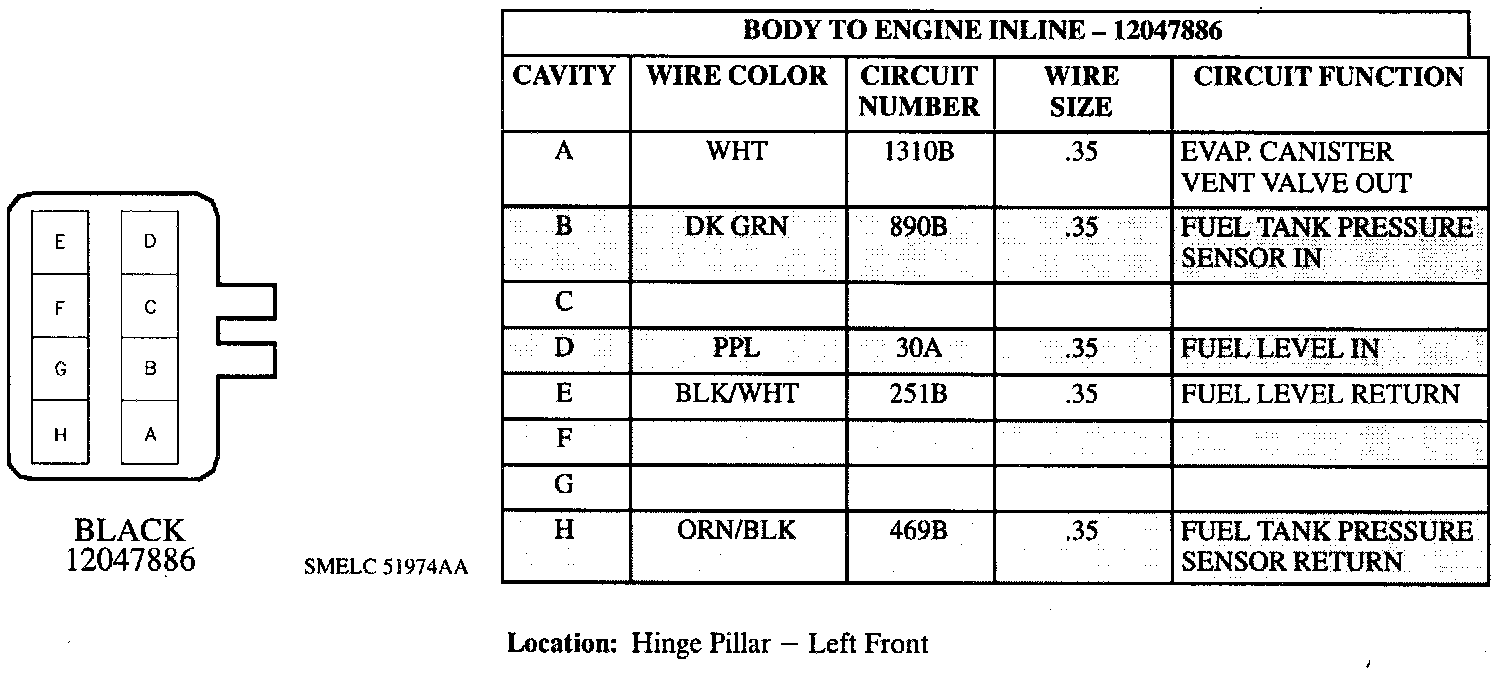

Body To Engine Inline:
