Mirrors: Service and Repair

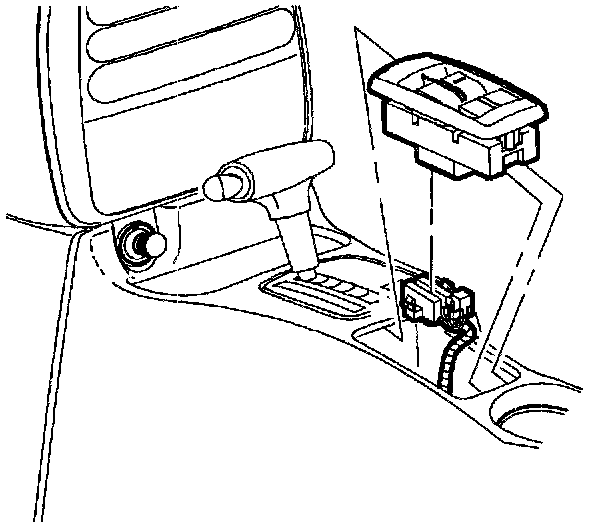

Power Window/Mirror Switch Removal:

REMOVAL
1. Slide switch assembly forward.
2. Using a small flat bladed screw driver, carefully lift switch at rear edge.
3. Lift switch from console.
4. Disconnect electrical connectors.

INSTALLATION
1. Connect electrical connectors.
2. Start front of switch assembly into console, press down into place.
3. Check operation of all switches.
