Home >> Saturn >> 1999 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Diagrams >> Electrical Diagrams

Electrical Diagrams

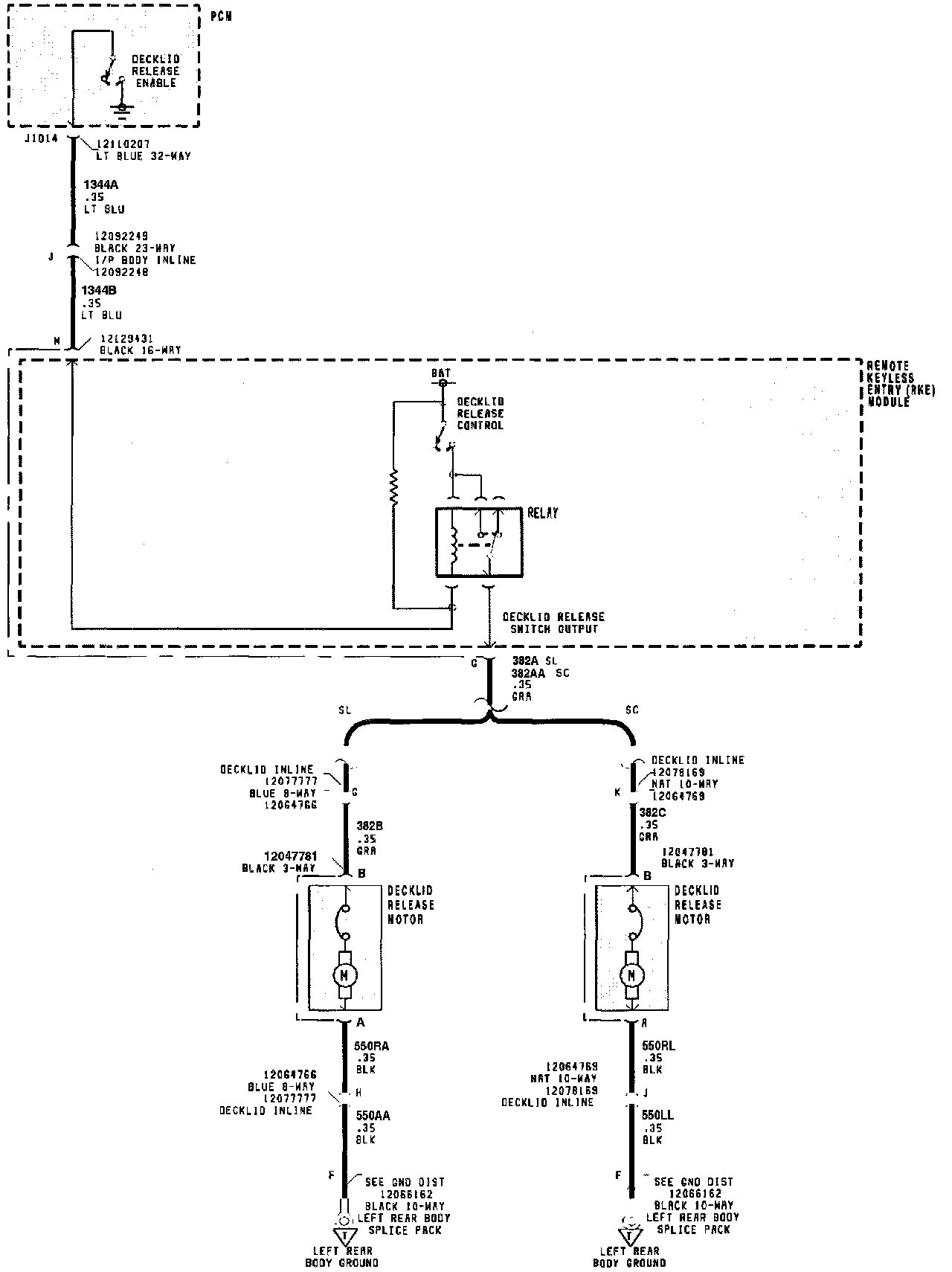

Decklid/Liftgate Release (With RKE Only):
