Home >> Saturn >> 1999 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Compact Disc Player (CD) >> Diagrams >> CD Jumper Inline (M) >> Jumper Harness

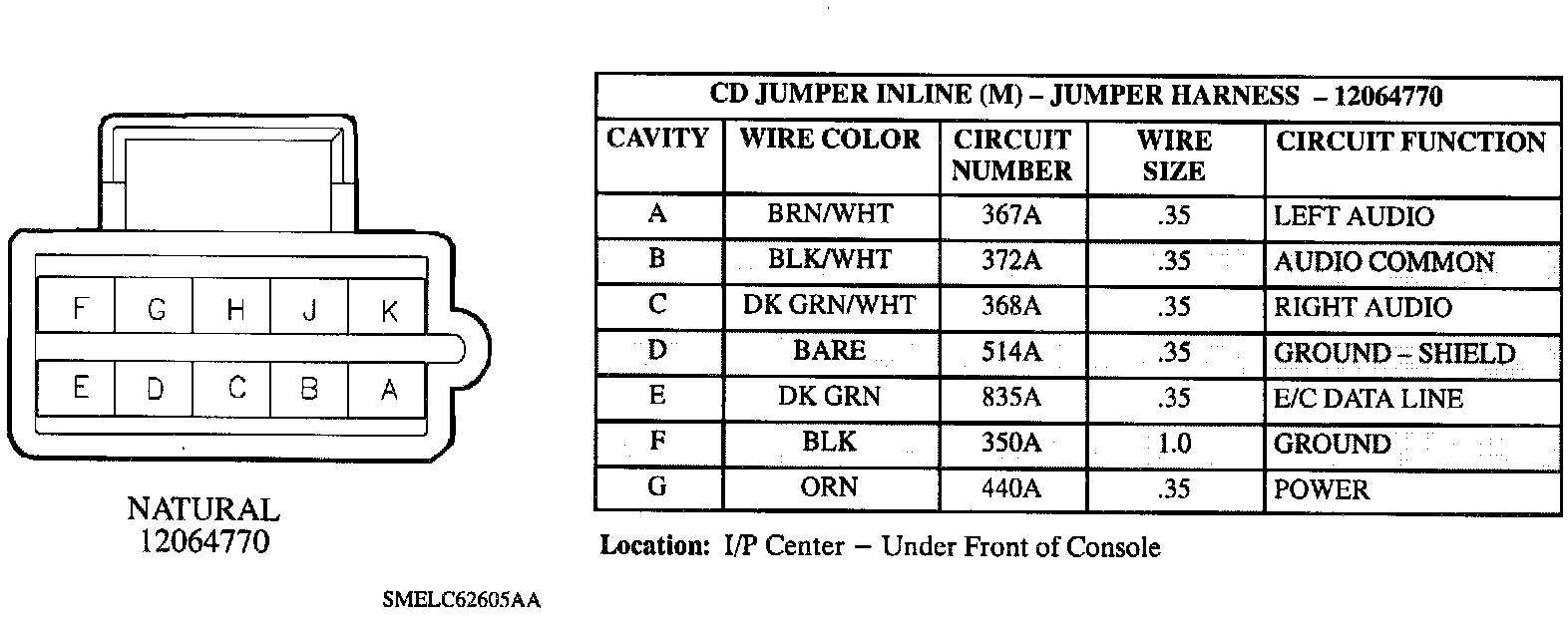

Jumper Harness

CD Jumper Inline (M) - Jumper Harness:
