Home >> Saturn >> 1999 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Charts - Symptoms >> Chart 4 - Lock Function Inoperative, Unlock Function Operate NORM

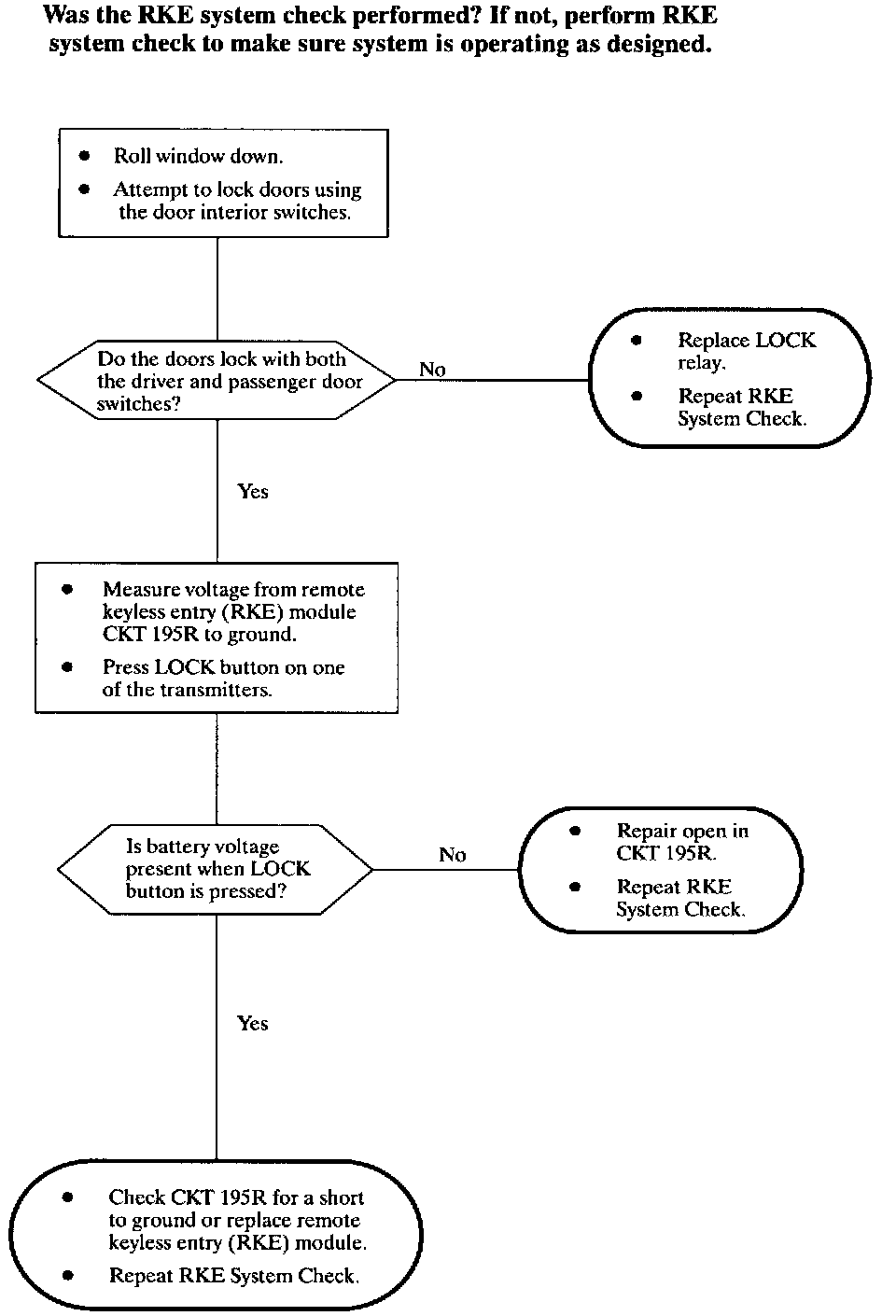

Chart 4 - Lock Function Inoperative, Unlock Function Operate NORM

Chart 4 Lock Function Inoperative, Unlock Function Operates Normally:
