Home >> Saturn >> 1999 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Diagrams >> Electrical Diagrams >> General

General

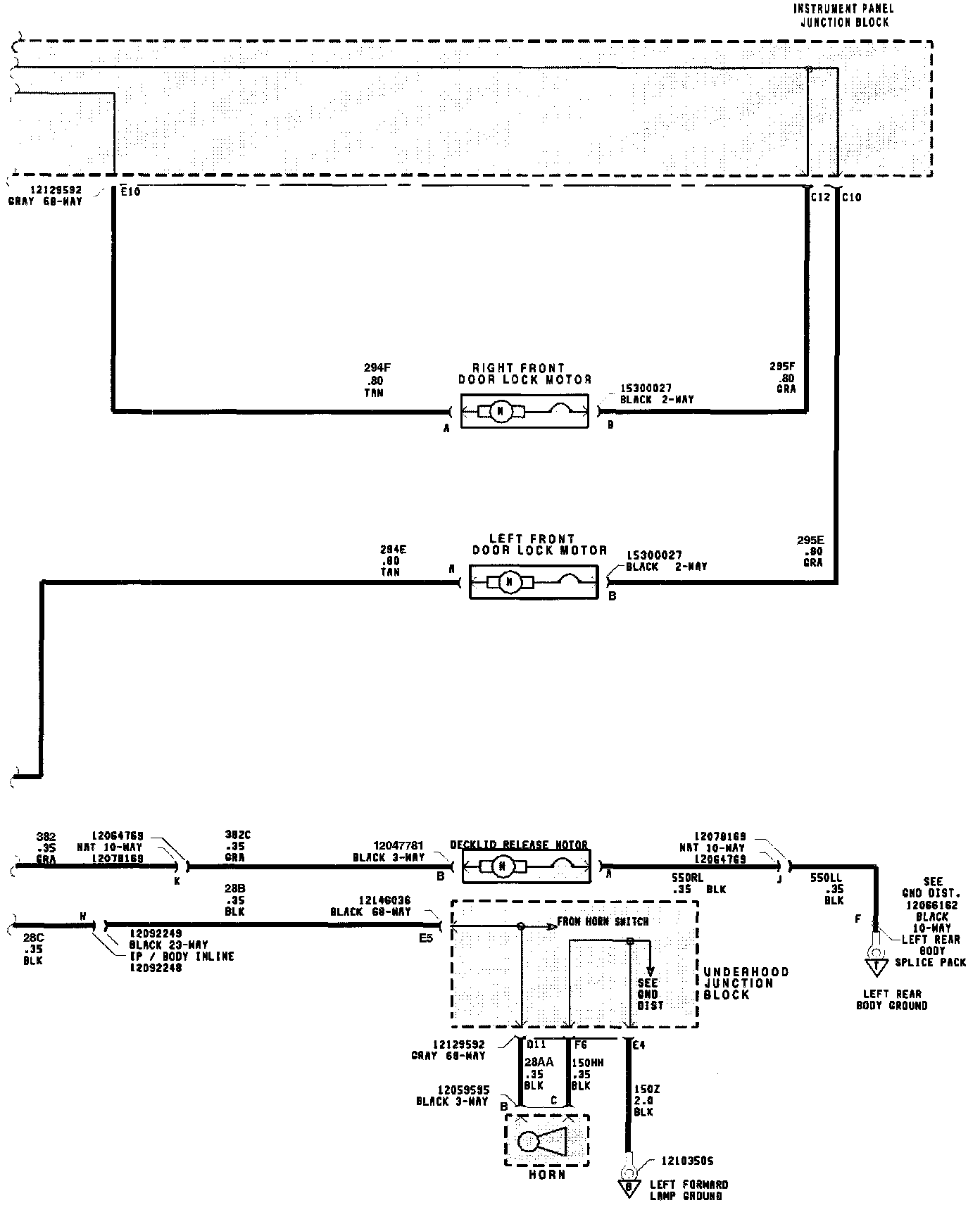

Remote Keyless Entry (RKE) And Security System:

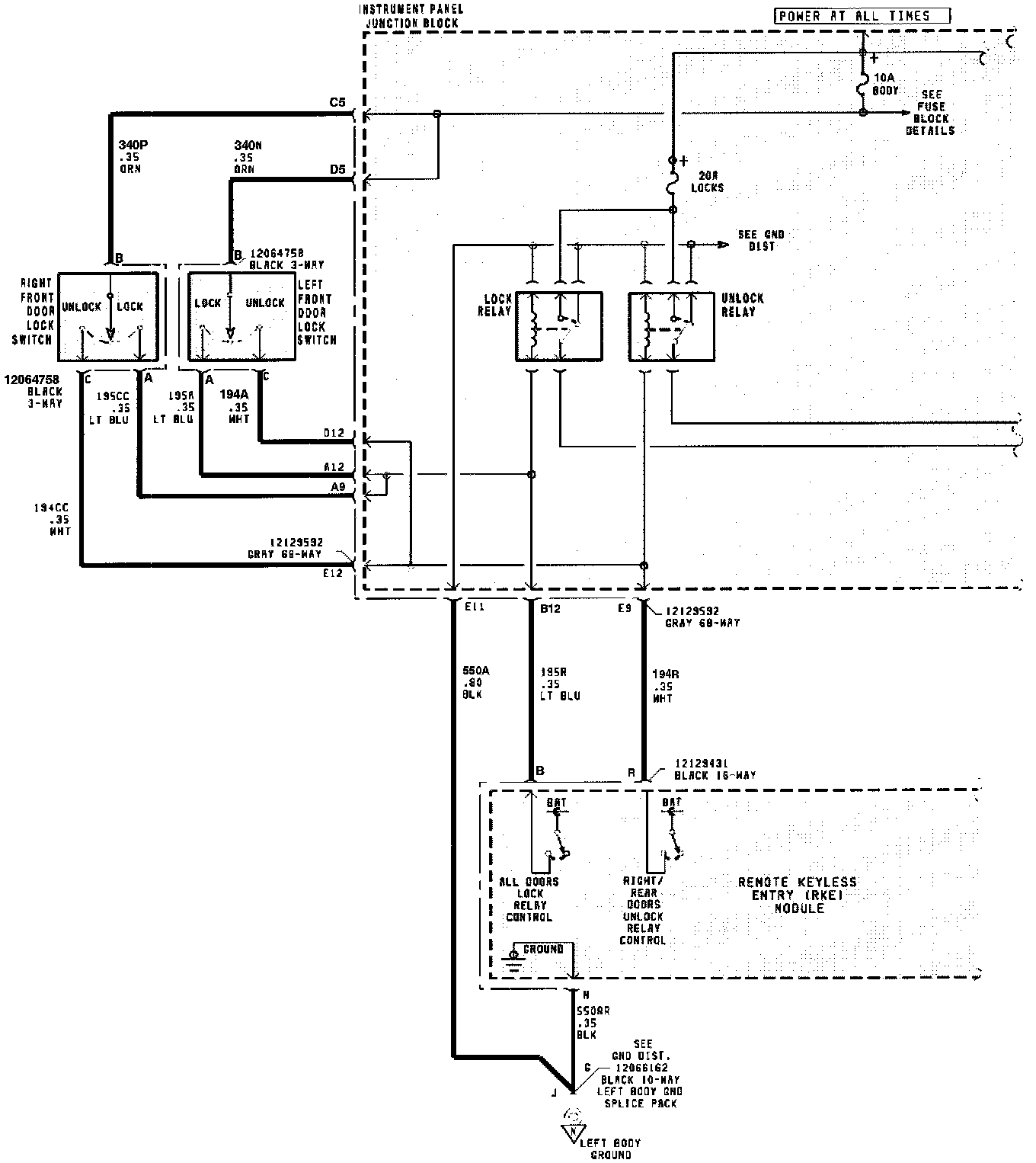

Remote Keyless Entry (RKE) And Security System:

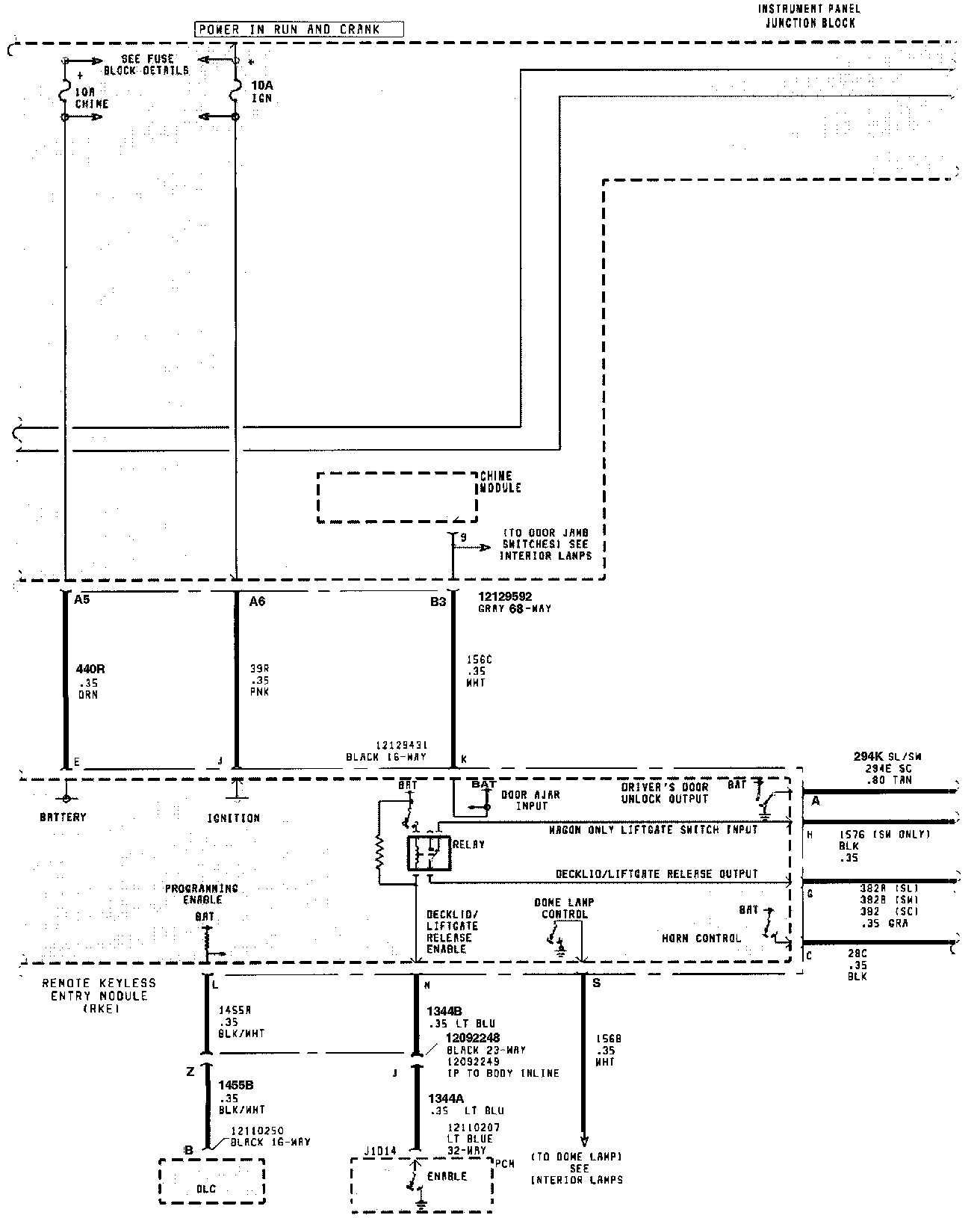

Remote Keyless Entry (RKE) And Security System:
