P0708

Diagnostic Chart:

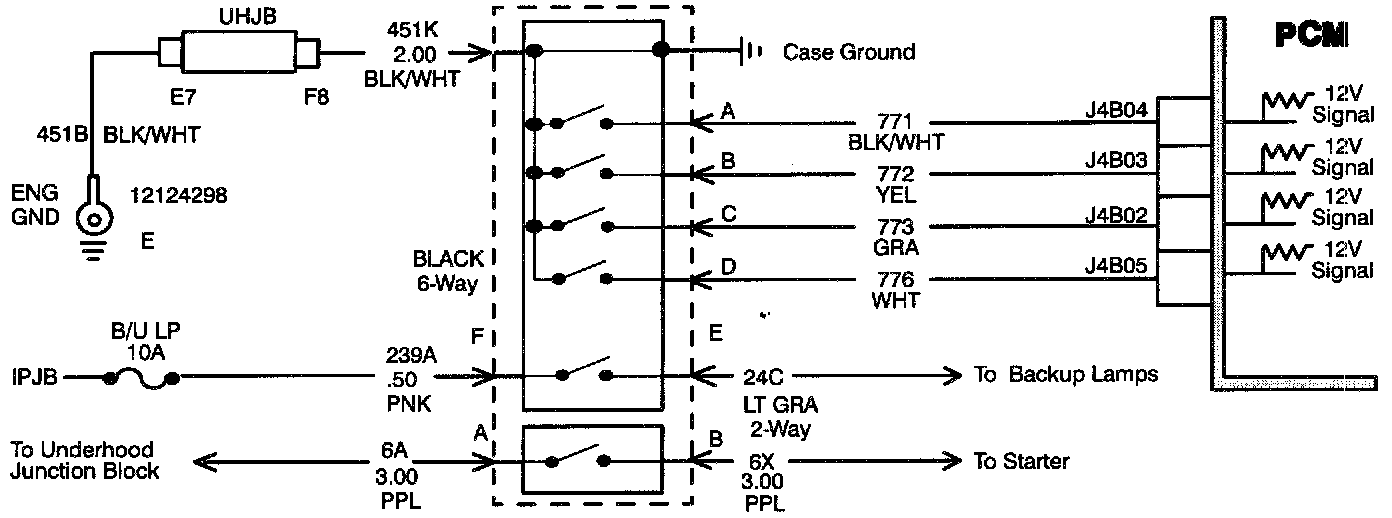

Wiring Diagram:

Description:

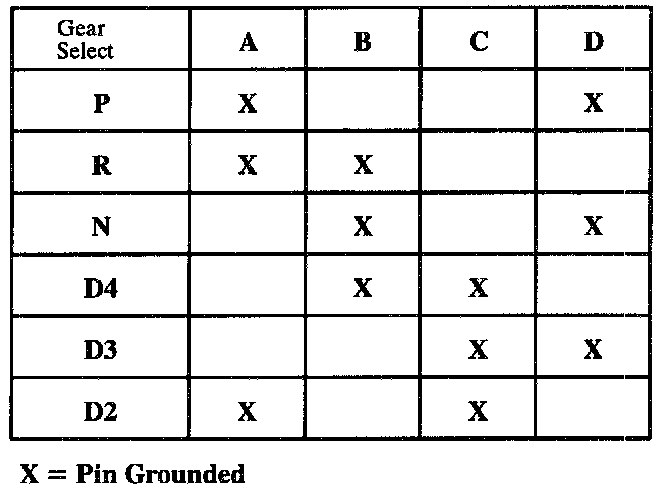

The gear selected is determined by combinations of opens and grounds in circuits 771, 772, 773, and 776 at the transaxle park/neutral position switch. Each combination indicates a specific selection in the manual shift quadrant (P R, N, D, 3, or 2). No data indicates that all four circuits are open at the same time.

DTC PARAMETERS
DTC P0708 is set when the PCM has detected all bits equal 12 volts; no switch circuits are pulled to ground, for longer than 500 milliseconds per ignition cycle

TEST DESCRIPTION

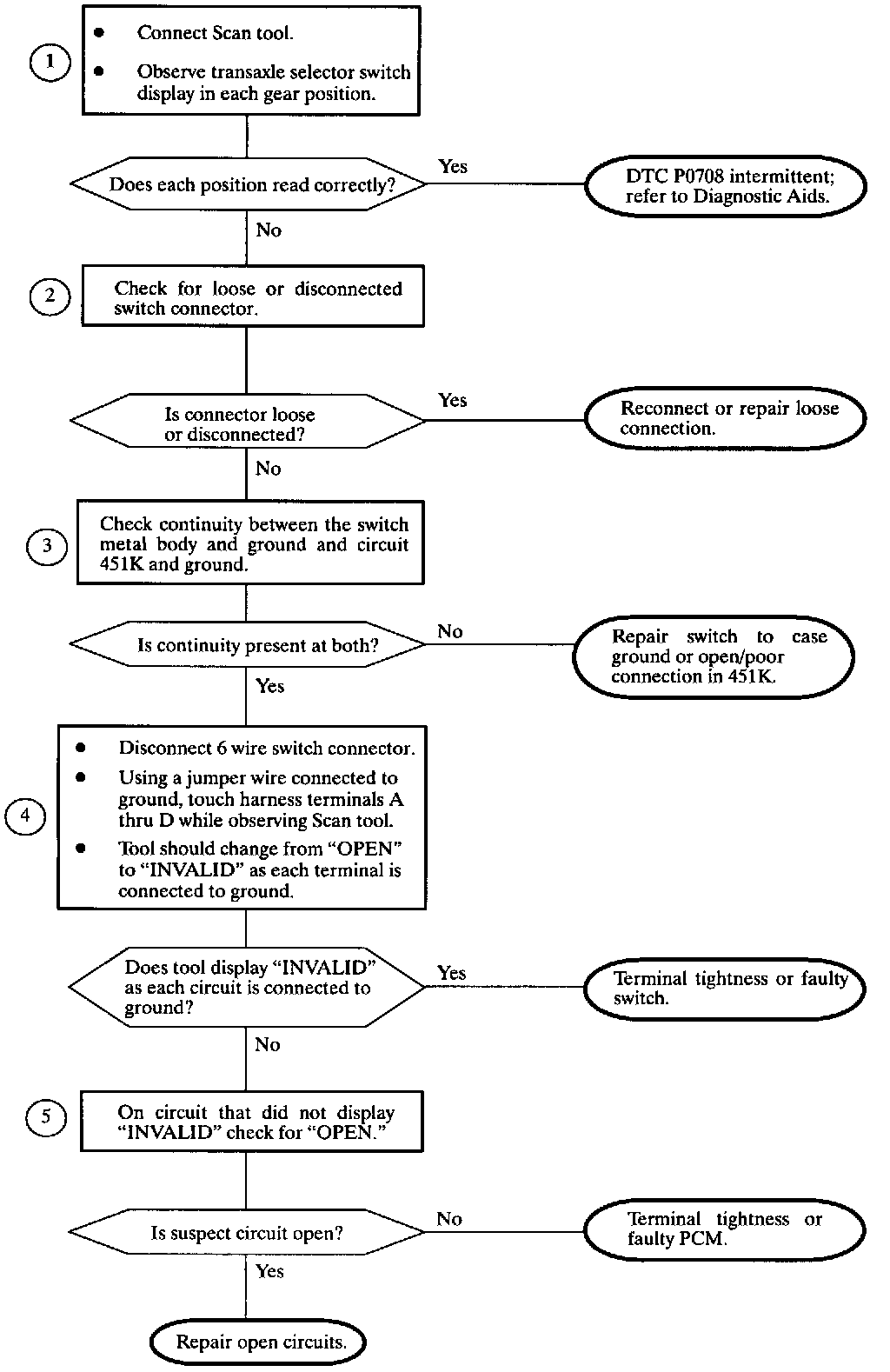

Numbered steps below refer to steps on chart.
1. This test verifies the conditions for DTC P0708 still exist.
2. A disconnected switch will set a DTC P0708.
3. The metal body of the switch needs to be grounded to the transaxle case. Circuit 451K is a redundant ground connected to the engine ground.
4. This test verifies the PCM, connections, and wiring to the switch. If all circuits are open, DTC P0708 will set. The PDT will display "OPEN" if all circuits are open, "GRDED" if all circuits are grounded, "INVALID" if an invalid bit pattern exists, or "P," "R," "N," "D," "3," or "2" if that valid bit pattern exists.
5. There should be 12 volts at each switch harness terminal from the PCM.

REPAIR VERIFICATION
Monitor DTC menu "Code Status" for "Pass Since Code Clear" and pass This Ignition Cycle." When both have passed, repair is verified.

Criteria for pass:
^ No active DTC set
^ Two valid selector positions decoded (must move shifter to obtain pass)

DIAGNOSTIC AIDS
This DTC will cause the transaxle to start out in 2nd gear.

Transaxle Park/Neutral Selector Switch
