P0452

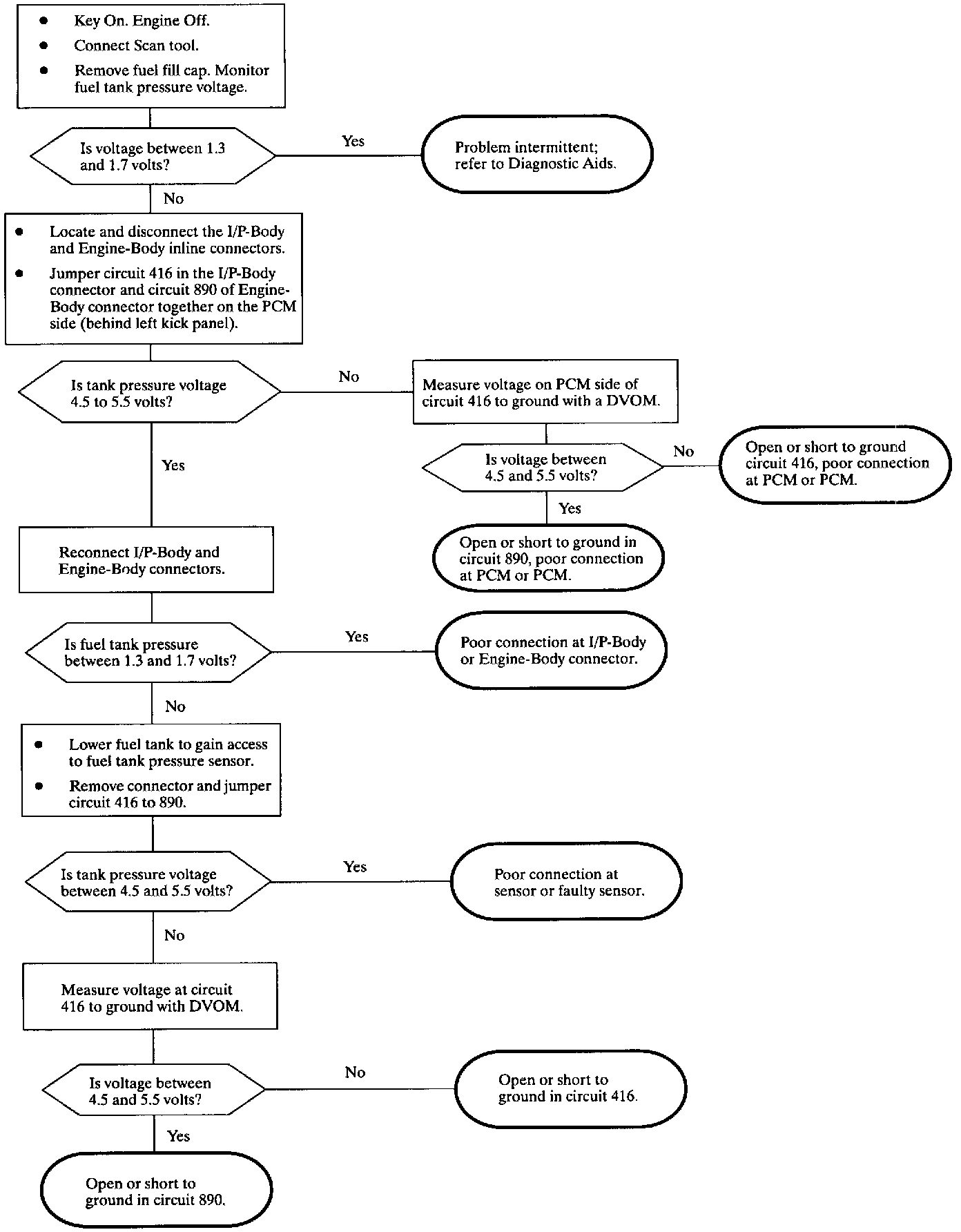

Diagnostic Chart:

Wiring Diagram:

The Tank Pressure Sensor is a three-wire strain gauge sensor that responds to changes in pressure in the fuel tank. The sensor measures the difference between the air pressure (or vacuum) in the fuel tank and the ambient air pressure. When air pressure in the fuel tank is equal to outside air pressure (i. e., fuel fill cap removed), the output of the sensor will be 1.3 to 1.7 volts.

DTC PARAMETERS
DTC P0452 will set if the signal voltage is below 0.1 volts for greater than 3 seconds.

DIAGNOSTIC AIDS
An intermittent open in the signal or 5V REF harnesses/connections will set a P0452. Intermittent connections can be diagnosed using a Scan tool by moving harnesses/connectors and harnesses while monitoring tank pressure voltage.
