P0140

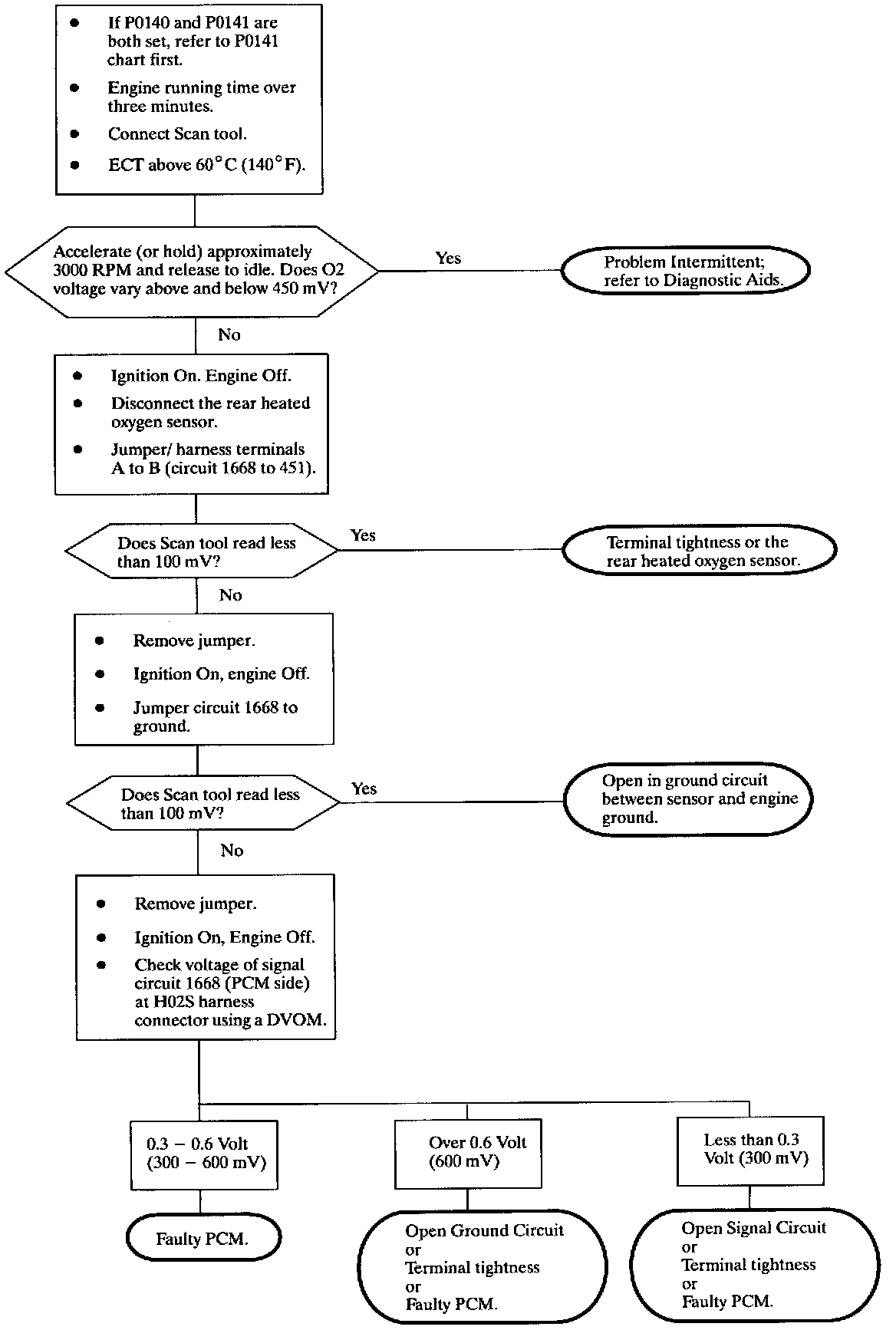

Diagnostic Chart:

Wiring Diagram:

The heated rear oxygen sensor (HO2S) consists of a zirconia electrolyte between two platinum plates. When the sensor reaches approximately 318°C (600°F) it becomes an electrical source that responds to the oxygen content in the exhaust. The PCM produces a bias voltage of approximately 450 millivolts on the oxygen sensor circuit. When the sensor is cold its internal resistance is extremely high, therefore, the PCM recognizes the bias as an open circuit. As the sensor warms up, the internal resistance decreases When the sensor reaches approximately 318°C (600°F), it starts producing a voltage based on the oxygen content in the exhaust stream.

DTC PARAMETERS
DTC P0140 will set if the HO2S voltage is between 391-491 mV for 90 seconds when:
^ The engine is at normal operating temperature (the ECT reads over 60°C [140°F]).
^ Engine run time is greater than one minute.
^ No other engine sensor or misfire DTCs have been set.
^ Commanded A/F ratio is approximately 14.7 to 1.

IMPORTANT: The HO2S signal is continuously checked once the above conditions have been met.

DIAGNOSTIC AIDS
If a P0141 (heater malfunction) is also set repair that code first. An inoperative heater may cause the sensor to cool down, which may cause the inactive DTC to set.

The PCM will not perform a catalyst monitor test if a DTC P0140 is set.

Normal Scan tool readings in closed loop will show the oxygen sensor voltage varying between 10mV and 999mV

DTC P0140 can set or cause false oxygen sensor readings if the oxygen sensor ground becomes loose. Refer to PCM and Engine Grounds in this manual.

IMPORTANT: Do not apply grease or any material in the HO2S connector or alter the wiring in any way. The wires carry reference air to the sensor used to determine the difference in oxygen from the exhaust gas to the PCM.
