P0123

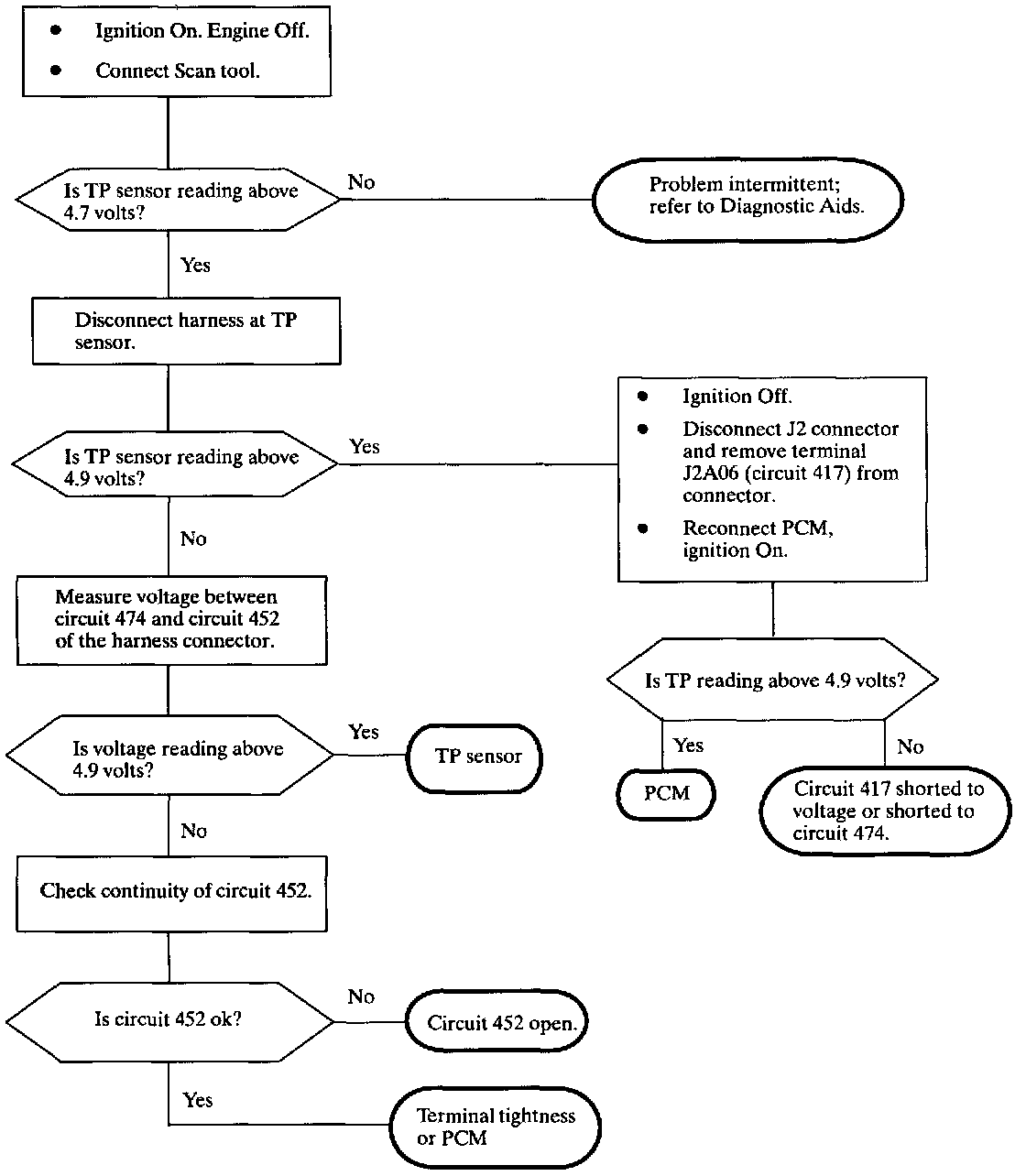

Diagnostic Chart:

Wiring Diagram:

The throttle position (TP) sensor is a variable resistor that is connected to a five volt reference source, a ground, and an input signal at the PCM. When the throttle blade is closed, the sensor input voltage will be low and increase as the throttle is opened. The TP sensor is mounted on the throttle body and connected to the throttle shaft which is controlled by accelerator movement.

DTC PARAMETERS
DTC P0123 will set if the PCM sees TP sensor voltage over 4.9 volts when:
^ Engine is running.
^ No other TP sensor DTCs have been set.

DIAGNOSTIC AIDS
Normal voltage readings should vary smoothly from 0.4 volts to 4.7 volts ±0.2 volts as the throttle is moved from closed to wide open position.
