P0108

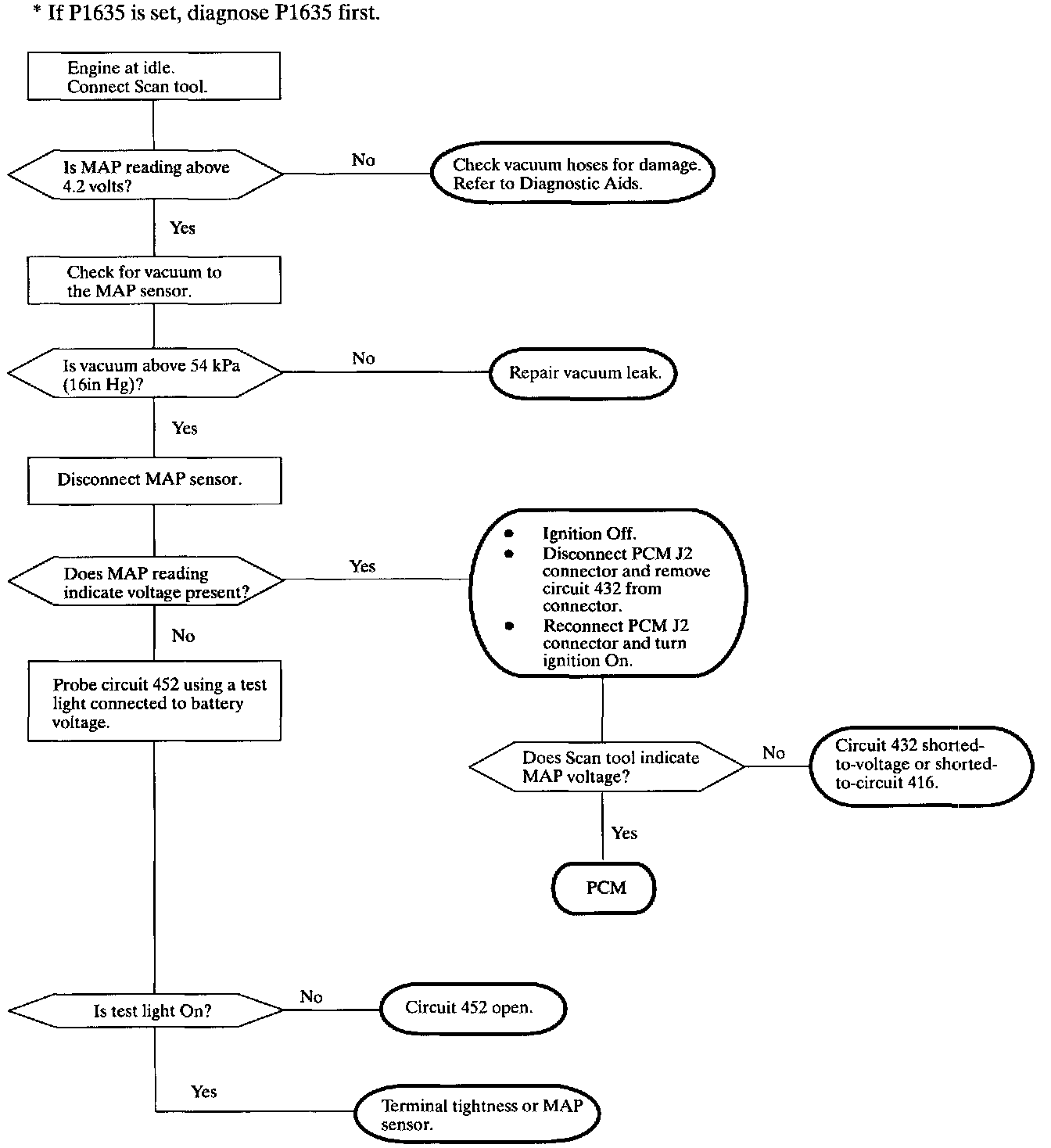

Diagnostic Chart:

Wiring Diagram:

Description:

The manifold absolute pressure (MAP) sensor is a variable resistor that responds to changes in manifold pressure (vacuum). The PCM measures the voltage drop across the MAP sensor. The voltage ranges from 1-1.5 volts at idle (high vacuum) to 4-4.5 volts at wide-open throttle (low vacuum).

DTC PARAMETERS
DTC P0108 will set if MAP is greater than 4.9 volts or (90kpa) when either:
1. Engine speed is greater than 1600 rpm, and
2. TP sensor is less than 70 percent, and
3. No TP sensor DTCs have been set. or
1. Engine speed is less than 1600 rpm, and
2. TP sensor is less than 50 percent, and
3. No TP sensor DTCs have been set.

IMPORTANT: MAP signal is continuously checked when engine is running.

DIAGNOSTIC AIDS

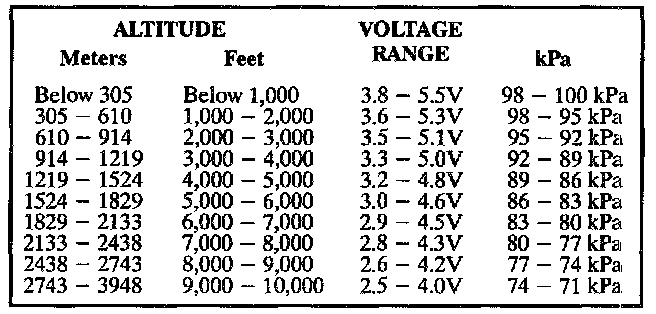

With the engine Off and key On the map reading should be the same as the barometric reading because manifold pressure is equal to atmospheric pressure (no vacuum - high voltage). Comparing this reading to a known good vehicle with the same sensor is a good way to check accuracy of a suspect sensor. Readings should be within 0.4 volts.
