DTC 92

When the wheel speed sensors indicate to the ABS control module that the vehicle is under braking, the ABS control module should receive voltage from the brake switch. If no voltage is received, ABS is disabled and the antilock telltale lamp will be turned On.

CODE PARAMETERS
Code 92 sets if:
^ Brake switch circuit is open during ABS stop.

This code can only set during an ADS stop.

DIAGNOSTIC AIDS
When attempting to diagnose an intermittent problem, use the Scan tool* to review supplemental diagnostic information. The supplemental data can be used to duplicate a problem.
* Select Malf History from Scan tool ABS menu.

Intermittents or opens suspected to be at the connectors can be detected by using a diagnostic service probe. Voltage can be read on wires without disconnecting any connectors.

Check the tightness of the female terminal grip with a spare male terminal.

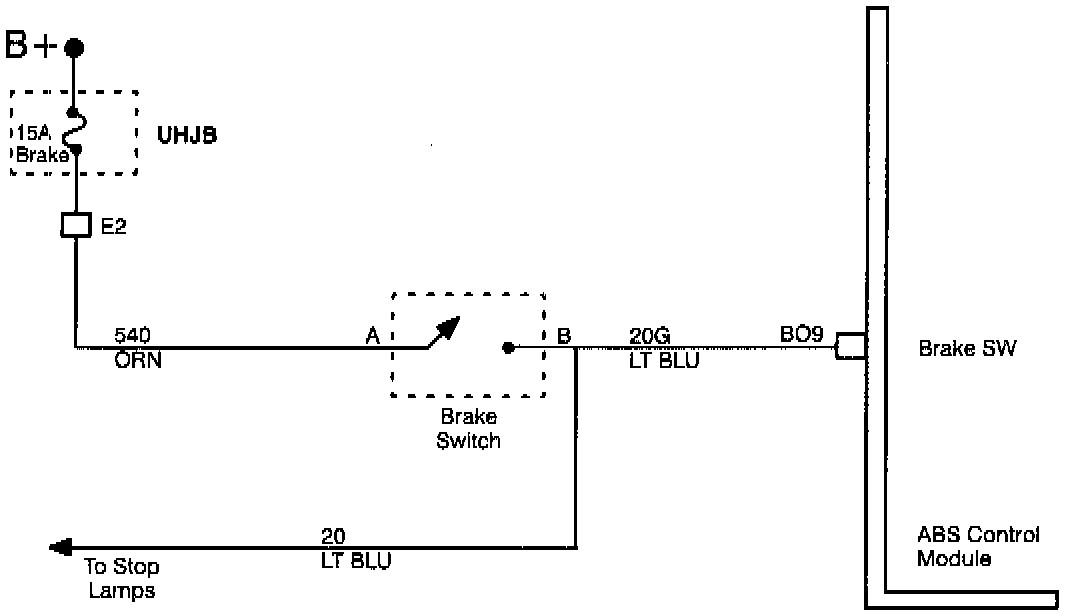

Brake switch is normally open. Depressing brake pedal completes (closes switch) the circuit.
