DTC 63









If a motor circuit is shorted to battery, ABS will be disabled and the antilock telltale lamp will be turned On.

CODE PARAMETERS
Code 63 sets if:

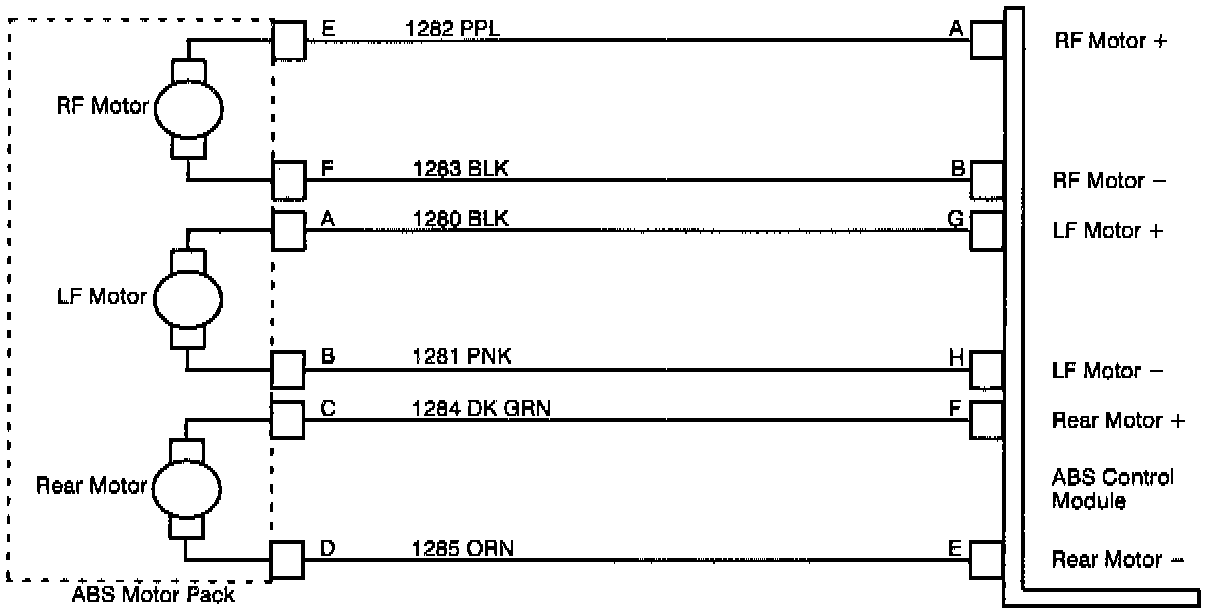

^ Right front motor circuit is shorted to B+.

This code can set at all times except when a previous failure has disabled ABS operation.

DIAGNOSTIC AIDS

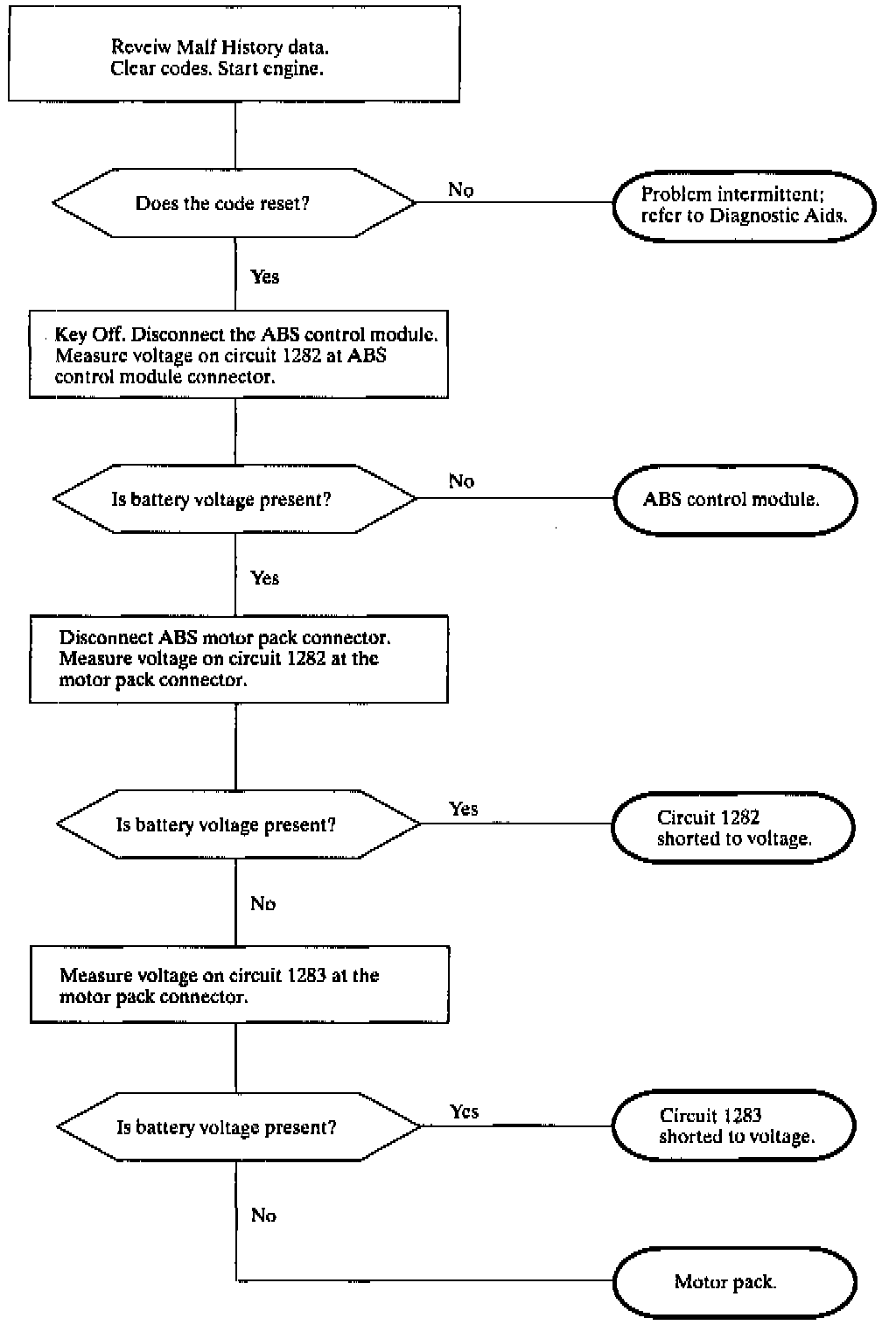

When attempting to diagnose an intermittent problem, use the Scan tool* to review supplemental diagnostic information. The supplemental data can be used to duplicate a problem.
* Select Malf History from Scan tool ABS menu.

Check the tightness of the female terminal grip with a spare male terminal.
