DTC 54

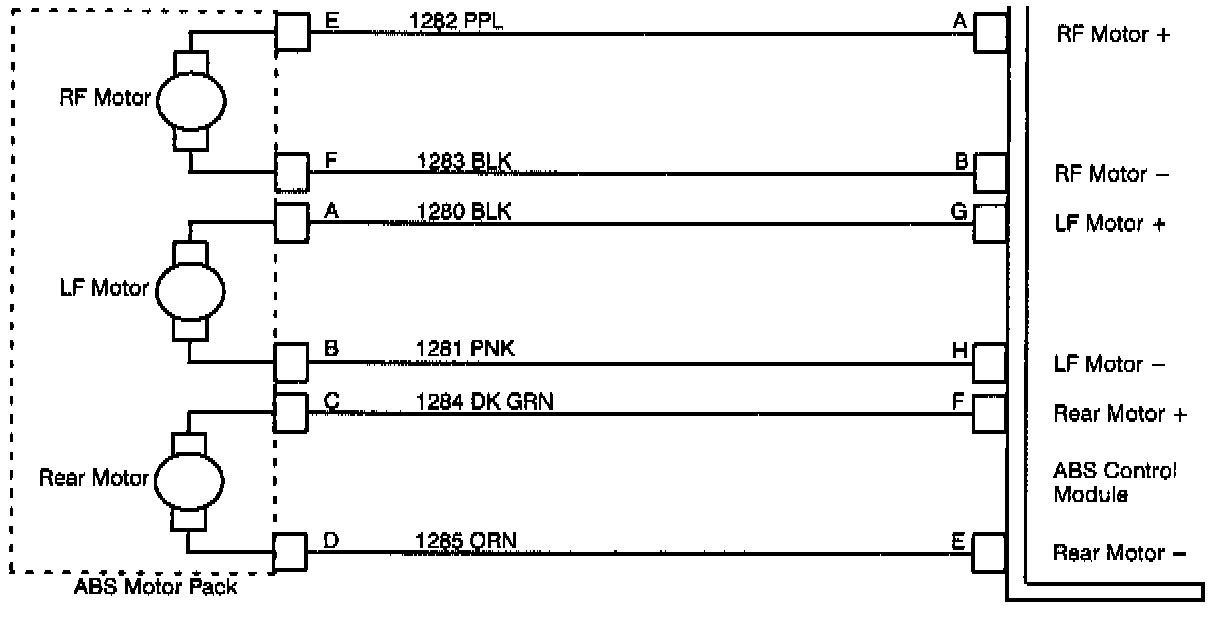

The ABS control module will command a current to any one motor for only three seconds. If the control module reaches this time limit, ABS will be disabled and the antilock telltale lamp will be turned On. The motors will re-home to ensure that full base brakes are available.

CODE PARAMETERS
Code 54 sets if:
^ Rear motor in release too long.

This code can only set during ABS braking.

It is possible to set this code in conjunction with codes 27 and 28 if wheel speed goes to zero while in an ABS stop.

DIAGNOSTIC AIDS
Check for ABS codes 23, 27, or 28. If present, diagnose these codes first.

This code will set if the ABS system cannot relieve enough brake pressure to allow a wheel to regain speed during an ABS stop or if a mechanical failure has caused a wheel to seize.

Possible causes:
^ Wheel is mechanically frozen
^ Car skids sideways during an ABS stop

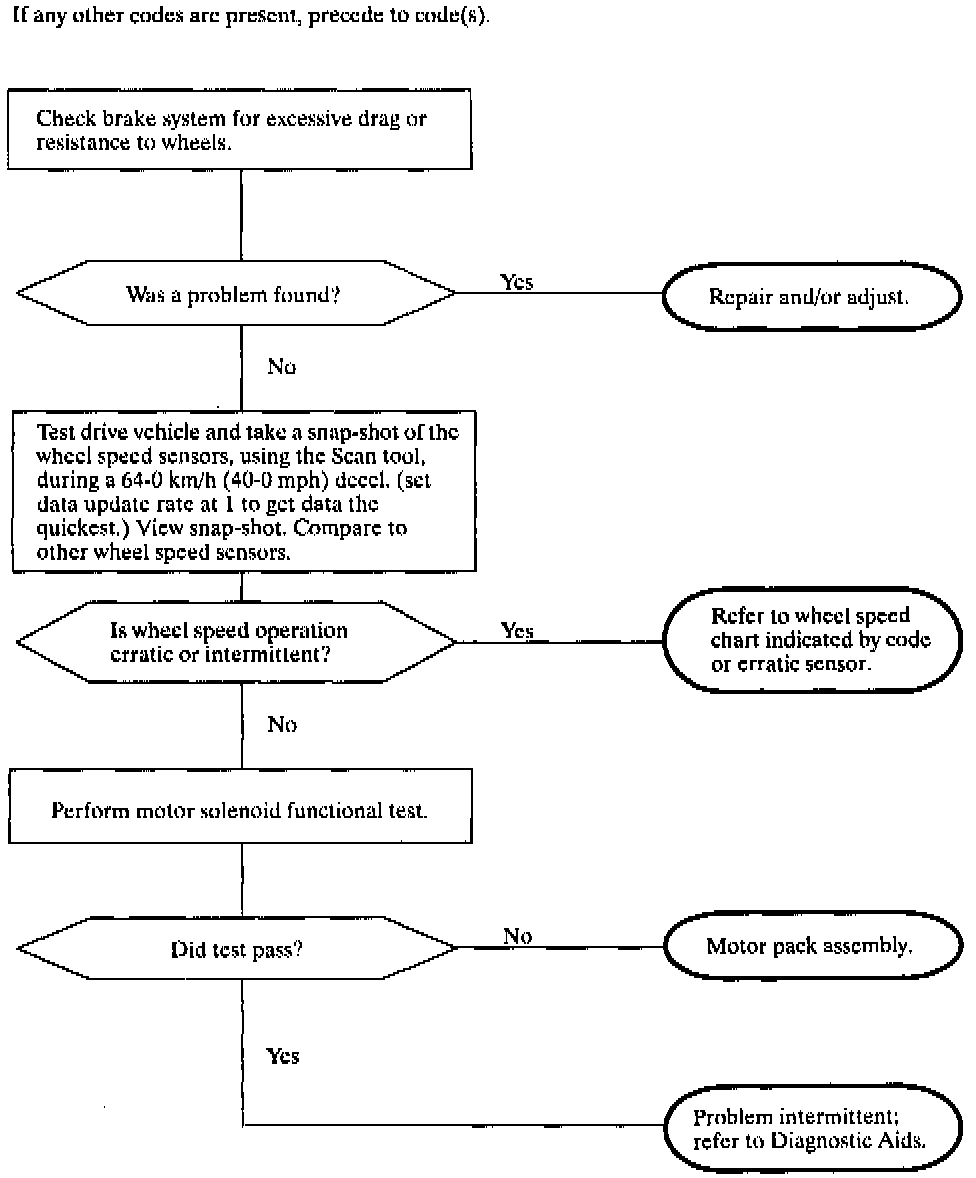

Use the service stall system motors and solenoids functional test to check ABS system operation.
